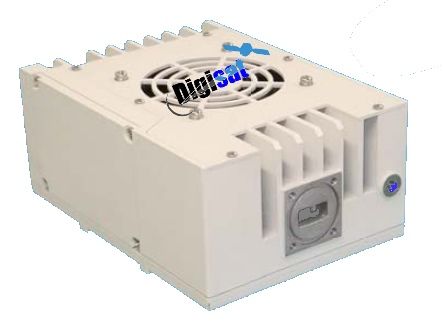

New Japan Radio NJRC NJT8319N 16 Watt Compact Ku-Band Block Upconverter (BUC)
Covers Ku-band frequencies from 14.00 to 14.50 GHz in respective configurations, Type-N RF input
NJT8319N 16 Watt Compact Ku-Band Block Upconverter (BUC)
The NJRC NJT8319N series BUC is an ultra compact block upconverter that provides up to +42 dBM of Linear RF output power for use on Ku-band satellite networks (14.00 to 14.5 GHz).. This compact 16W Ku-Band BUC offers easy installation and setup. The NJT8319N also includes provisions for a separate AC power supply that accepts input voltages from 90V to 240 VAC.
Features
High Temperature Operating
Operation Temperature Range: -40 to +75 degree C RF Frequency Line-up- Universal Ku-band: Standard Ku-band: 14.0 to 14.5 GHz High Efficiency Output Power
16W Model- P1dB: +42 dBm min. over temperature, Power Consumption: 170 W max., IM3: -28 dBc @ Pout <= +39 dBm FSK Modulation M&C Option Smallest Size & Lightest Weight- Dimension: 180 (L) x 130 (W) x 80 (H) mm, Weight: 2.4 kg
Part Number Configurations
Outline Dimensions
AC Power Supply Unit
The NJT8319N series BUC is also available with an optional AC power supply unit that accepts voltages from 90 to 240 VAC. The optional separate power supply ensures that the NJT8319N BUC will receive optimum input power levels during high amperage draw situations, such as when transmitting at near full power rating of +39 dBm.
Input AC Voltage Range: 90 to 240 V, 300 VA, +48 V typ. 200 W
Operating: -40 to +55 C -40 to +75 C
Dimensions: 186 (L) x 133 (W) x 60 (H) mm [7.32” (L) x 5.24” (W) x 2.36” (H)]without interface connector and screws
Weight 1.6 kg max. [3.5 lbs]
Power Supply Outline Drawing
Configuration Chart
|
Model# |
RF Frequency |
Local Frequency |
IF Frequency |
Output Power @P1dB |
IF Connector |
Port for Voltage Input |
Power Supply |
M&C Option |
|
NJT8319N |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,450 MHz |
16W Linear (+42 dBm min.) |
N-type |
Same as IF Connector |
+36 to +60 V DC Power |
N/A |
|
NJT8319F |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,450 MHz |
16W Linear (+42 dBm min.) |
F-type |
Same as IF Connector |
+36 to +60 V DC Power |
N/A |
|
NJT8319NM |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,450 MHz |
16W Linear (+42 dBm min.) |
N-type |
MS Connector (Separate Port) |
+36 to +60 V DC Power |
N/A |
|
NJT8319FM |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,450 MHz |
16W Linear (+42 dBm min.) |
F-type |
MS Connector (Separate Port) |
+36 to +60 V DC Power |
N/A |
|
NJT8319NK |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,450 MHz |
16W Linear (+42 dBm min.) |
N-type |
Same as IF Connector |
+36 to +60 V DC Power |
FSK Communication M&C |
|
NJT8319Fk |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,450 MHz |
16W Linear (+42 dBm min.) |
F-type |
Same as IF Connector |
+36 to +60 V DC Power |
FSK Communication M&C |
|
NJT8319NMK |
14.0 to 14.5 GHz(Standard Ku-band) |
13.05 GHz |
950 to 1,700 MHz |
16W Linear (+42 dBm min.) |
N-type |
MS Connector (Separate Port) |
+36 to +60 V DC Power |
FSK Communication M&C |
|
NJT8319FMK |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,700 MHz |
16W Linear (+42 dBm min.) |
F-type |
MS Connector (Separate Port) |
+36 to +60 V DC Power |
FSK Communication M&C |
|
NJT8319UN |
13.75 to 14.5 GHz (Universal Ku-band) |
12.80 GHz |
950 to 1,700 MHz |
16W Linear (+42 dBm min.) |
N-type |
Same as IF Connector |
+36 to +60 V DC Power |
N/A |
|
NJT8319UF |
13.75 to 14.5 GHz (Universal Ku-band) |
12.80 GHz |
950 to 1,700 MHz |
16W Linear (+42 dBm min.) |
F-type |
Same as IF Connector |
+36 to +60 V DC Power |
N/A |
|
NJT8319UNM |
13.75 to 14.5 GHz (Universal Ku-band) |
12.80 GHz |
950 to 1,700 MHz |
16W Linear (+42 dBm min.) |
N-type |
MS Connector (Separate Port) |
+36 to +60 V DC Power |
N/A |
|
NJT8319UFM |
13.75 to 14.5 GHz (Universal Ku-band) |
12.80 GHz |
950 to 1,700 MHz |
16W Linear (+42 dBm min.) |
F-type |
MS Connector (Separate Port) |
+36 to +60 V DC Power |
N/A |
|
NJT8319UNK |
13.75 to 14.5 GHz (Universal Ku-band) |
12.80 GHz |
950 to 1,700 MHz |
16W Linear (+42 dBm min.) |
N-type |
Same as IF Connector |
+36 to +60 V DC Power |
FSK Communication M&C |
|
NJT8319UFK |
13.75 to 14.5 GHz (Universal Ku-band) |
12.80 GHz |
950 to 1,700 MHz |
16W Linear (+42 dBm min.) |
F-type |
Same as IF Connector |
+36 to +60 V DC Power |
FSK Communication M&C |
|
NJT8319UNMK |
13.75 to 14.5 GHz (Universal Ku-band) |
12.80 GHz |
950 to 1,700 MHz |
16W Linear (+42 dBm min.) |
N-type |
MS Connector (Separate Port) |
+36 to +60 V DC Power |
FSK Communication M&C |
|
NJT8319UFMK |
13.75 to 14.5 GHz (Universal Ku-band) |
12.80 GHz |
950 to 1,700 MHz |
16W Linear (+42 dBm min.) |
F-type |
MS Connector (Separate Port) |
+36 to +60 V DC Power |
FSK Communication M&C |
|
Output Power @ 1dB G.C.P. (P1dB) |
8 Watt 8318: +39 dBm min. over temperature |
16 Watt 8319: +42 dBm min. over temperature |
||
|
Linear Gain |
65 dB nom., 59 dB min. |
68 dB nom., 62 dB min. |
||
|
Gain Variation over frequency Standard Ku-band: |
5 dBp-p max. over 500 MHz / 2 dBp-p max. over 36 MHz |
|||
|
Universal Ku-band: |
5 dBp-p max. over 750 MHz / 2 dBp-p max. over 36 MHz |
|||
|
Gain Stability over temperature |
2 dBp-p typ., 5 dBp-p max. |
|||
|
IM3 |
-28 dBc typ., -24 dBc max. |
|||
|
|
@ total power ≦ Pout – 3dB |
|||
|
ACPR |
-28 dBc typ. @ Pout ≦ Pout – 1dB |
|||
|
L.O. Phase Noise |
-60 dBc/Hz max. @ 100 Hz |
|||
|
|
-70 dBc/Hz max. @ 1 kHz |
|||
|
|
-80 dBc/Hz max. @ 10 kHz |
|||
|
|
-90 dBc/Hz max. @ 100 kHz |
|||
|
|
-100 dBc/Hz max. @ 1 MHz |
|||
|
Input V.S.W.R. |
2 : 1 max. |
|||
|
Output V.S.W.R. |
2 : 1 max. |
|||
|
DC Power Requirement (1) Voltage Range |
+18 to +60 VDC +36 to +60 VDC |
|||
|
(2) Power Consumption @ No IF Signal |
65 W typ. |
140 W typ. |
||
|
@ P1dB |
90 W max. |
170 W max. |
||
|
Mute |
|
Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal |
||
|
LED Indicator |
|
GREEN: L.O. locked / RED: L.O. unlocked (or no 10 MHz reference signal) |
||
|
M&C Function |
|
FSK Modulation M&C: Power Monitor / TX On/Off Control / Alarm … etc |
||
|
Temperature Range (ambient) |
Operating: |
-40 to +75 C (Operation Guarantee) |
||
|
|
|
-40 to +55 C (Performance Guarantee) |
||
|
|
Storage: |
-40 to +75 C |
||
|
Dimension & Housing |
|
180 (L) x 130 (W) x 80 (H) mm [7.09” (L) x 5.12” (W) x 3.15” (H)] |
||
|
|
|
without interface connector and screws |
||
|
Weight |
|
2.4 kg max. [5.3 lbs max.] |
||
Ku-Band Satellite Networks, VSAT systems, Maritime Communications, Satellite Internet Access Services
