SKU
NJT-5218FA
New Japan Radio NJRC NJT5218FA 8W Ku-Band (13.75 to 14.5 GHz) Block Upconverter (BUC) is available to buy in increments of 1

DC Power supplied by AC/DC PSU, operates in Ku-band frequencies from 13.75 to 14.5 GHz, F-connector input, power insertion on MS connector

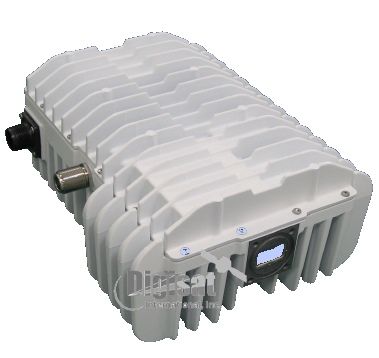

NJT5218FA 8 Watt Ku-Band (13.75 to 14.5 GHz) Block Upconverter (BUC)

The New Japan Radio NJRC NJT5218FA series BUC is a compact outdoor block upconverter that provides up to +39 dBM (8 Watts) of Linear RF output power for use on Ku-band satellite networks (13.75 to 14.5 GHz)..  This compact 8W Ku-Band BUC offers easy installation and setup. The NJT5218FA also includes provisions for a separate AC power supply that accepts input voltages from 90V to 240 VAC.

 njt5218 8 watt ku-band buc power supply configuration

Features

 F-Connector RF Input

 Ku-band Coverage:  RF Frequency: 13.75 to 14.50 GHz

 DC Power supplied by AC/DC PSU

 High Efficiency & Low Distortion: P1dB: +39 dBm min. over temperature, IM3:-28 dBc @ Pout = +36 dBm, Power Consumption: 79W

 Wider Input Voltage Range: Voltage Range: +18 to +60 VDC

 AC Powr Operating Option

 Compact Size & Light Weight: Weight: 3.2 kg

 LED Indicator Equipped

 RoHS Compliance



Outline Dimensions

njrc njt5218 8W BUC dimensions



BUC Configuration Chart

Model#

RF Frequency

Local Frequency

IF Frequency

Output Power @P1dB

IF Connector

Power Supply

NJT5118N

14.0 to 14.5 GHz (Standard Ku-band)

13.05 GHz

950 to 1,450 MHz

8W Linear (+39 dBm min.)

N-type

DC Power applied on IF Connector

NJT5118F

14.0 to 14.5 GHz (Standard Ku-band)

13.05 GHz

950 to 1,450 MHz

8W Linear (+39 dBm min.)

F-type

DC Power applied on IF Connector

NJT5118NM

14.0 to 14.5 GHz (Standard Ku-band)

13.05 GHz

950 to 1,450 MHz

8W Linear (+39 dBm min.)

N-type

DC Power applied on MS Connector

NJT5118FM

14.0 to 14.5 GHz (Standard Ku-band)

13.05 GHz

950 to 1,450 MHz

8W Linear (+39 dBm min.)

F-type

DC Power applied on MS Connector

NJT5118NA

14.0 to 14.5 GHz (Standard Ku-band)

13.05 GHz

950 to 1,450 MHz

8W Linear (+39 dBm min.)

N-type

DC Power supplied by AC/DC PSU

NJT5118FA

14.0 to 14.5 GHz (Standard Ku-band)

13.05 GHz

950 to 1,450 MHz

8W Linear (+39 dBm min.)

F-type

DC Power supplied by AC/DC PSU

NJT5218N

13.75 to 14.5 GHz (Universal Ku-band)

12.8 GHz

950 to 1,700 MHz

8W Linear (+39 dBm min.)

N-type

DC Power applied on IF Connector

NJT5218F

13.75 to 14.5 GHz (Universal Ku-band)

12.8 GHz

950 to 1,700 MHz

8W Linear (+39 dBm min.)

F-type

DC Power applied on IF Connector

NJT5218NM

13.75 to 14.5 GHz (Universal Ku-band)

12.8 GHz

950 to 1,700 MHz

8W Linear (+39 dBm min.)

N-type

DC Power applied on MS Connector

NJT5218FM

13.75 to 14.5 GHz (Universal Ku-band)

12.8 GHz

950 to 1,700 MHz

8W Linear (+39 dBm min.)

F-type

DC Power applied on MS Connector

NJT5218NA

13.75 to 14.5 GHz (Universal Ku-band)

12.8 GHz

950 to 1,700 MHz

8W Linear (+39 dBm min.)

N-type

DC Power supplied by AC/DC PSU

NJT5218FA

13.75 to 14.5 GHz (Universal Ku-band)

12.8 GHz

950 to 1,700 MHz

8W Linear (+39 dBm min.)

F-type

DC Power supplied by AC/DC PSU

Item

Specifications

Output Interface

Waveguide, WR75 (with Groove)

Input Interface

N-type, female (50 ohm)[Model No.: NJT5118N/18NM/18NA - NJT5218N/18NM/18NA]

F-type, female (75 ohm)[Model No.: NJT5118F/18FM/18FA - NJT5218F/18FM/18FA]

Output Power @ 1dB G.C.P.

+39 dBm min. over temperature

Linear Gain

59 dB min.

Power Requirement

+24 / +48 VDC (+18 to +60 VDC) [DC Power Oparating][Model No.: NJT5118N/18F/18NM/18FM - NJT5218N/18F/18NM/18FM]

90 to 264 VAC [AC Power Oparating][Model No.: NJT5118NA/18FA - NJT5218NA/18FA]

Power Consumption

79 W typ., 93 W max.

Port for Voltage Input

Same as IF Connector[Model No.: NJT5118N/18F - NJT5218N/18F]

MS Connector (Separate Port)[Model No.: NJT5118NM/18FM - NJT5218NM/18FM]

IF Connector supplied by 150W AC/DC PSU throught IF Cable[Model No.: NJT5118NA/18FA - NJT5218NA/18FA]

Weight

3.2 kg [7.0 lbs]

Ku-Band Satellite Networks, VSAT systems, Maritime Communications, Satellite Internet Access Services
