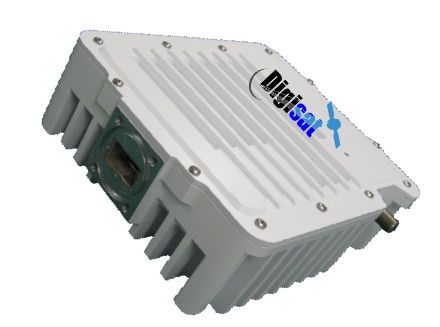

New Japan Radio NJRC NJT5207N 4 Watt Ku-Band (13.75 to 14.5 GHz) Block Upconverter (BUC)

NJRC NJT5207F 4W Ku-Band BUC

NJRC NJT5207F 4 Watt Ku-Band (13.75 to 14.5 GHz) Block Upconverter (BUC)

Login To See Price
SKU
NJT-5207N
New Japan Radio NJRC NJT5207N 4 Watt Ku-Band (13.75 to 14.5 GHz) Block Upconverter (BUC) is available to buy in increments of 1

Operates in Ku-band frequencies from 13.75 to 14.5 GHz, Type-N input

NJRC NJT5207N 4 Watt Ku-Band (13.75 to 14.5 GHz) Block Upconverter (BUC)

The NJRC NJT5207N series BUC is an compact outdoor block upconverter that provides up to +36.0 dBM (4 Watts) of Linear RF output power for use on Ku-band satellite networks (13.75 to 14.5 GHz). This compact 4W Ku-Band BUC offers easy installation and setup.

Features

High Efficiency Output Power (P1dB):

Type "N" RF Input

+36.0 dBm min. over temperature

Lower Power Consumption

Small Size & Light Weight

LED Indicator Equipped

RoHS Compliance


Outline Dimensions

njrc njt5207 4W BUC dimensions



Configuration Chart



Model#

RF Frequency

Local Frequency

IF Frequency

Output Power @P1dB

IF Connector

NJT5207N

13.75 to 14.5 GHz (Universal Ku-band)

12.8 GHz

950 to 1,700 MHz

4W Linear (+36 dBm min.)

N-type

NJT5207F

13.75 to 14.5 GHz (Universal Ku-band)

12.8 GHz

950 to 1,700 MHz

4W Linear (+36 dBm min.)

F-type

NJT5307N

14.0 to 14.5 GHz (Standard Ku-band)

13.05 GHz

950 to 1,450 MHz

4W Linear (+36 dBm min.)

N-type

NJT5307F

14.0 to 14.5 GHz (Standard Ku-band)

13.05 GHz

950 to 1,450 MHz

4W Linear (+36 dBm min.)

F-type

Item

Specifications

Output Interface

Waveguide, WR75 (with Groove)

Input Interface

N-type, female (50 ohm)[Model No.: NJT5207N & NJT5307N]

F-type, female (75 ohm)[Model No.: NJT5207F & NJT5307F]

Output Power @ 1dB G.C.P.

+36 dBm min. over temperature

Linear Gain

56 dB nom.

Power Requirement

+24 VDC (+15 to +30 VDC)

Power Consumption

37 W max.

Weight

1.7 kg [3.7 lbs]

Ku-Band Satellite Networks, VSAT systems, Maritime Communications, Satellite Internet Access Services
