Quintech Nexus-4 Universal Non-Blocking Bi-Directional Matrix Switch
700 to 2800 MHz, Passive Non-Blocking Bi-Directional
Nexus-4 Universal Non-Blocking Bi-Directional matrix Switch
The Quintech Nexus-4 is a passive, universal, bi-directional, full fan-in/fan-out matrix switching system that provides a complete 32x32 matrix in a single 7 RU box. The matrix is bi-directional in that any of the 8 ports A or B can be routed to any or all of 32 possible ports B or A. It provides continuous operation over the frequency range 700-4000 MHz and is ideal for testing wireless communication technologies such as LTE, 4G, Wifi, and Mesh Network Test-bed applications. All active components, including RF matrix cards and power supply, are field replaceable. Multiple modules can be combined to create larger matrices. The Quintech Nexus-4 provides up to 60 dB of attenuation at each crosspoint and RF sensing at one set of ports (50 dB range).

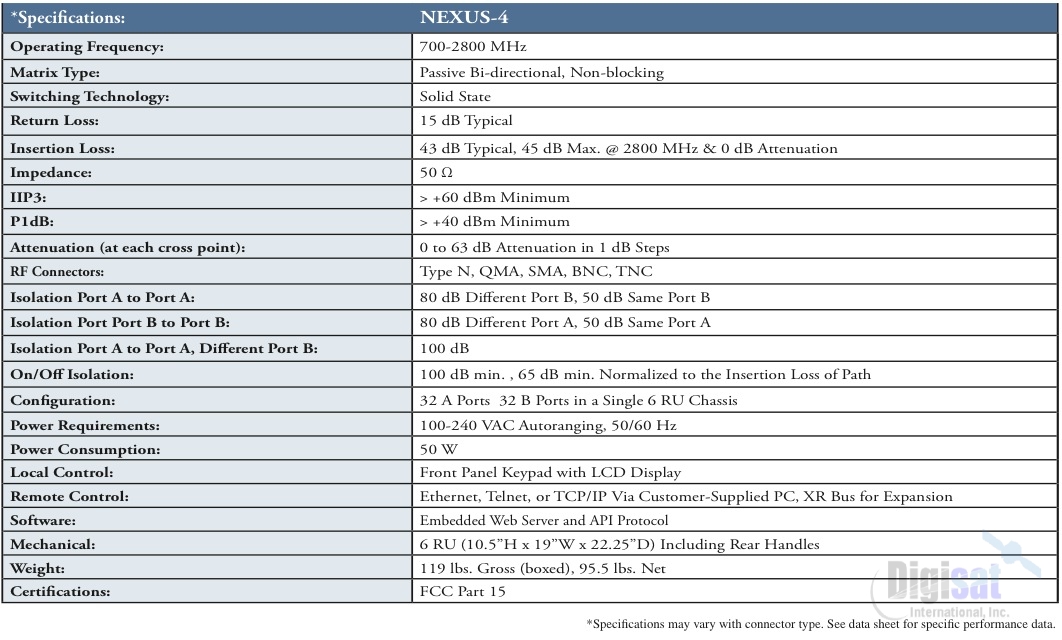

Features
- Any-to-any connections, 32x32 ports has 1024 connections, each with 0-63 dB programmable attenuators
- Designed for use in LTE, 4G, Wifi, and Mesh Network Test-bed applications
- Wide operating frequency range covers 700 MHz -4000 MHz
- 3.5 GHz CBRS Band compatible
- Any to any connections, 32x32 ports has 1024 connections, each with 0-63 dB programmable attenuators
- Automate testing process by replacing cumbersome patch panels
- High performance to meet signal specifications in lab environment
Continuous operation over the frequency range 700-4000 MHz
