Newtec Satcom AZ200 Redundancy Switching System is available to buy in increments of 1

Redundancy for Newtec Azimuth Series modulators, demodulators, modems, converters, encoders and decoders.

AZ200 RF Redundancy Switch

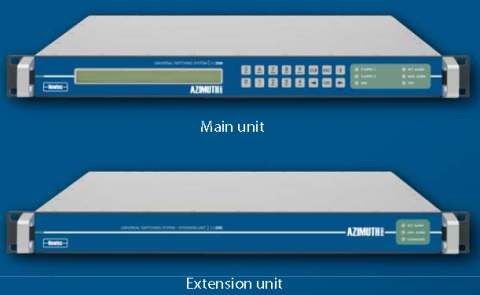

The Newtec AZ200 Universal Switching System is a powerful and modular product designed to provide a cost effective N+1 protection scheme for a wide variety of equipment such as modulators, demodulators, modems, converters, encoders and decoders.

This AZ200 meets simple and complex demanding protection requirements by operating and controlling up to 36 internal switching modules.  This very high modularity guarantees the design optimization for each configuration, reducing the cost and providing a high reliability.

Newtec AZ200 RF Interface Panel

Auto Switching

The internal switching modules are inserted in the 200 series main unit, or, for complex configurations, in up to eigth extension units, connected to the main unit.  Switching can be done automatically through alarm contacts, manually through the front panel or the dedicated web interface, or remotely via a monitoring and control system.

When the automatic mode is activated, the 200 series monitors continuously the set of parameters governing the switching operation in order to activate the redundant path while triggering the loading of parameters from memory.

Multiple Protocols

The RF switch provides a wide range of switching capabilities for almost any input and output signals used in satellite communications. The range of switchable signals include ASI, G.703, SDH, HSSI or IP interfaces, as well as IF, L-band or RF band signals.

Key features

• Dual redundant power supply – Main & Extension unit

• Automatic or manual operational mode

• Operates and controls up to 36 switching modules

• Switchable signals: ASI, IP, G.703, SDH, HSSI, IF, L-band and RF-band

• Stand-alone operation or integrated in a network management system

• Suitable for any equipment with alarm contacts

Advantages

• Increases service availability significantly

• Low cost solution

• Compatible with any equipment that has alarm contacts

• High reliability

• High compactness

• Scalability

Main Interface Switches

IF (50 ohms, DC – 270 MHz) (optional)

• Connectors BNC (F) - 50 ohms

• Frequency DC - 270 MHz

• Insertion loss < 2 dB

• Isolation > 50 dB (300 MHz)

• Signal IF


IF (75 ohms, DC - 270 MHz) (optional)

• Connectors BNC (F) - 75 ohms

• Frequency DC - 270 MHz

• Insertion loss < 2 dB

• Isolation > 50 dB (300 MHz)

• Signals IF, video, G.703, ASI, SDI


L-band (50 ohms, DC-2.5 GHz) (optional)

• Connectors BNC (F) - 50 ohms

• Frequency DC - 2.5 GHz

• Return loss > 18 dB (L band)

• Insertion loss < 0.5 dB

• Isolation > 75 dB (L band)

• Signals L-band


L-band (75 ohms, DC – 2.5 GHz)

• Connectors BNC (F) – 75 ohms

• Frequency DC – 2.5 GHz

• Return loss > 18 dB

• Insertion loss < 0.5 dB

• Isolation > 75 dB

• Signals L-band, HD-SDI


L-band (50 ohms, DC – 18 GHz) (optional)

• Connectors SMA (F) - 50 ohms

• Frequency DC - 18 GHz

• Return loss > 18 dB (L band) >13 dB (RF)

• Insertion loss < 0.5 dB

• Isolation > 75 dB (L band) >60 dB (RF)

• Signals L-band, RF


Optical, SC, single mode

• Connector 2 x duplex SC receptacles

• Minimum input power -30dBm

• Minimum output power -15dBm

• Wavelength 1300 nm

• Compliancy SONET OC3 & SDH STM1 (S1.1)

• Signal SDH


Optical, SC, multi mode

• Connector 2 duplex SC receptacles

• Minimum input power -30dBm

• Minimum output power -23.5dBm

• Wavelength 1300 nm

• Compliancy ATM Forum UNI SONET OC-3 Multimode

Fiber Physical layer specifi cation

• Signal SDH


HSSI (optional)

• Connectors 25 pin sub-D (F)

• Switch type 2 inputs/ 2 outputs

2 positions: straight & cross-over

• Frequency DC - 52 MHz

• Isolation > 30 dB (balanced)

Other switching modules for audio signals, wave guides and data signals are available upon request.


Input Interface Splitters

IF splitter

• Connector (in, out) BNC (F) - 75 ohms

• Frequency 40 – 1000 MHz

• Insertion loss < 5dB

• Isolation > 15dB


L-band Splitter

• Connector (in, out) F (F) – 75 ohms

• Frequency 950 – 2150 MHz

• Insertion loss < 6dB

• Isolation > 15dB


Generic

Monitor and control interfaces ( via the main unit)

• Web based GUI

• Diagnostics report, alarm log

• RMCP over TCP-IP/UDP and RS232/RS485

• SNMP v2c


Physical (Main and Extension units)

• 1RU, width: 19”, depth 51 cm, 6 kg

• Dual Power supply: 100-240 VAC, 105 VA, 47-63 Hz

• Temperature

- Operational: 0°C to 37°C

- Storage: -40 to +70°C

• Humidity: 5% to 85% non-condensing

• CE label, UL label


Ordering

The AZ200 can be customized according to your specific needs.  Please provide Digisat with a description of your equipment setup to our technical sales department to receive a configuration proposal.

Applications

  •   Broadcast contribution and distribution
  •   IP trunking / Corporate networks
  •   Any up or downlink facility
