Newtec Elevation Series EL840 PEP-Box Server

SKU
EL-840
Newtec Elevation Series EL840 PEP-Box Server is available to buy in increments of 1

Provides ETCP (Enhanced TCP) operation over satellite links

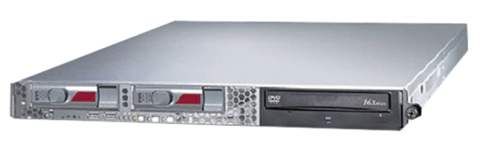

Newtec EL840 PEP-Box Server

This product has reached end of life and is no longer available.  Please contact us for a suitable replacement.

The Newtec EL840 PEP Box Server is a Performance Enhancing Proxy (PEP) appliance that combines a number of advanced traffic enhancement and shaping functionalities for the server side of point-to-point and point-to-multipoint satellite IP network, such as IP trunking networks. The EL840 PEP-Box Server is to be used in conjunction with the EL810 Mobile PEP-Box Terminal, the EL820 PEP-Box Terminal or the EL830 PEP-Box Gateway.

Alternatively, the Newtec Elevation Series EL840 PEP-Box Server can also be used with the TL100 TelliNet Client software installed on third party communication devices.  TCP and HTTP, the most widely used protocols in the Internet, show very poor performance when being used over high latency and/or lossy networks, such as satellite networks. As a result users experience slow download speed and surfing performance.

Bandwidth Efficiency

Moreover valuable satellite capacity is not used in the most efficient way.  The ideal solution to overcome such drawbacks is the EL840 PEPBox Server. The unit integrates a traffic enhancement technology that accelerates any TCP based transmissions over high latency networks. At the same time the EL840 greatly reduces the TCP data traffic on both forward and return link by means of data compression as well as TCP packet aggregation and session multiplexing. This is achieved by using ETCP (Enhanced TCP) instead of TCP over the satellite link.

The Newtec EL840 PEP Box can be used in conjunction with the EL 860 VCM/ACM shaper and encapsulator, in networks where the transmission bandwidth is varying dynamically. Thanks to the Cross Layer Optimization capability, the EL 840 dynamically adjust its performance according to the changing bandwidth availability. As a result, zero packet loss transmission can be ensured.

Additional Options

A first option package is called Advanced and performs the acceleration of popular protocols such as HTTP, FTP, POP3 and SMB (SMB). The HTTP prefetching technology enhances the web surfing experience to an extent that the download time for a web site can be reduced by more than 70 %, so the user has the impression of surfing via regular DSL or Cable based Internet connections. On top of that, the Advanced option package of the EL840 PEP-Box Server can secure any data traffic exchanged via the network by building up an encrypted VPN between the hub and the remote sites.

The second option package is Newtec's Premium and regroups all the features of the default and Advanced versions in addition to a network policing engine. This engine allows the distribution of the overall available bandwidth among services and end-users according to configurable criteria, e.g. prioritization of VoIP traffic.

A single EL840 PEP-Box Server appliance supports up to 20 Mbit/s of throughput. For automated fail-over and higher rates, multiple EL840 can be operated in load sharing mode.  The Elevation PEP-Box appliances are based on TelliNet and TelliShape of the Tellitec IP software product family.

Key Features

• Superior TCP acceleration and advanced security functionalities

• HTTP, FTP, POP3 and SMB (CIFS) acceleration

• Traffic aggregation, multiplexing and compression

• Traffic classification and policing

• Traffic congestion and packet-loss avoidance

• Out-of-the-box solution − no additional hardware or software needed at the server-side

• Server redundancy and load-sharing allows 100 % service availability

Main Advantages

• Reduces bandwidth costs and increases revenues

• Speeds up time-to-market

• Minimizes customer support efforts on remote sides

• Boosts service performance

• Ensures high network security and end user privacy

• Seamless integration into existing infrastructure

• High versatility and flexibility

• Easy to integrate and operate

Applications

• One-way Internet Access

• VSAT Acceleration

• SCPC Links

• IP Backbones

• IP Trunking

• Corporate Networks

General

System Architecture

• Distributed Performance Enhancing Proxy (dPEP) architecture (RFC 3135)

• Acting a dPEP server in a point-to-point or star network

• Based on IP tunneling technology

• Operates in L3 routing mode (in-path or on-a-stick)

• Supports asymmetric routing between the EL840 PEP-Box Server and the EL810 Mobile PEP-Box Terminal, EL820 PEP-Box Terminal and EL830 PEP-Box Gateway Client appliances

• Linux OS based

• Built-in CPU watchdog and RAM-usage monitoring

• Supports built-in redundancy and load sharing

Physical/Hardware

• 1RU, width: 19’’, depth: 60 cm, weight: 11,5 kg

• Rack mountable, rack mount kit included

• Intel Xeon server class CPU

• 160 GByte hard disk drive (for OS and accounting data), 2nd hard disk drive for RAID-1 (optional)

• DVD-ROM (for software updates)

• Power supply: 100/240 VAC, 50/60 Hz, 315 W

• Operational temperature: 10 - 35 °C

• Operation humidity: 20 - 90 %, non-condensing

• CE label

Interfaces

Monitoring Only

• 1 x serial

• 2 x PS/2 for keyboard/mouse

• 4 x USB e.g. for keyboard/mouse

• 1 x VGA

Input / Output

• 2 x LAN: auto switching 10/100/1’000 Base-T Ethernet interface, RJ-45

• 1 x additional LAN (optional)

Configuration/Monitoring

• SSH Access

• Web based GUI

Functionalities

Authentication and Accounting

• Server side enforced access control through gateway authentication

• Forward and return channel traffic accounting

TCP Acceleration

• Used transport protocol: ETCP (Enhanced Transmission Control Protocol)

• Fills the available data pipe up to the configured maximum throughput

• Control traffic reduction through session multiplexing and combined NACK/ACK technology (compared to SCPS-TP average bandwidth utilization savings: 80 - 95 % of volume and packets on return channel)

• Packet loss and delay based three-tier congestion control technology

• SYN ACK spoofing for HTTP traffic

• Dynamic RTT based window size adaptations

• Fast start algorithm

• Packet aggregation

• Configurable MTU

• Tolerates dynamically changing network conditions, packet loss, packet reordering and large data queues

Data Compression

• Supports on-the-fl y TCP payload compression

• Average compression savings: 25 - 40 %

• Deflate compression algorithm (RFC 1951)

• Selective compression based on URL extension and/or MIME type

VPN Support and Security (Optional)

• Transparent interception of traffic

• On-the-fly Blowfish encryption

• Available key length: 56 bits (default) up to 448 bits (optional)

• Hides original end-point information (IP, port, etc.)

• Automatic encryption key negotiating according to Diffie-Hellman algorithm (RFC 2631)

• Re-keying on basis of ETCP sessions

Application Acceleration (Optional)

• Server-to-gateway HTTP prefetching with support for embedded HTML

• Server-side JavaScript and CSS objects prefetching

• SMB (CIFS) read-ahead technology

• POP3 e-mail prefetching

Traffic Policing (Optional)

• Real-time adaptable traffic policy changes without service interruption and without packet dropping

• Three-tier rule support, up to 750 shaping rules configurable

• Shaping IPv4 unicast and multicast traffic

• Supports Peak Information Rate (PIR) policies and equal or weighted bandwidth distribution

• Up to ten configurable traffic priority classes

• Bandwidth is distributed equally or according to a configured weighting factor

• Supports IP ToS (Type of Service) transparency or IP ToS injection, classification and shaping of accelerated and encrypted ETCP traffic

Traffic Classification (Optional)

• Source and/or destination IP address, IP address range or IP subnet

• Protocol type (TCP, UDP, ICMP, RTP, ESP, AH, GRE, ETCP)

• Source/destination port or port range (TCP or UDP)

• IPv4 ToS values

Client Side Component

• EL810 Mobile PEP-Box Terminal or

• EL820 PEP-Box Terminal or

• EL830 PEP-Box Gateway or

• TL100 TelliNet Client software (installed on third party communication devices)
