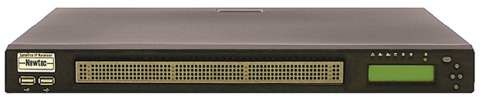

Newtec Elevation EL940 32APSK DVB Satellite IP Demodulator
Full compliance with DVB-S, DVB-DSNG or DVB-S2 standards
EL940 DVB-S2 IP Receiver
** This product is end of life and has been superceded by the Newtec MDM6000 **
The Newtec EL940 is a high performance professional satellite IP receiver designed for the reception of IP traffic transmitted over satellite in compliance with the DVB-S, DVB-DSNG or DVB-S2 standards. The EL940 connects directly to terrestrial IP network infrastructures via a single auto-switching Gigabit Ethernet interface. The receiver demodulates, restores and filters the data received from the satellite at rates of up to 154Mbit/s.
The EL940 comes with a single, fixed hardware configuration optimized for applications that requires a low initial investment without compromising on performance. It is ideally suited for point-to-multipoint applications, such as content distribution.
The PC architecture and the Linux operating system of the EL940 allows to integrate data processing software, such as Newtec Tellitec IP software, directly on the unit (this integration may modify the performance of the device).
Features
• DVB-S2 and DVB-DSNG/S compliant
• QPSK, 8PSK, 16APSK and 32APSK
• Multistream and VCM support
• Compatible with MPE and XPE encapsulation
• IP reception up to 154 Mbit/s
• Auto-switching GbE interface
• Linux-based PC architecture
• LNB control
Main advantages
• Cost-effective design for a low initial investment
• Full compatibility with the DVB-S/S2 standard for a guaranteed interoperability
• Highest service availability due to stable operation and robust build
• Advanced features for a maximum data throughput and operational flexibility
• Ideally suited for star topology
• Possible integration with data processing software
Applications
The IP receiver can be used in both bidirectional applications and in unidirectional applications.
• Content distribution: digital cinema, digital signage
• Primary distribution of IPTV
• IP trunking
• Corporate networking
• DSNG IP Applications
Related Newtec products
EL170 Satellite IP modulator
EL178 High Speed Satellite IP modulator
EL470 Satellite IP modem
EL478 High Speed Satellite IP modem
EL970 Satellite IP demodulator
EL978 High Speed IP Satellite Demodulator
EL8x0 Protocol Enhancement Proxy appliances
TL100 TELLINET: IP traffic enhancement and security software
TL200 TELLICAST: reliable IP multicast software
Input interface
L-band input (dual input)
• Connector 2 x F-type (F), 75 ohms
• Return loss > 7 dB
• Level -65/-25dBm
• Frequency 950 - 2150 MHz
• Adjacent signal < (Co+7) dBm/Hz where Co = signal level density
LNB power and control
• max. current 350 mA (on selected L-band input)
• voltage 11.5-14 V (vertical polarization), 16-19 V (horizontal polarization) & additional 22 kHz ± 4 kHz (band selection according to universal LNB for ASTRA satellites) & DiSEqC command transmission (DVB-S only)
Demodulation
Baud rate range
• DVB-S/DSNG: 1-45 Mbaud
• DVB-S2 Q/8PSK, 16APSK: 0.256 -45 Mbaud
• DVB-S2 32APSK: 1 - 30 Mbaud (with option AL-15)
Supported modulation and coding types
• DVB-S/DSNG:
Outer/Innner FEC: Reed Solomon /Viterbi
MODCODs:
QPSK:1/2, 2/3,3/4, 5/6, 7/8
8PSK: 2/3, 5/6, 8/9
16QAM: 3/4, 7/8
• DVB-S2:
Outer/Inner FEC: BCH/ LDPC
MODCODS:
QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
• Support of DVB-S2 Variable Coding and Modulation (VCM) mode
Supported frame length
• DVB-S/DSNG 188 byte
• DVB-S2 Short Frames 16200 bit
• DVB-S2 Normal Frames 64800 bit
Data Processing
• Maximum rate: 154 Mbit/s or 200,000 packets per second
• Supported data encapsulation protocol: Multi Protocol Encapsulation (MPE) (EN 301 192 V1.2.1).
Extended Performance Encapsulation (XPE)
- Newtec highly efficient encapsulation protocol for the encapsulation of Ethernet/IP frames in DVB-S2 Base-Band frames
• Data filtering: - 1 stream in DVB-S2 Multistream
- up to 256 configurable PID filters
- one air MAC address filter
Output interface
Ethernet interface
• Auto-switching 10/100/1000 Base-T Ethernet interface
Generic
Monitor & Control
• Web based GUI
• Management via IP interface over Ethernet (UDP and TCP supported)
• Key monitor parameters available locally on front panel
• Device setup available through the front panel
• Real time clock
• Persistent memory for configuration storage
Physical
• Very compact: 1RU, width: 19”, depth: 15,3”, 6kg
• Power supply: 90-130 & 180-260 Vac, 60VA
• Temperature: - Operational: 5 to 35°C - Storage: -40 to +70°C
• Humidity: 5% to 85% non-condensing
• CE label
