Newtec Azimuth Series AZ750 L-Band Combiner System

SKU
AZ-750
Newtec Azimuth Series AZ750 L-Band Combiner System is available to buy in increments of 1

Combines up to 8 different L-band RF signals

AZ750 Series L-Band Combiner

This product has reached end of life and has been replaced by the Newtec FRC0750.

The AZ750 is an active L-band combiner designed to bring together multiple carriers in a single RF channel that equalizes the level of the incoming signals with each input having its own amplifier and attenuator.

The Newtec Azimuth Series AZ750 can also be used as an active switching device for signal routing purposes or redundancy switching operations.  In its default configuration, the 750 combines up to 4 different L-band signals into one L-band signal. As an option it is possible to combine up to 8 different L-band signals within the same unit.

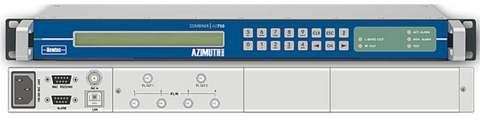

Newtec AZ750 RF Combiner Interface


BUC Power

Optionally, a 24V DC power supply and a reference frequency are also available on the L-band output, providing a compact and cost effective solution when the AZ 750 is used in combination with an outdoor RF upconverter and/or amplifier.

This combiner can be delivered with an integrated block upconverter as option. In this configuration, the unit converts the L-band output signal of the combiner to C, Ku or DBS-band.

The AZ 750 is easy to operate and monitor. All control and monitoring parameters are available locally on the front panel and remotely through a web interface. It is also possible to control or monitor via RMCP or SNMP.

Key features

• Up to 8 L-band inputs

• Each input is switchable and gain adjustable

• Optional upconversion to C, Ku or DBS-band

• Optional 10 MHz + 24Vdc for BUC

• Optional 10 MHz reference input/output

• Advanced monitoring and control

Main advantages

• Highly compact

• High versatility and fl exibility

• Cost eff ective

• Highest standard proven reliability

Applications

• DTH

• Primary distribution

• Contribution

Related products

Newtec AZ110 Broadcast Satellite Modulator

EL170 IP Satellite Modulator

AZ710 Upconverter

AZ720 Downconverter

AZ730 Up-Down converter

AZ740 Indoor L-band Block Upconverter

AZ270 1+1 Frequency Converter Redundancy Switch

Newtec AZ200 Universal Switching System

Interfaces

Input / output interface: L-band

• Connector SMA (F), 50 ohms

• Return loss (50 ohms) >14dB

• Frequency range 950 to 1750 MHz

• Max input power -10 dBm

Output interface: RF, (optional)

• Connector RF-band out SMA (F), 50 ohms

• Return loss >12dB

• Frequency range RF-band

- C-band :5.85 – 6.65 GHz

- Ku-band :12.75 – 13.25 GHz

- Ku-band :13.75 – 14.50 GHz

- DBS band :17.30 – 18.10 GHz

- DBS band :17.60 – 18.4 GHz

Output L-band monitoring (with Upconverter option)

• Connector SMA (F), 50 ohms

• Return loss >12 dB

• Gain 0 dB

10 MHz reference input / output (optional)

• Input level -3dbm up to 7dBm

• Output level +7dBm

• Connector BNC (F) – 50 ohms

BUC power and reference frequency (optional)

• max. current 1,5 A

• voltage 24V

• frequency 10MHz

• stability see Internal Reference Frequency

L-band channel characteristics

• Gain -30 to 10dB

• Output 1dB compression +10dBm

• Gain fl atness over 36MHz <± 0.25 dB

• Gain fl atness over L-band <± 1dB

• Spurious(@-10dBm output power) <-65dBc/4KHz

• L-band output mute >60 dBc

• Crosstalk >60 dBc

L-band to RF–band channel characteristics

• Gain ( over temperature and frequency)

- C-band -30 to 10 dB

- Ku-band 12.75-13.25 GHz -30 to 10 dB

- Ku-band 13.75-14.50 GHz -30 to 10 dB

- DBS-band -20 to 20 dB

• Output 1dB compression C & Ku-band >0dBm

• Output 1 dB compression DBS-band >10dBm

• Gain fl atness C&Ku-band ±0.60dB/36MHz max

• Gain fl atness DBS-band ±0.45dB/36MHz max

• In-band spurious

Non signal related <-80dBm

Signal related for rate >200kbaud

C and Ku-band (up to -10dBm output) <-65dBc/4kHz

DBS-band (up to 0dBm output) <-65dBc/4kHz

• RF output mute >60dBc

• Phase noise

@ 10 Hz <-30 dBc/Hz

@ 100 Hz <-60 dBc/Hz

@ 1 KHz <-75 dBc/Hz

@ 10 KHz <-85 dBc/Hz

@ 100 KHz <-95dBc/Hz

• Residual group delay 1 ns peak-to-peak

Internal Reference frequency

High Stability 1ppm

Stability ±5x10-8 over 0°C to 70°C

Ageing ± 15 ppb/day

± 300 ppb/year

Very High Stability 0.01ppm (optional)

Stability ±2x10-9 over 0°C to 65°C

Ageing ± 0.5 ppb/day

± 500 ppb/10 year


Generic

Monitor and control interfaces

• Web based GUI

• Diagnostics report, alarm log

• RMCP over TCP-IP/UDP and RS232/RS485

• SNMP v2c

Alarm interface

• Electrical dual contact closure alarm contacts

• Connector 9-pin sub-D (F)

• Logical interface and general device alarm

Physical

• 1RU, width: 19”, depth 51 cm,< 6 kg

• Power supply: 90-130 & 180-260 Vac, 105 VA, 47-63 Hz

• Temperature

Operational: 0°C to 40°C

Storage: -40 to +70°C

• Humidity: 5% to 85% non-condensing

• CE label
