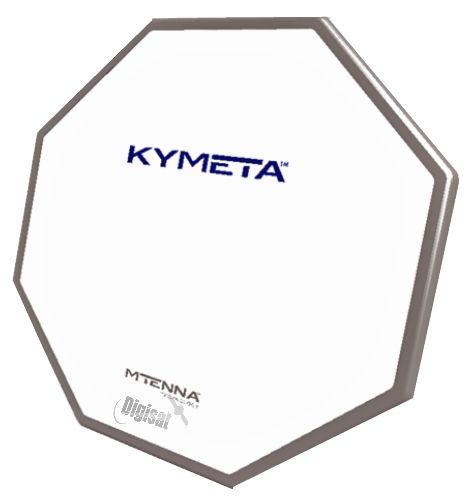

Kymeta KyWay u7 mTenna 16W (Ku) with iDirect Modem
Ku-Band SOTM, 16 Watt BUC and iDirect X7 modem
KyWay u7 mTenna 16 Watt with iDirect Modem
The Kymeta KyWay u7 mTenna 16W Ku-band flat panel SOTM terminal comes complete with BUC and iDirect modem. These low-profile high-throughput communication systems out perform any mechanical fixed antenna and on-the-move dishes making connecting any vehicle, vessel or or fixed platform easier and more reliable than ever before.
KĀLO™ satellite services from Digisat can also be bundled with this system and purchased in flexible, variable usage packages that utilize familiar and easy-to-understand data plans.
These light-weight and compact SOTM units deliver an end-to-end, broadband, mobile communications solution.
- Easy Operation and Installation, Satellite technician not required for installation, setup, commissioning and provisioning
- Highly reliable, solid state electronically-steered antenna, no gimbals, no motors required
- Extremely agile, fast tracking, on-the-move connectivity supports mobile broadband
Key Features
- Flat-panel for low-profile installation options
- Electronic steering for low maintenance and reliable connectivity
- Simple power-on startup and auto-acquisition for easy operation
- Lower power consumption than competitive flat panel terminals
- Broad applicability – for all maritime vessels, vehicles and fixed applications
- Reliable communications even at high speeds and on rough seas or terrain
- Part Number 800-00014
- Fully integrated with 16 watt BUC
- Compatible with KALO Global on the move Internet service
Digisat provides turnkey installation for all U7 antennas anywhere in the world, anytime, for any application. Internet service provisioning is also performed by our highly skilled technicians and can be accomplished within hours after purchase. Please contact us today for a total turnkey solution.
All KALO Internet plans and prices for fixed, mobile and maritime can be found here
System Configuration
Need turnkey installation, integration and service provisioning? Digisat's highly skilled and experienced technicians are based in Central/South Florida and can travel worldwide at a moments notice. Please contact us today.
Antenna
|
Band |
Ku |
|
Antenna type |
Electronically scanned array |
|
Polarization |
Vertical and horizontal software defined |
|
RX frequency range |
11.4 – 12.4 GHz |
|
RX gain |
33.0 dB |
|
RX G/T |
9.5 dB/K |
|
RX scan roll-off as measured @ 60° |
Cos^1.1-1.2 |
|
RX instantaneous bandwidth |
>100 MHz |
|
TX frequency range |
14.0 – 14.5 GHz |
|
TX gain |
32.5 dB |
|
TX instantaneous bandwidth |
>100 MHz |
|
TX scan roll-off as measured @ 60° |
Cos^1.2-1.4 |
Tracking
|
Tracking rate |
>20°/second |
|
Scan angles |
Theta up to 75° off broadside and Phi 360° |
|
Accuracy |
<0.2° |
|
Mobile tracking accuracy |
FCC compliant for 25.222 and 25.226 |
|
Tracking receiver type |
Integrated DVB-S2 |
Mechanical
|
Outdoor unit dimensions |
L 82.3 cm x W 82.3 cm x D 16.5 cm |
|
L 32.4 in. x W 32.4 in. x D 6.4 in. |
|
|
Outdoor unit weight |
21.1 kg | 46.5 lb. |
|
Outdoor unit mounting interface |
4 x M8 x 1.25 mounting standoffs 0.95 cm | 0.375 in. deep |
|
Maximum indoor unit dimensions |
W 44.5 cm x D 31.75 cm x H 9.06 cm |
|
W 17.5 in. x D 12. 5 in. x H 3.57 in. |
|
|
Indoor unit weight |
6.35 kg | 14.0 lb. |
Environmental
|
Outdoor unit operational temperature |
-25°C to +55°C |
|
Outdoor unit storage temperature |
-40°C to +75°C |
|
Outdoor unit ingress protection |
IP 66 |
|
Outdoor unit shock |
IEC 60068-2-27 |
|
Outdoor unit vibration |
MIL-STD-167-1A |
|
MIL-STD 810G |
|
|
IEC 60068-2-64 |
|
|
IEC 60068-2-57 |
|
|
Indoor unit operational temperature |
-0°C to +50°C |
|
Indoor unit storage temperature |
-40°C to +75°C |
|
Indoor unit ingress protection |
IP20 |
|
Indoor unit shock |
IEC 60068-2-27 |
|
Indoor unit vibration |
MIL-STD-810G |
|
Indoor unit BTU/hr 8 W BUC |
Typical 1025 | Peak 1700 |
|
Indoor unit BTU/hr 16 W BUC |
Typical 1375 | Peak 2050 |
Power and RF System
|
Input power |
110-240 VAC 50/60 Hz |
|
8W BUC |
Typical 300 W | Peak 500 W |
|
16W BUC |
Typical 400 W | Peak 600 W |
Interfaces
|
Network interface |
RJ45 10/100/1000 |
|
RF cables |
N-type connectors |
|
Interface cables |
Available in 3.66 m, 7.62 m, 15.24 m 12 ft., 25 ft., 50 ft. |
|
RF cables |
Available in 3.66 m, 7.62 m, 15.24 m |
|
12 ft., 25 ft., 50 ft. |
Works on all vehicles, marine vessels, trains, buses and ATVs. Excellent for military and government operations.
