Kymeta KyWay Go Portable Flat Panel Flyaway Case Based Terminal
Portable Ku-Band SOTM, 16 Watt BUC and iDirect X7 modem

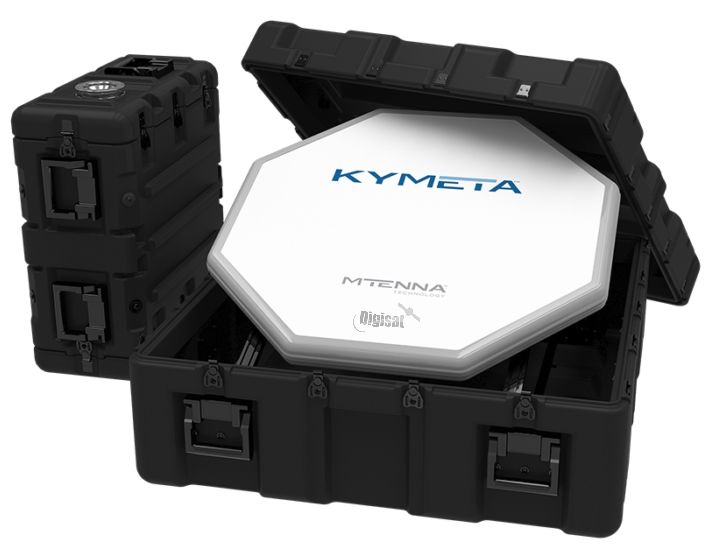

KyWay Go Transportable Flat Panel Terminal
The Kymeta KyWay Go product line integrates the revolutionary flat panel flyaway mobile satellite terminals into transportable and MIL-SPEC ruggedized cases. This enables the system to be transported on commercial aircraft, small vehicles, or shipped. It is easily secured on many different platforms and is operational in under five minutes.
Reliable, robust, and consistent communications are now also highly mobile. The Go utilizes the innovative metamaterials-based mTenna technology system to provide lightweight on-the-move acquisition and continuous tracking of satellites.
Key Features
- SATCOM in less than four minutes from opening of case to transmitting
- Two weather-resistant, rugged, transportable cases contain everything needed for connectivity
- One-button operation enables simple and reliable communications and can be bundled with KĀLO satellite service
- Tx/Rx from a single panel
- Mounting points for securing the unit to a number of platforms
- Bespoke MIR/ CIR satellite service packages available for government users
- Available for 3 month or 6 month rentals or purchase
- Highly cost effective global connectivity
- Compatible with Digisat's KALO service
System Configuration
The Digisat KyWay Go portable terminal comprises two major components:
- The mTenna u7 antenna subsystem module (ASM), including a combined transmit and receive-capable aperture, control electronics assembly, mechanical enclosure system, and software.
- The interface unit, including the modem, power supplies, and interfaces. Both cases are weather resistant and are intended for operations in almost any environment.
Digisat provides turnkey custom integration for all U7 antennas anywhere in the world, anytime, for any application. Internet service provisioning is also performed by our highly skilled technicians and can be accomplished within hours after purchase. Please contact us today for a total turnkey solution.
All KALO Internet plans for mobile U7 case-based systems can be found here
For our Government and Military customers, Digisat is offering special pricing when combined with our Kalo On-The-Move Global Internet service plans.
Antenna
Band |
Ku |
Antenna type |
Electronically scanned array |
Polarization |
Vertical and horizontal software defined |
RX frequency range |
11.4 – 12.4 GHz |
RX gain |
33.0 dB |
RX G/T |
9.5 dB/K |
RX scan roll-off as measured @ 60° |
Cos^1.1-1.2 |
RX instantaneous bandwidth |
>100 MHz |
TX frequency range |
14.0 – 14.5 GHz |
TX gain |
32.5 dB |
TX instantaneous bandwidth |
>100 MHz |
TX scan roll-off as measured @ 60° |
Cos^1.2-1.4 |
Tracking
Tracking rate |
>20°/second |
Scan angles |
Theta up to 75° off broadside and Phi 360° |
Accuracy |
<0.2° |
Mobile tracking accuracy |
FCC compliant for 25.222 and 25.226 |
Tracking receiver type |
Integrated DVB-S2 |
Mechanical
Outdoor unit dimensions |
L 82.3 cm x W 82.3 cm x D 16.5 cm |
L 32.4 in. x W 32.4 in. x D 6.4 in. |
|
Outdoor unit weight |
21.1 kg | 46.5 lb. |
Outdoor unit mounting interface |
4 x M8 x 1.25 mounting standoffs 0.95 cm | 0.375 in. deep |
Maximum indoor unit dimensions |
W 44.5 cm x D 31.75 cm x H 9.06 cm |
W 17.5 in. x D 12. 5 in. x H 3.57 in. |
|
Indoor unit weight |
6.35 kg | 14.0 lb. |
Environmental
Outdoor unit operational temperature |
-25°C to +55°C |
Outdoor unit storage temperature |
-40°C to +75°C |
Outdoor unit ingress protection |
IP 66 |
Outdoor unit shock |
IEC 60068-2-27 |
Outdoor unit vibration |
MIL-STD-167-1A |
MIL-STD 810G |
|
IEC 60068-2-64 |
|
IEC 60068-2-57 |
|
Indoor unit operational temperature |
-0°C to +50°C |
Indoor unit storage temperature |
-40°C to +75°C |
Indoor unit ingress protection |
IP20 |
Indoor unit shock |
IEC 60068-2-27 |
Indoor unit vibration |
MIL-STD-810G |
Indoor unit BTU/hr 8 W BUC |
Typical 1025 | Peak 1700 |
Indoor unit BTU/hr 16 W BUC |
Typical 1375 | Peak 2050 |
Power and RF System
Input power |
110-240 VAC 50/60 Hz |
8W BUC |
Typical 300 W | Peak 500 W |
16W BUC |
Typical 400 W | Peak 600 W |
Interfaces
Network interface |
RJ45 10/100/1000 |
RF cables |
N-type connectors |
Interface cables |
Available in 3.66 m, 7.62 m, 15.24 m 12 ft., 25 ft., 50 ft. |
RF cables |
Available in 3.66 m, 7.62 m, 15.24 m |
12 ft., 25 ft., 50 ft. |
Works on all vehicles, marine vessels, trains, buses and ATVs. Excellent for military and government operations.
