SKU
SR-2R

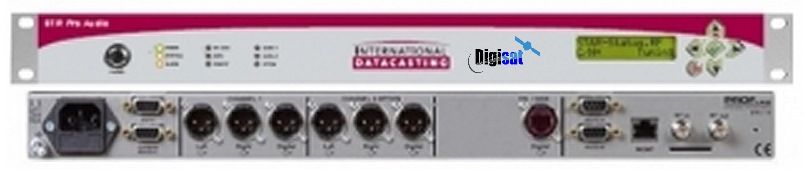

International Datacasting Star Two Pro Audio Satellite Receiver IRD is available to buy in increments of 1

Automatic or manual switching, DVB-S2 for reduced bandwidth costs

IDC Star Two Broadcast Satellite Audio Receiver

The International Datacasting Star Two Pro Audio Satellite Receiver is designed specifically for the distribution of audio programming over satellite to radio broadcasting networks. STAR Pro Audio is an ultra high reliability, professional satellite receiver designed specifically for radio distribution applications. Based around the latest DVB satellite modulation and MPEG audio compression standards, the STAR’s highly integrated, low power, fanless architecture is designed to maximize network uptime.

Highly Efficient

IDC STAR Two supports ultra high efficiency, standards-based DVB-S2 as well as DVB-S satellite demodulation. Both MCPC and SCPC delivery modes are supported, down to rates as low as 100 kSymbol/s. MPEG Audio Compression- The programmable audio decoder within STAR supports a wide range of open standard MPEG audio codecs. MPEG Layer 2 and Layer 3 are supported as standard, and MPEG-4 AAC is available as a licensable option.

Lower Satellite Bandwidth Costs

Combining DVB-S2 satellite demodulation with MPEG-4 AAC audio decoding can reduce annual satellite bandwidth costs dramatically when compared to networks based on legacy audio products. Depending on the size of the network, the yearly satellite bandwidth savings can quickly offset the cost of upgrading older networks to the STAR platform.

Multiple Configurations

STAR is available in three different decoder configurations: STAR One supporting the decoding of a single audio pair; STAR Two supporting two pairs and optional ASI input; and STAR Three supporting three pairs. Supporting multiple decoders in one chassis reduces cost for radio networks delivering more than one channel to each transmitter site. Program Backup- Certain STAR Pro Audio models can be programmed to play stored audio files from an on-board SD card when the incoming signal is not available, ensuring radio transmission continuity even when the satellite link is not available. Broad Array of Software Licensable

Features

Many of the features available for the STAR Pro Audio, including very low symbol rate support and AAC decoding, are software options. They can be activated using a license key at any time, whenever the extra functionality is required. ABR Network Replacement- IDC has designed the STAR to be the modern replacement to its market-leading ABR platform, which is still being used to deliver content to tens of thousands of transmitter sites around the world. STAR updates the ABR’s twenty year old satellite modulation and audio compression technologies with modern, open standard alternatives, while retaining the ABR’s legendary levels of reliability. It also improves on the ABR’s density, offering up to three stereo channels per rack unit instead of one.

Long Term Investment Protection

Radio network operators need to be sure that the infrastructure investments they make can be relied upon to support their business for many years to come. Our twenty year history in professional radio demonstrates both IDC’s ability to engineer long lasting, reliable audio receiver products, and our proud commitment to this market. Continuing in this long tradition, IDC has designed the STAR Pro Audio to support our customers' satellite distribution needs well in to the future.

SATELLITE INPUT

Standards Compliance  ETS 300421 (DVB‐S)

ETSI EN 302 307 (DVB‐S2)

RF Frequency Range  950 to 2,150 MHz

Input Level  ‐80 dBm to –30 dBm

VSWR  > 10 dB

Input Connector  F‐Type female

Output Connector  F‐Type female

Impedance  75Ω

LNB Voltage Supply  13/18 Volts selectable, Universal LNB, ≤ 450 mA

Symbol Rate DVB‐S/S2   100 kS/s ‐ 45 MS/s (standard)

FEC DVB‐S  1/2, 2/3, 3/4, 5/6, 7/8

FEC DVB‐S2 QPSK  1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

FEC DVB‐S2 8PSK  3/5, 2/3, 3/4, 5/6, 8/9, 9/10

FEC DVB‐S2 16APSK  2/3, 3/4, 4/5, 5/6, 8/9, 9/10



AUDIO SPECIFICATIONS

MPEG Decoder  MPEG Layer 2, MPEG Layer 3, AAC

Volume Settings (reference)  ‐20 to +12 dB

Digital Level Reference  ‐9 dBFS (100%)

Analogue Audio Out  XLR, 30Ω

Digital AES/EBU Out  XLR, 110Ω

MPEG Layer 2/3     32, 48, 64, 80, 96, 112, 128, 144, 160, 192, 224, 256,

320, 384 kb/s (at 48, 44.1 & 32 kHz)

AAC LC                     32, 48, 64, 80, 96, 112, 128, 144, 160, 192, 224, 256,

320 kb/s (at 48, 44.1 & 32 kHz)

AAC HE v1               32, 48, 64, 80, 96, 112, 128 kb/s (at 48, 44.1 & 32 kHz)

AAC HE v2               32, 48 (at 48 & 32 kHz)



IP MANAGEMENT PORT

Protocol                                   TCP/IP

Port Type                                 Ethernet RJ45, 10/100 Mbit/s

Communication Type           HTTP and SNMP


ALARM CONTACTS

Number of Relays                  3 (status/alarm)

Contacts                                   Charge over (N.O. and N.C.)


RELAY CONTACTS

Contacts                                   8 switched outputs


POWER REQUIREMENTS

Supply Voltage                       100 to 240 VAC, 50/60 Hz Power Connection                 IEC

panel-mount/fuse 2.5 AT Safety and EMC                      According to CE regulations PHYSICAL


PARAMETERS

Chassis                                     1 RU rackmount

Dimensions (H, W, D)            4.5 cm x 48 cm x 30 cm (1.75” x 19” x 11.8”)

Weight                                     5 kg (11 lbs.)


ENVIRONMENTAL CONDITIONS

Operating Temperature      5° to 45° C (41° to 113° F)
