Intellian Technologies v240K 2.4M Ku-Band Maritime Antenna
2.4M, Global broadband system, Ku-Band, great for cruise ships

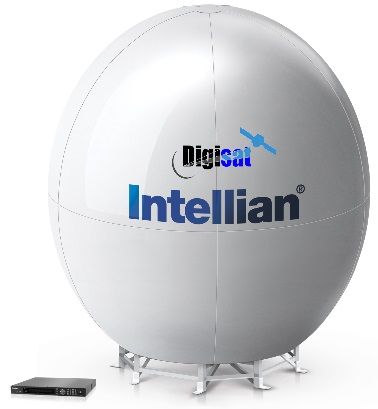

V240K Ku-Band Marine Satellite Antenna
The Intellian v240K Ku-Band maritime communications antenna is a completely integrated 3-axis platform that come fully integrated with all RF electronics including the antenna mounted BUC and LNBs. Available with a multitude of transmit power output configurations, the V240K is ideal for all large ocean going vessels. The precision high-gain parabolic ring focus reflector provides ultra-wide elevation angle which enables superb connectivity virtually anywhere you go, even in extremely low and high latitude regions.
Easy Operation
The v240K requires minimal involvement to commission, is easy to operate, and simple to upgrade and manage. Each antenna comes preloaded with a ready-to-use, client-customized satellite library that can be conveniently tailored further via PC software (also included with the unit), and firmware updates can be done entirely through the Wi-Fi ACU.
Highlighted Features
2.4M (94”) Ku-band 3-axis VSAT antenna system
1-piece, high gain parabola ring focus antenna
New patent pending technology, allowing auto-switching between circular and linear polarization
Lighter than the competitor’s system without sacrificing strength and rigidity using a carbon fiber composite reflector
Built-in brakes on the elevation and cross-level motors
Supports extremely high and low elevation angles (-15° to +120°)
Simply configured with various BUC options (25W - 200W)
Exceeds military grade vibration and shock standards
Supports ACU operation via Wi-Fi with built-in web-based remote control management
Supports various modem interface formats (Ethernet, Console, RS232)
Dual built-in GPS to prevent loss of position due to antenna blockage
Optional internal air conditioner if required
Dimensions
Product Model Specifications
Intellian v240K 3-axis Marine Stabilized C-band Communication Antenna System
Radome & Antenna
Radome (D x H) 3.3m x 3.52m / 130” x 139”
Dish Diameter 2.4m / 94.5”
Weight 670kg / 1477 lbs (Radome + Antenna + Base frame)
Stabilized Pedestal Assembly
Pedestal Type 3-Axis: Azimuth, Elevation, Cross level
Azimuth Range Unlimited
Elevation Range -15º to +120º
Cross-level Range ± 30°
Brake System Elevation , Cross level
Pointing Accuracy 0.2° peak mis-pointing @ max ship motion condition
Reflector & Feed Assembly
TX Gain 41.7dBi @ 6.14GHz (with Radome)
RX Gain 37.7 dBi @ 3.91GHz (with Radome)
Cross-pol isolation Minimum 35dB
G/T 20 dB/K (Clear Sky, 20° Elevation)
Polarization Circular Polarization & Linear Polarization, Auto Switching
Max Ship’s Motion
Roll / Pitch / Yaw ±25° roll, ±15° pitch, ±15° yaw
Rack Mount Antenna Control Unit
Size 431mm x 381mm x 44mm / 16.9”x15”x 1.7”
Weight 3kg / 6.6 lbs
Display 2 Line 40 character graphic VFD module
Serial Interface 57,600bps 8, N, 1, RS-232C
Modem Interface Ethernet / RS-232C / Console
Gyrocompass Interface NMEA 2000 / 0183
Remote Access TCP/IP / Wi-Fi
Input Power 90 ~ 260V AC, 47~63Hz
Ideal for cruise ships, freighters, research vessels and military watercraft. Also great for land based applications where a VSAT radome system is required
