Intellian HD DirecTV s6HD Dual-Band (2-Axis) Marine HDTV Antenna

Intellian T130Q

Intellian Technologies T240CK 2.4M Simultaneous (C-Ku-Band) 3-Axis Marine VSAT Antenna

Intellian i6W Maritime TV Antenna

Intellian i6W Worldwide Maritime Television Antenna

$8,940.00
SKU
IT-s6HD
Intellian HD DirecTV s6HD Dual-Band (2-Axis) Marine HDTV Antenna is available to buy in increments of 1

Capable of receiving all 3 DirecTV Satellites, Ku and Ka-Band operation

s6HD Maritime HD DirecTV Satellite Television Dish

The Intellian s6HD 24" Dual-Band 2-Axis Marine HDTV Satellite Antenna is a superbly engineered Marine satellite television antenna that delivers crystal clear reception of all three DirecTV satellites simultaneously. The Intellian 60cm dish operates in both Ku and Ka-Band, and is capable of maintaining signal lock in extreme sea conditions. In addition to providing DirectTV reception, the s6HD also works standard Ku-Band receivers from Dish Network and Bell ExpressVu.

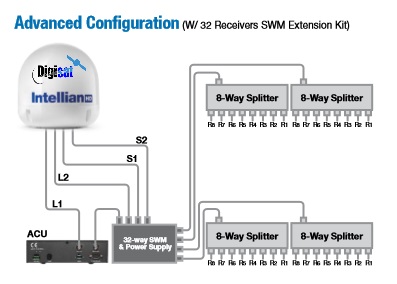

Intellian S6HD DirecTV antenna advanced system configuration

Key Standard Features

  • Receive all 3 DirecTV Satellite signals
  • Reception of DirecTV local channels
  • Ku and Ka-Band operation
  • Large elevation range from 5 degrees to 90 degrees
  • Automatic Tri Sat Multi Feed alignment

Intellian S6HD Standard Maritime TV System Config

Coverage Map

Intellian S6HD DirecTV Maritime Satellite Television Footprint Map

Pricing

This Intellian dish is available through Digisat at a special discounted price. Contact us today for pricing. Immediate shipment is available on this dish.

S6HD Specifications

B3-631HD Intellian s6HD Satellite TV Antenna System

Physical

Radome (D x H) 27.5”x28.3”
Antenna Dish Diameter 24”
Weight 47.8 lbs

Environmental

Operating Temp. Range -15˚C to +55˚C / +5˚F to +131˚F
Storage Temp. Range -25˚C to +70˚C / -13˚F to +158˚F
Water Ingress IPX6
Approvals CE / FCC
Warranty 2 year parts and 1 year labor

RF Performance

Reception Frequency Ka-Band (18~22 GHz)
Ku-Band (10.7 ~ 12.75 GHz)
Minimum EIRP 47 dBW
Azimuth Range 680˚
Elevation Range +5° to +90°
Ship’s Motion Roll ±25˚, Pitch ±15˚
Roll & Pitch Response Rate 45˚/sec
Turn Rate 45˚/sec
RF Output Quad output

Antenna Control Unit

Dimensions (W x D x H) 7” x 8.5” x 2.1”
Weight 2.6 lbs
Display 2 line 20 character VFD module
Power Input 9.0~30.0V DC (Typ. 30W, Max 50W)
GPS Interface Built-in (NMEA 0183 GPS)



S6HD Antenna Technical Specifications

s6hd specs 2


S6HD Operation & Installation Manual

DirecTV and DVB video network service access while underway at sea or at the dock
