$32,990.00
SKU
I-GX60
Intellian GX60 Inmarsat Global Xpress Maritime Antenna is available to buy in increments of 1

Fully optimized for Ka-band operation, Carbon fiber reflector for improved performance, ACU with alphanumeric display of system status

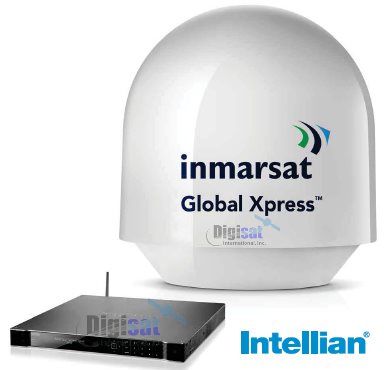

GX60 Inmarsat Global Xpress Marine Satcom System

Digisat is the largest distributor for Intellian Technologies, a leading manufacturer and supplier of maritime VSAT antennas. Digisat offers a wide range of marine satellite communications systems for internet access and television reception


Key Features

 Certified for Inmarsat GX service

 Supports all satellite internet modems

 Web based IP monitor and control capability

 Wide elevation angle range and unlimited azimuth

 High gain for constant connectivity in fringe areas




V100gx Global Xpress antenna vertical isolator

Built-in heavy duty shock proof vertical isolation for reliable operation in long period swells and short interval coastal seas



 Intellian maritime VSAT System Diagram

Above deck (ADE) and below deck equipment (BDE) IFL coaxial cable and ship's main AC power connections

The compact and rugged Intellian GX60 is a 60cm Ka-Band marine satellite communications antenna system that's fully optimized and completely certified to work with Inmarsat's Global Xpress GX satellite service, as well as all other high throughput Ka-Band maritime satellite internet platforms. Due to it's size and lightweight design, the GX60 is ideal for all vessels, regardless of size. Whether you're using broadband IP services to manage a vessel or operate a ship, this terminal delivers unheard of broadband speeds anywhere on the world's oceans

High Gain

Standard features of this small aperture system include a fully optimized high gain lightweight carbon fiber reflector and tuned composite radome that delivers superior signal spectral purity on Inmarsat I-5 Ka-Band satellites.

Frequency Tuned Radome

To ensure efficient operations for both Ku-band VSAT and Ka-band Inmarsat Global Xpress network operation, the signal loss of the radome itself was minimized and the RF performance maximized with an optimized radome design that enhances both Ka-Band and Ku-Band RF subsystem performance.

Ka-Band Engineered Reflector

The GX60 is designed and engineered to operate on Ka-band frequencies while maximizing the BUC and LNB performance. The carbon fiber composite reflector of the GX60 is capable of transmitting and receiving Ka-band. Standard Ka-band system configuration comprises a 5 Watt Ka-band BUC, (2) Global Ka-Band LNBs and indoor antenna controller with built-in WiFi and Bluetooth connectivity.

Gyro-Free Satellite Acquisition

Intellian's new generation Gyro-free satellite search function enables this antenna to acquire and lock onto the satellite without requiring a separate input from the ship's gyrocompass.

Intellian Global PLL LNB

Fully equipped with Intellian's patent pending Global PLL LNB as a standard configuration.  Intellian's new Global PLL LNB presents the world's first Ku-band LNB module capable of receiving a full range of operating frequencies from any VSAT satellite around the globe.

The PLL LNB incorporates user programmable support of an unlimited number of LO (Local Oscillator) frequencies.

FCC and ETSI Standards Compliance

The Intellian GX is designed to meet or exceed FCC and ETSI specifications, as well as Res EN60945, EN60950, R&TT, DNV2.4 Class C and MIL-STD-167-1A specifications.

Antenna Control Unit - Global Xpress™ Core Module

The all new GX ACU combines the Core Module internally with the antenna
control unit, saving time and space during installation. The ACU also includes
a Wi-Fi connection to allow wireless connection using the dedicated Intellian
Aptus software for system control and monitoring. The Aptus software also
helps automatically configure the antenna system during initial commissioning.

Simplified Installation

As with all Intellian VSAT antennas, installing the GX terminal onboard your vessel is a quick and easy process when you utilize Digisat's factory trained and certified maritime satcom technicians.

3 Year Parts, 1 Year Labor Warranty



High-speed performance grade GX maritime satellite internet service from Digisat is also is available with this terminal.

Link to marine broadband IP access services



ADE Specification



Radome (W x H)

85 cm x 99.5 cm (33.5” x 39”)

Dish Diameter

65 cm (25.6”)

Antenna Weight

Approx. 70kg (154 lbs)

Platform

Azimuth, Elevation, Cross-level

Azimuth Range

Unlimited

Elevation Range

-20 ° to +115°

Cross-level Range

Up to ±37°

RX Frequency

19.2~20.2GHz Ka-band

RX Gain

40 dBi @ 19.2GHz (with radome)

TX Frequency

29.00~30GHz Ka-band

TX Gain

43 dBi @ 29GHz (with radome)

Cross-pol Isolation

Minimum 35 dB

G/T with Radome

> 15 dB/K @ Ka-Band

Terminal Polarization Ka-Band

Circular, Tx:RHCP Rx:LHCP

Power Consumption

100 ~ 240V AC, 50/60Hz, 4A

BDE Specification



Dimensions (W x D x H)

43.1 cm x 38 cm x 4.4 cm (17” x 15” x 1.7”

Weight

3.5kg (7.7 lbs)

Ship’s Gyrocompass Interface

NMEA 2000 / NMEA 0183

GPS Interface

NMEA In / NMEA Out

Serial port

57600bps 8, N, 1, RS-232C

Modem

Internal

Ethernet port

RJ45, TCP/ IP connection

RF Interface

Antenna RX: N-Type, Modem RX: F-Type

Power Consumption

100 ~ 240V AC, 50/60Hz, 1A

Fully optimized for operating on the Inmarsat Ka-band Global Xpress maritime network
