Intellian Technologies GX100 103cm Ka-Band Global Xpress Terminal
GX certified, includes an integrated Global Xpress Modem and a Wi-Fi antenna for wireless monitoring and control of the terminal
GX100 Global Xpress Stabilized Antenna
Key FeaturesFully integrated satellite terminal, including modem and RF electronics, providing simple out-of-the-box connectivity Super fast download speeds up to 50 Mbps Seamless global maritime IP connectivity Widest elevation angle range and unlimited azimuth Fully optimized and approved for Inmarsat Global Xpress maritime service Fast one touch set-up and commissioning The Intellian GX100 comes with factory supplied lifting straps for quick and easy installation to the vessel's superstructure

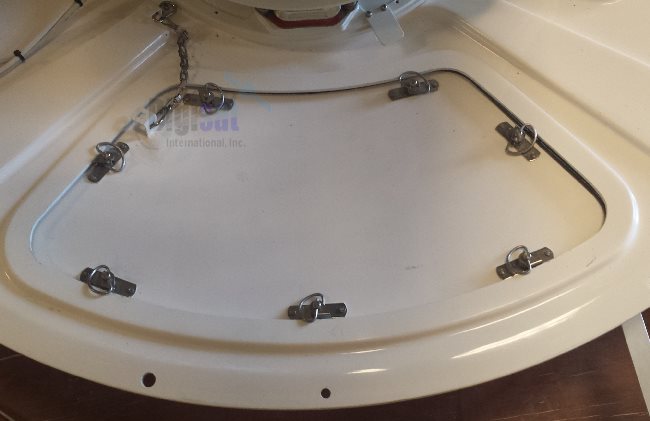

A large weatherproof radome access door on the Intellian GX100 provides easy access for service and routine maintenance tasks

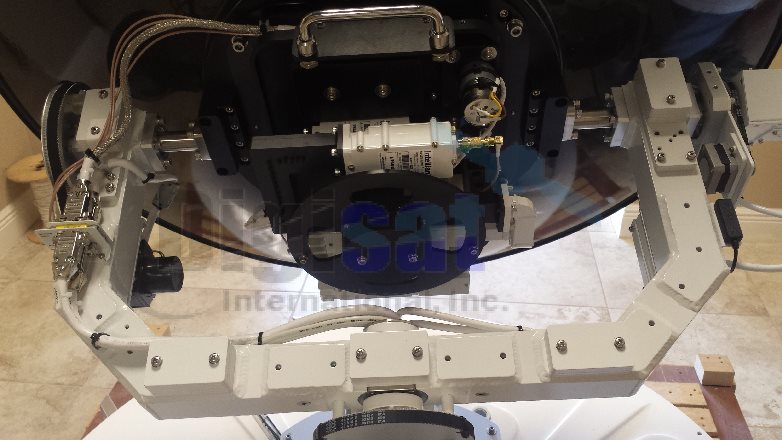

The compact Ka band RF package- BUC, LNB and reflector feed is easily accessible for maintenance.

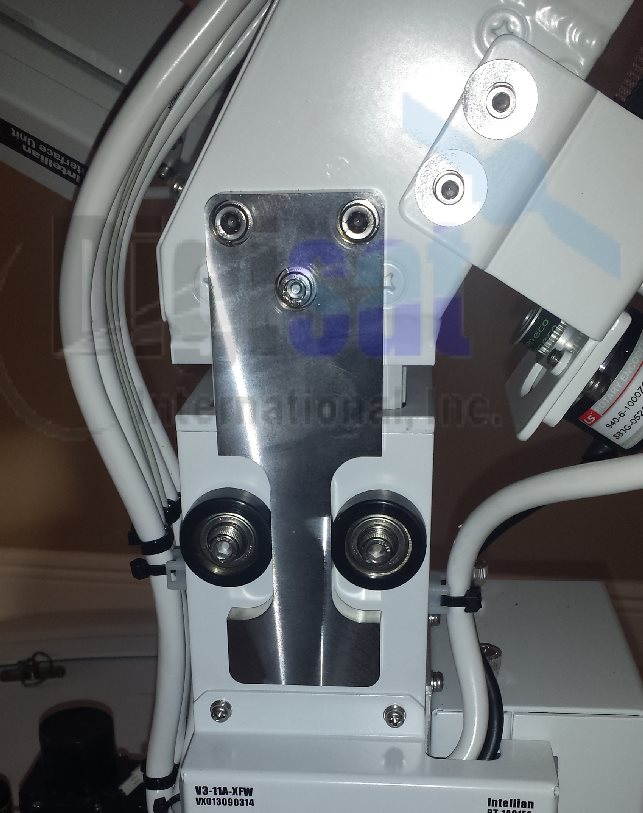

Built-in heavy duty shock proof vertical isolation for reliable operation in long period swells and short interval coastal seas

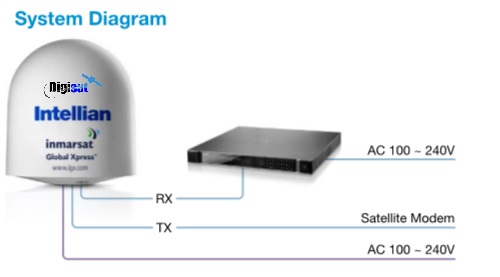

GX100 above deck (ADE) and below deck equipment (BDE) IFL coaxial cable and ship's main AC power connections |

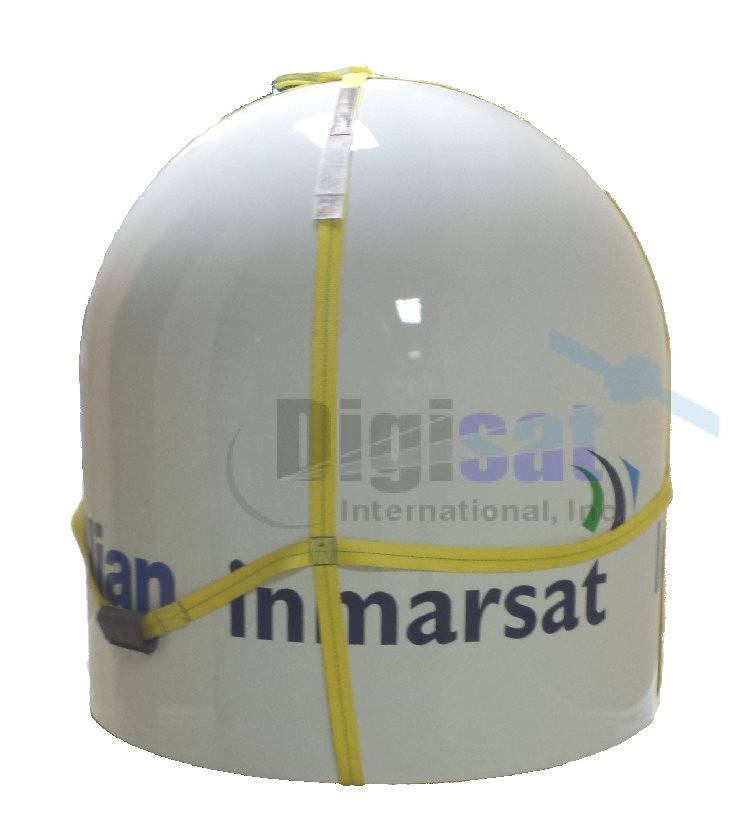

The brand new Intellian GX100 is a 103cm Ka-Band marine VSAT antenna system that's totally optimized and fully certified to access Inmarsat Global Xpress satellite services. The extremely rugged and versatile GX100 is the ultimate communications platform for captains and mariners that demand a flexible and cost effective communications platform that allows seamless worldwide connectivity while at sea underway. High Gain ReflectorStandard features of the highly efficient Intellian GX100 Inmarsat GX antenna system include a fully optimized high gain lightweight carbon fiber main reflector and tuned composite radome that delivers superior signal spectral purity for connecting to Inmarsat I-5 satellites. This high throughput GX maritime VSAT antenna system connects to all Global Xpress frequencies even in the most adverse weather conditions. Frequency Tuned RadomeTo ensure constant and efficient operations for Ka-band Global Xpress network operation, the signal loss of the radome itself was minimized and the RF performance maximized with an RF nuetral radome design that enhances Ka transmit and receive subsystem performance. Ka-Band Engineered ReflectorThe Intellian GX100 is designed and engineered to operate with Ka GX frequencies, while maximizing the Block Upconverter transmitter and LNB performance throughout the entire frequency band. The carbon fiber composite reflector of the GX100 is capable of efficiently transmitting and receiving Ka frequencies. This Ka system is equipped with a Ka-band feed, 5 Watt BUC, (2) Global LNBs and indoor antenna controller with built-in WiFi and Bluetooth connectivity. Simple RF Package MaintenanceThe Intellian GX100 can be easily and quickly serviced due to its integrated RF module consisting of the BUC and LNB. The BUC and LNB assembly is attached to the rear side of the reflector through a simple process, with no need to balance the system after routine maintenance. Once the ACU is has been serviced, and power is supplied, the system is immediately ready for operation on the GX platform. Gyro-Free Spacecraft AcquisitionIntellian's new generation Gyro-free satellite search function enables this antenna to acquire and lock onto the satellite without requiring a separate input from the ship's gyrocompass. Intellian Global PLL LNBFully equipped with the patent pending Global PLL LNB as a standard configuration. The new Global PLL Intellian LNB presents the world's first LNB module capable of receiving a full range of operating frequencies from any IP satellite around the globe. The PLL LNB incorporates user programmable support of an unlimited number of LO (Local Oscillator) frequencies. This uniquely innovative capability of remotely changing the frequencies of the Intellian LNB makes this GX antenna by far the only system that is ready for Global Ka band VSAT IP broadband service to date. FCC and ETSI Standards ComplianceThe Intellian GX100 is designed to meet or exceed FCC and ETSI specifications, as well as Res EN60945, EN60950, R&TT, DNV2.4 Class C and MIL-STD-167-1A specifications. Auto Beam Switching via OpenAMIP and Comtech ROSSIntellian GX100 supports ABS via OpenAMIP protocol of iDirect and the ROSS Open Antenna Management (ROAM) protocol of Comtech. This allows vessels to transit all the worlds oceans without having to switch out RF equipment such as modems, BUCs or LNBs. Simplified InstallationAs with all Intellian Technologies VSAT antennas, installing the GX terminal onboard your vessel is a quick and easy process when you utilize Digisat's factory trained and certified maritime satcom technicians. 3 Year Parts, 1 Year Labor Warranty
High-speed performance grade maritime internet service from Digisat is also is available with this antenna. Link to marine broadband IP access services
Ka-Band System Speed Test Video
|

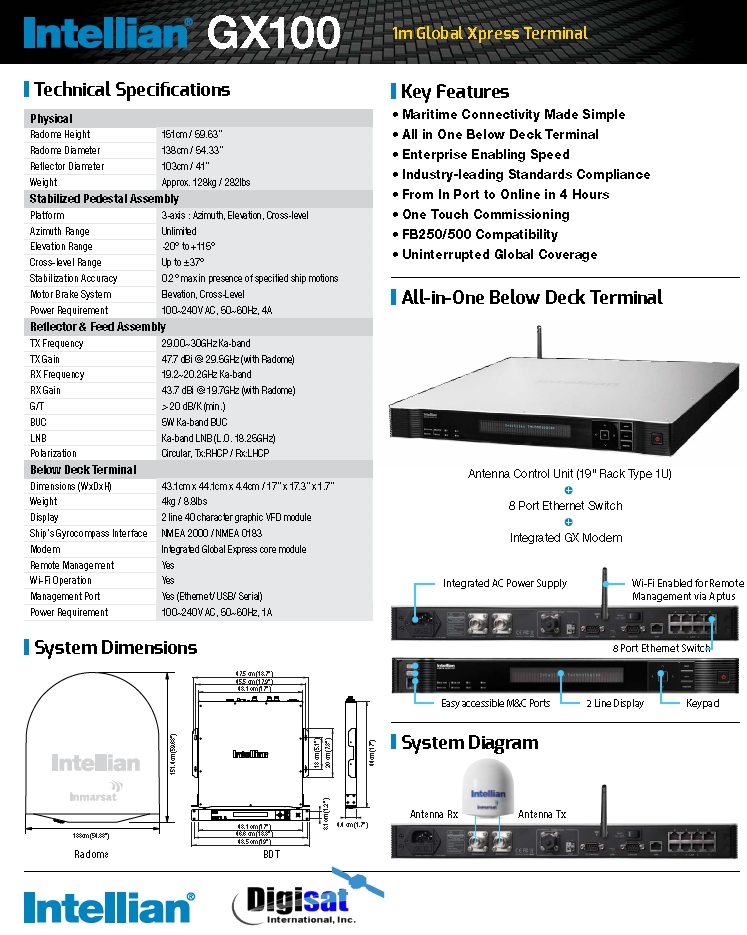

RADOME & ANTENNA
Radome Height 151.4 cm (59.63 inch)
Radome Diameter 138 cm (54.33 inch)
Reflector Diameter 103 cm (41 inch )
Weight Approx. 128 kg (282 lbs)
STABILIZED PEDESTAL ASSEMBLY
Pedestal Type 3-axis (Azimuth, Elevation, Cross-level)
Azimuth Range Unlimited
Elevation Range -20° ~ 115°
Cross Level Range Up to ±37°
Motor Brake System Elevation, Cross Level
REFLECTOR & FEED ASSEMBLY
TX Frequency 29.0 ~ 30.0 GHz Ka-band
TX Gain 47.7 dBi @ mid band
RX Frequency 19.2 ~ 20.2 GHz Ku-band
RX Gain 43.7 dBi @ mid band
G/T 20.1 dB/K (Typ.)
BUC Power 5W Ka-band
LNB Ka-band LNB (L.O. 18.25 GHz)
Polarization- Circular, Tx: RHCP, Rx: LHCP
BELOW DECK TERMINAL
Dimensions (W × D × H) 43.1cm × 44.1cm × 4.4 cm (17 inch × 17.3 inch × 1.7 inch)
Weight 4 kg (8.8 lbs)
Display 2 line 40 character graphic VFD module
Ship’s Gyrocompass Interface NMEA / NMEA 2000
Modem Interface- Integrated Global Express core module
Remote Management
Wi-Fi Operation
Management via Port Ethernet / USB / Serial
Power Requirement 100~240V AC, 50~60Hz, 1A
Download speeds up to 50Mbps and seamless worldwide coverage. Approved for accessing the new High Speed Inmarsat Global Xpress Broadband Network while at sea underway.
