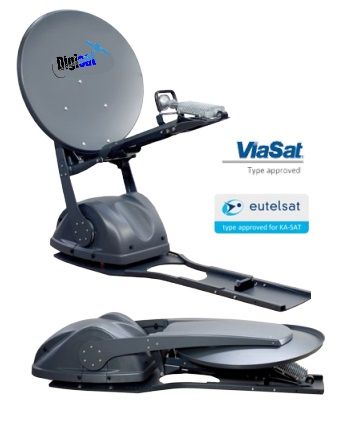

C-Com iNetVu Ka-75V 75cm Ka-Band Drive-Away Antenna

Winegard WV750A

Winegard WV750A 75cm Vehicle Mount Ka-Band Exede Internet Antenna

Login To See Price
SKU
CCIN-Ka-75V
C-Com iNetVu Ka-75V 75cm Ka-Band Drive-Away Antenna is available to buy in increments of 1

Easy vehicle mounting, fully compatible and compliant for use with Viasat Exede Enterprise services and KA-SAT Newsspotter Newsgathering platforms by Eutelsat

iNetVu Ka-75V Ka-Band Drive-Away Antenna

The industry leading C-Com iNetVu Ka-75V Ka-Band Vehicle Mount Drive-Away VSAT Antenna System is a 75 cm autopointing and auto acquistion system that can be easily roof mounted on any type of vehicle. The Ka-75V is designed to access all of the new Ka-Band broadband satellite services being delivered over satellites such as Viasat-1, Eutelsat and Yahsat. Fully certified and compliant for use with all ViaSat Exede Enterprise services, this antenna features the ultimate in portability, simple setup and ease of operation by all non technical personnel.

iNetVu Ka-75V antenna is approved for use on the Viasat Exede Network and Eutelsat Skylogic Tooway

Prime Features

iNetVu Ka-75V Features Tab One-Piece, high surface accuracy, offset feed, steel reflector

iNetVu Ka-75V Features Tab Heavy duty feed arm capable of supporting up to 5kg (10lbs) Ka-Band BUC or TRIA

iNetVu Ka-75V Features Tab Designed to work with the iNetVu® 7024 controller

iNetVu Ka-75V Features Tab Works seamlessly with the world’s emerging residential and commercial VIASAT / KASAT satellite Surfbeam II modems

iNetVu Ka-75V Features Tab 2 Axis motorization

iNetVu Ka-75V Features Tab Supports manual control when required

iNetVu Ka-75V Features Tab One button, auto-pointing controller acquires Ka-band satellite within 2 minutes

iNetVu Ka-75V Features Tab Locates satellites using the most advanced satellite acquisition methods

iNetVu Ka-75V Features Tab Supports Skyware Global 75 cm Ka antenna

iNetVu Ka-75V Features Tab Compliant with VIASAT-I & EUTELSAT KASAT Services

iNetVu Ka-75V Features Tab Standard 2 year warranty


Compact Stowed Configuration

Ka75V shown in its stowed position

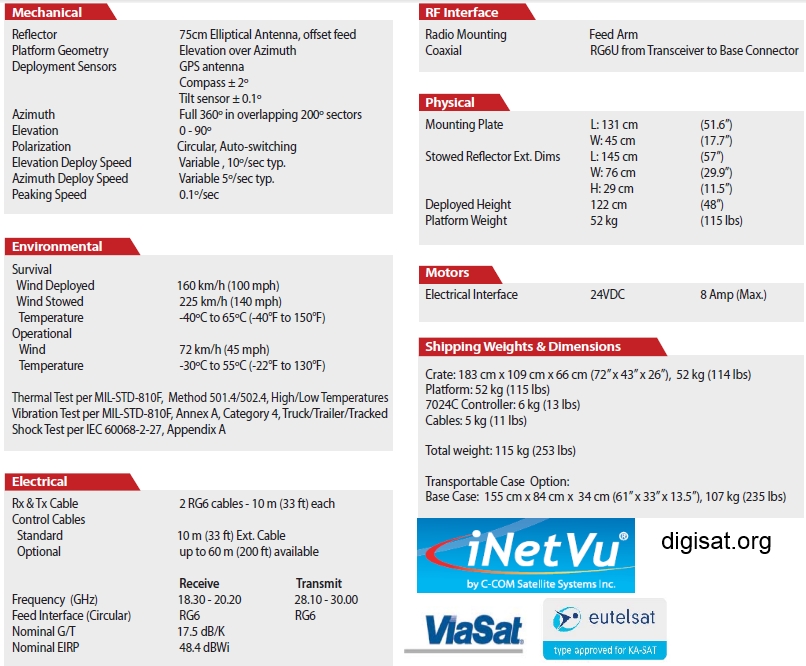

iNetVu Ka75 Specifications

Mechanical

specs tab Reflector 75cm Elliptical Antenna, off set feed
specs tab Platform Geometry Elevation over Azimuth
specs tab Deployment Sensors GPS antenna
specs tab Compass ± 2º
specs tab Tilt sensor ± 0.1º
specs tab Azimuth Full 360º in overlapping 200º sectors
specs tab Elevation 0 - 90º
specs tab Elevation Deploy Speed Variable , 10º/sec typ.
specs tab Azimuth Deploy Speed Variable 5º/sec typ.
specs tab Peaking Speed 0.1º/sec

Environmental

specs tab Survival
specs tab Wind Deployed 160 km/h (100 mph)
specs tab Wind Stowed 225 km/h (140 mph)
specs tab Temperature -40ºC to 65ºC (-40°F to 150°F)
specs tab Operational
specs tab Wind 72 km/h (45 mph)
specs tab Temperature -30ºC to 55ºC (-22°F to 130°F)
specs tab Thermal Test per MIL-STD-810F, Method 501.4, High/Low Temperatures
specs tab Vibration Test per MIL-STD-810F, Annex A, Category 4, Truck/Trailer/Tracked
specs tab Shock Test per IEC 60068-2-27

Electrical

specs tab Rx & Tx Cable 2 RG6 cables - 10 m (33 ft) each
Control Cables
specs tab Standard 10 m (33 ft) Ext. Cable
specs tab Optional up to 60 m (200 ft) available
Receive Transmit
specs tab Frequency (GHz) 18.30 - 20.20 28.10 - 30.00
specs tab Feed Interface (Circular) RG6 RG6
specs tab Nominal G/T 17.5 dB/K
specs tab Nominal EIRP 48.4 dBW

RF Interface

specs tab Radio Mounting Feed Arm
specs tab Coaxial RG6U from Transceiver to Base Connector

Physical

specs tab Mounting Plate L: 131 cm (51.6”)
specs tab W: 45 cm (17.7”)
specs tab Stowed Refl ector Ext. Dims L: 145 cm (57”)
specs tab W: 76 cm (29.9”)
specs tab H: 29 cm (11.5”)
specs tab Deployed Height 122 cm (48”)
specs tab Platform Weight 52 kg (115 lbs)

Motors

specs tab Electrical Interface 24VDC 8 Amp (Max.)

Shipping Weights & Dimensions

specs tab Crate: 183 cm x 109 cm x 66 cm (72” x 43” x 26”), 52 kg (114 lbs)
specs tab Platform: 52 kg (115 lbs)
specs tab 7024C Controller: 6 kg (13 lbs)
specs tab Cables: 5 kg (11 lbs)
specs tab Total weight: 115 kg (253 lbs)
specs tab Transportable Case Option:
specs tab Base Case: 155 cm x 84 cm x 34 cm (61” x 33” x 13.5”), 107 kg (235 lbs)

Sporting event coverage, Audio & Video Broadcast, Remote Internet Access, Satellite News Gathering, Telemedicine, Disaster Communications, Oilfield Communications
