iNetVu FLY-98V 98cm Ka-Band Compact Flyaway Auto-Pointing VSAT Antenna
Fully compliant for use on Exede Ka-Service by ViaSat and on KA-SAT NEWSSPOTTER NEWSGATHERING service by Eutelsat
FLY-98V .98M Compact Flyaway Auto-Pointing Ka-Band Antenna
The iNetVu FLY-98V Flyaway Antenna is a 98 cm satellite antenna system which is a highly portable, self-pointing, auto-acquire unit that is configurable with the iNetVu 7710 Controller providing fast satellite acquisition within minutes, anytime anywhere. It can be assembled in 10 minutes by one person.
Auto Satellite Acquisition
The FLY-98V series antenna automatically locates the satellite without any manual intervention, which makes this system an ideal choice for users without any satellite experience.
Key Features
One-Piece, high surface accuracy, offset feed, steel reflector
Heavy duty feed arm capable of supporting up to 5kg (10lbs) Ka transceiver
Designed to work with the iNetVu 7710 Controller
Works seamlessly with the world’s emerging commercial ViaSat /KA-SAT satellite Surfbeam II/PRO Auto-acquire modems
Auto beam select on KA-SAT Tooway services
2 Axis motorization
Supports manual control when required
One button, auto-pointing controller acquires Ka-band satellite within 2 minutes
Field upgradable to Ku-band
Captive hardware / Fasteners
10 minute assembly by one person, no tools required
Compact packaging; 3 ruggedized cases
Supports Skyware Global 98 cm Ka antenna
Standard 2 year warranty
Application Versatility
Operating in Ka-band frequencies, the iNetVu FLY-98V system is easily configured to provide instant access to satellite communications for any application that requires reliable and/or remote connectivity in a rugged environment. This next generation Flyaway Ka terminal delivers affordable broadband Internet services (High-speed access, Video & Voice over IP, file transfer, e-mail or web browsing). Ideally suited for industries such as Oil & Gas Exploration, Military Communications, Disaster Management, SNG, Emergency Communications Backup, Cellular Backhaul and many others.

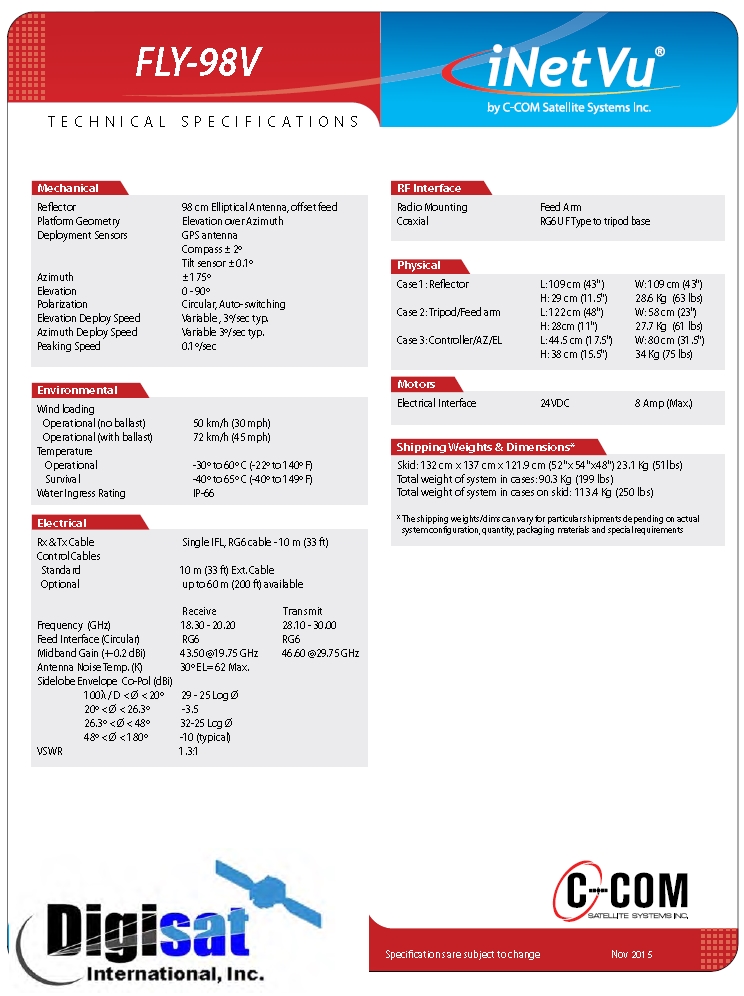

Specifications
Reflector 98 cm Elliptical Antenna, off set feed
Platform Geometry Elevation over Azimuth
Deployment Sensors GPS antenna
Compass ± 2º
Tilt sensor ± 0.1º
Azimuth ± 175º
Elevation 0 - 90º
Polarization Circular, Auto-switching
Elevation Deploy Speed Variable , 3º/sec typ.
Azimuth Deploy Speed Variable 3º/sec typ.
Peaking Speed 0.1º/sec
Environmental
Wind loading: Operational (no ballast) 50 km/h (30 mph), Operational (with ballast) 72 km/h (45 mph)
Temperature Operational -30º to 60º C (-22º to 140º F)
Survival -40º to 65º C (-40º to 149º F)
Water Ingress Rating IP-66
Electrical
Rx & Tx Cable Single IFL, RG6 cable - 10 m (33 ft)
Control Cables: Standard 10 m (33 ft) Ext. Cable, Optional up to 60 m (200 ft) available
Receive Transmit Frequency (GHz) 18.30 - 20.20 28.10 - 30.00
Feed Interface (Circular) RG6 RG6
Midband Gain (+-0.2 dBi) 43.50 @19.75 GHz 46.60 @29.75 GHz
Antenna Noise Temp. (K) 30º EL= 62 Max.
Sidelobe Envelope Co-Pol (dBi)
100λ / D < Ø < 20º 29 - 25 Log Ø
20º < Ø < 26.3º -3.5
26.3º < Ø < 48º 32-25 Log Ø
48º < Ø < 180º -10 (typical)
VSWR 1.3:1
RF Interface
Radio Mounting Feed Arm
Coaxial RG6U F Type to tripod base
Viasat Exede Ka-Band service and Eutelsat KA-SAT NEWSSPOTTER NEWSGATHERING
