C-Com iNetVu FLY-75V .75M Ka-Band Compact Flyaway SNG Antenna
Highly Transportable, 75cm Antenna, Excellent for remote SNG applications or high throughput internet access
FLY-75V Transportable Flyaway VSAT Antenna
The ultra rugged iNetVu C-Com FLY-75V .75m Portable Flyaway SNG VSAT Antenna System is an ultra compact, highly portable, fully motorized tripod based system that features "one touch" auto acquisition capability. Simple to transport and easy to deploy by all non-technical personnel, this powerful terminal enables remote users to access high throughput internet services via satellite.
Ka-Band Compliant
Fully certified and compliant for use on Exede Enterprise Ka Service by ViaSat and on KA-SAT NEWSSPOTTER NEWSGATHERING service by Eutelsat
Heavy Duty Ultra-Compact Mount
The FLY-75V series also provides a rugged mount platform that can withstand high winds and extreme atmospheric conditions. This system comes complete with light weight aluminum cases and can be setup and made operational in less than 10 minutes.
Auto Satellite Acquisition
The FLY-75V series antenna automatically locates the satellite without any manual intervention, which makes this system an ideal choice for users without any satellite experience.
Key Features
One-Piece, high surface accuracy, offset feed, steel reflector
Heavy duty feed arm capable of supporting up to 5kg (10lbs) Ka transceiver
Designed to work with the iNetVu 7710 Controller
Works seamlessly with the world’s emerging commercial
ViaSat / KA-SAT satellite Surfbeam II/PRO Auto-acquire modems
Auto beam select on KA-SAT Tooway services
2 Axis motorization
Supports manual control when required
One button, auto-pointing controller acquires Ka-band satellite within 2 minutes
Captive hardware / Fasteners
10 minute assembly by one person, no tools required
Compact packaging; 2 ruggedized cases
Supports Skyware Global 75 cm Ka antenna
Standard 2 year warranty

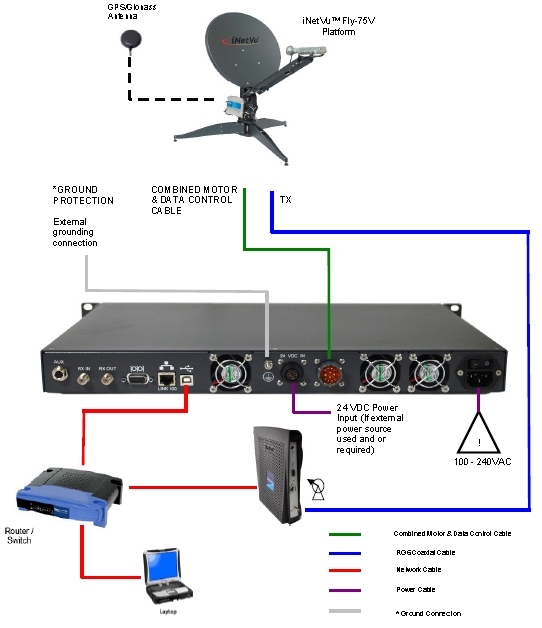

Easy BUC and Modem Integration
The FLY-75V Series transportable antenna is easily integrated with the very latest RF components from ViaSat, NJRC, iDirect, Eutelsat Tooway and more. Complete turnkey flyaway systems can be provided to meet your exact application's requirements.

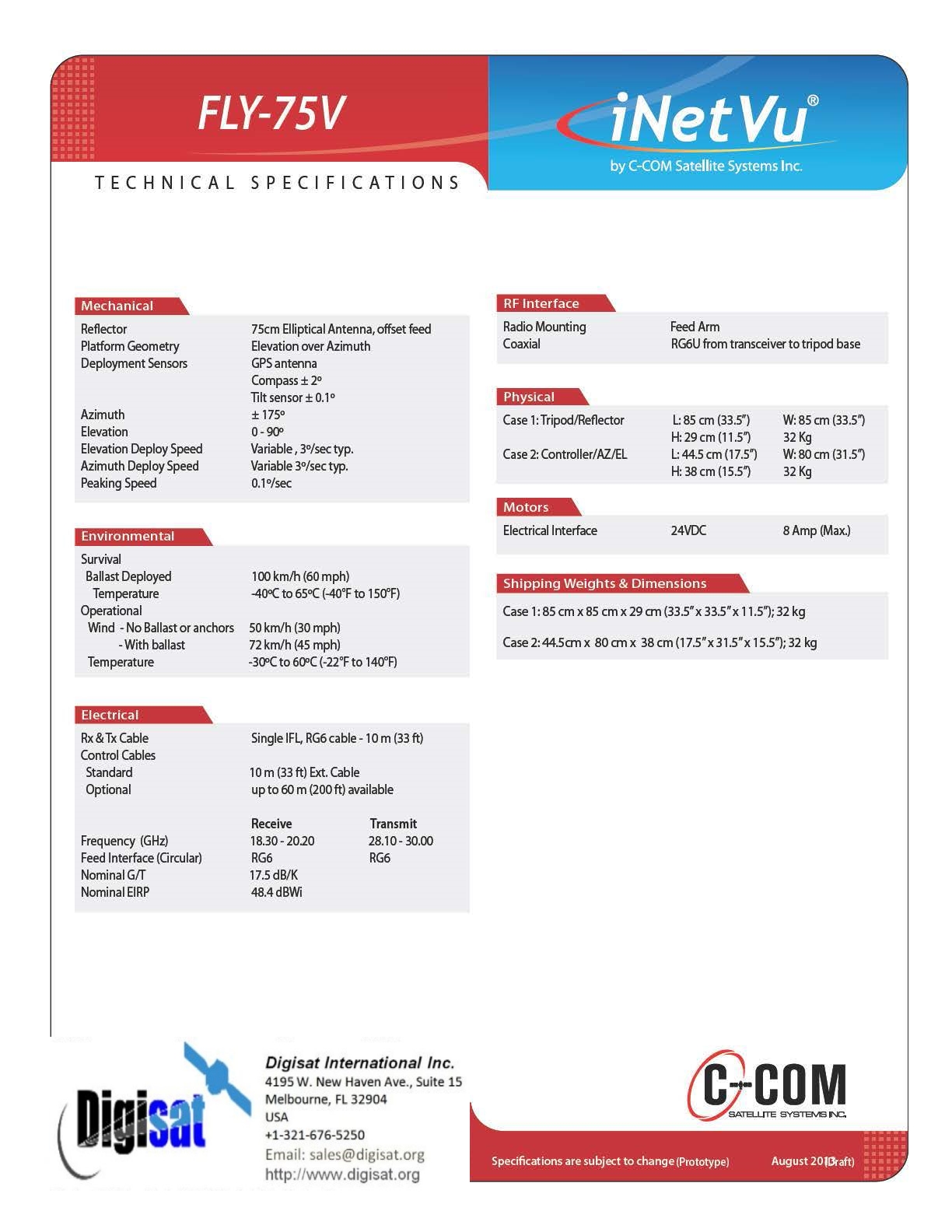

Specifications
Reflector- 75cm Elliptical Antenna, offset feed
Platform Geometry- Elevation over Azimuth
Radio Mounting- Feed Arm
Coaxial- RG6U from transceiver to tripod base
Deployment Sensors- GPS antenna Compass ± 2º Tilt sensor ± 0.1º
Azimuth- ± 175º
Elevation- 0 - 90º
Elevation Deploy Speed- Variable , 3º/sec typ. Azimuth Deploy Speed
Variable 3º/sec typ.
Peaking Speed- 0.1º/sec
Environmental
Survival
Ballast Deployed 100 km/h (60 mph)
Temperature -40ºC to 65ºC (-40°F to 150°F)
Operational
Wind - No Ballast or anchors 50 km/h (30 mph)
- With ballast 72 km/h (45 mph) Temperature, -30ºC to 60ºC (-22°F to 140°F)
Electrical
Rx & Tx Cable Single IFL, RG6 cable - 10 m (33 ft) Control Cables
Standard 10 m (33 ft) Ext. Cable
Optional up to 60 m (200 ft) available
|
|
Receive |
Transmit |
|
Frequency (GHz) |
18.30 - 20.20 |
28.10 - 30.00 |
|
Feed Interface (Circular) |
RG6 |
RG6 |
|
Nominal G/T |
17.5 dB/K |
|
|
Nominal EIRP |
48.4 dBWi |
|
Remote SNG, Oil and Gas Communications, Disaster Recovery Communications, Tactical Communications
