C-Com iNetVu FLY-1202V 1.2M ViaSat Exede Ka-Band Portable Auto-Acquire Antenna
Viasat and Eutelsat type approved for Ka-Band, field up-gradable to Ku
FLY-1202V 1.2M Portable Auto-Acquire VSAT Antenna

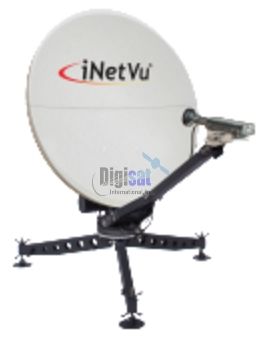

The iNetVu FLY-1202V 1.2M Flyaway Ka-band Antenna System is a highly portable, self-pointing, auto-acquire unit that is configurable with the iNetVu 7710 Controller and can be assembled in less than 15 minutes by one person. The antenna features a 2-piece segmented glass fiber reinforced reflector with compact pedestal and is designed to be value priced while providing exceptional performance in a light weight package.
Auto Satellite Acquisition
The FLY-1202V series antenna automatically locates the satellite without any manual intervention, which makes this system an ideal choice for users without any satellite experience.
Key Features
One button auto-pointing controller
2 Axis motion Ka-band
Airline transportable
Supports manual control when required
Designed to work with the iNetVu® 7710 Controller
Captive hardware / fasteners
1.2m offset, prime focus, 2-piece thermoset molded refl ector
Supports General Dynamic 1.2m antenna
No tools required for assembly / disassembly
Less than 15 minutes assembly time, one person job
Elevation-over-azimuth pedestal provides excellent stiffness characteristics and convenience for the user
ViaSat/Eutelsat compliant
Compact packaging, 4 ruggedized shipping cases
Minimal maintenance required
Can be easily converted to support Ku-band
Standard 2 year warranty
Application Versatility
The FLY-1202V Flyaway System is easily configured to provide instant access to satellite communications for any application that requires reliable and/or remote connectivity in a rugged environment. Ideally suited for industries such as Disaster Management, Military, Oil & Gas Exploration, Mining, Construction, Mobile Offi ces and Emergency Services.
Specifications
Antenna Size & Material 1.2m Glass fibre reinforced polyester (1)
Platform Geometry Elevation over azimuth
Antenna optics 2-piece segmented, Optional 1-piece
Offset angle 16.97º
Azimuth ±175º
Elevation 5º to 90º
Polarization Circular, auto-switching
Elevation deploy speed Variable 6º / sec
Peaking speed 0.2º / sec
Environmental
Wind loading: Operational: No ballast or anchors 48 km/h (30 mph), with ballast or anchors 72 km/h (45 mph)
Temperature: Operational -30º to 60º C (-22º to 140º F)
Survival -40º to 65º C (-40º to 149º F)
Rain: Operational 10 cm/h, Survival 15 cm/h
Solar radiation 360 BTU / h / sq. ft
Thermal Test per MIL-STD-810F, Method 501.4, High/Low Temperatures
Vibration Test per MIL-STD-810F, Annex A, Category 4, Truck/Trailer/Tracked
Shock Test per IEC 60068-2-27
Electrical
Electrical Interface 24VDC 8 Amp (Max.)
Rx & Tx cables Single IFL, RG6 cable - 10 m (33 ft)
Control cables
Standard 10m (33 ft) ext. cable
Optional up to 60m (200 ft) available
RF Interface
Radio mounting Feed arm
Coaxial RG6U F type
Ka-Band
Frequency (GHz) 19.70 - 20.20 29.50 - 30.00
Midband Gain (± .2dB) 46.5 49.9
EIRP (Nominal) 54 dBWi @ 29.75 GHz
G/T (Nominal) 23 dB/K @ 19.95 GHz
Antenna Noise Temp. (K) 20º EL= 107 / 40º EL= 89
Sidelobe Envelope Co-Pol (dBi)
1.5º <Θ <20º 29-25 LogΘ
20º <Θ < 26.3º -3.5
26.3º <Θ < 48º 32-25 LogΘ
48º <Θ <180º -10 Typical
Cross Polarization -25 dB in 1dB contour
Any angle of axis -25 dB (Max.)
Feed Interface Type F
VSWR 1.3:1 (Max.)
Viasat Exede Satellite Internet service access and Eutelsat Ka-Band services
