iNetVu 1801 1.8M C/Ku-Band Drive-Away Vehicle VSAT Antenna
Vehicular mounted motorized 1.8M auto-pointing SNG VSAT antenna
1801 1.8M Auto-Acquire Vehicle SNG Antenna
The iNetVu 1801 Drive-Away Vehicular VSAT Antenna is a 1.8m auto-acquire satellite antenna system which can be mounted on the roof of a vehicle for Broadband Internet Access over any configured satellite. The system works seamlessly with the iNetVu 7710 controller for lightning fast satellite acquisition even in remote locations.
Auto Satellite Acquisition
The iNetVu 1801 series antenna automatically locates the satellite without any manual intervention, which makes this system an ideal choice for users without any satellite experience.
Key Features
One-Piece precision offset, thermoset-molded reflector with back cover
Optional 2pcs and 4pcs refl ector available
Heavy duty feed arm capable of supporting up to 11kg (25 lbs) RF Electronics (LNB & BUC)
Designed to work with the iNetVu 7710 controller
Works seamlessly with the world’s most popular commercially available satellite modems
3 Axis motorization
Supports manual control and hand crank when required
One button, auto-pointing controller acquires any Ku or C-band satellite within 2 minutes
Locates satellites using the most advanced satellite acquisition methods
Supports Skyware Global 1.8m antenna Type 183
Standard 2 year warranty
Application Versatility
Operating in Ku or C-band, the 1801 system is easily configured to provide instant access to satellite communications for any
application that requires reliable and/or remote connectivity in a rugged environment. Ideally suited for industries such as Oil & Gas Exploration, Military Communications, Disaster Management, SNG, Emergency Communications Backup, Cellular Backhaul and many others.

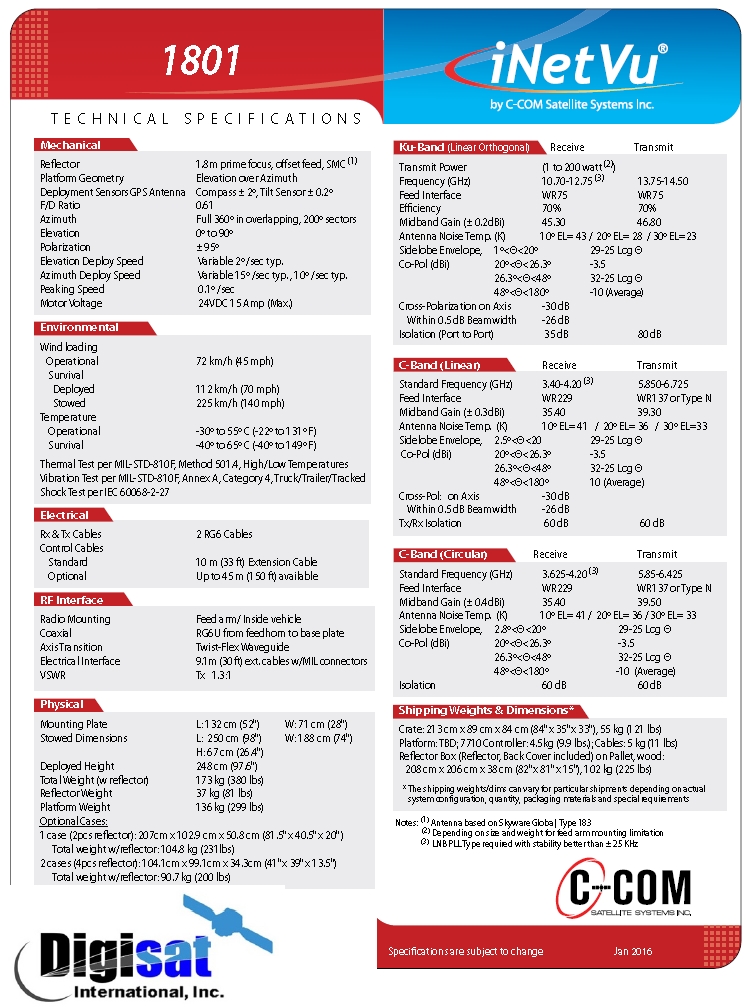

Specifications
Reflector 1.8m prime focus, off set feed, SMC (1)
Platform Geometry Elevation over Azimuth
Deployment Sensors GPS Antenna Compass ± 2º, Tilt Sensor ± 0.2º
F/D Ratio 0.61
Azimuth Full 360º in overlapping, 200º sectors
Elevation 0º to 90º
Polarization ± 95º
Elevation Deploy Speed Variable 2º /sec typ.
Azimuth Deploy Speed Variable 15º /sec typ. , 10º /sec typ.
Peaking Speed 0.1º /sec
Motor Voltage 24VDC 15 Amp (Max.)
Environmental
Wind loading
Operational 72 km/h (45 mph), Survival Deployed 112 km/h (70 mph), Stowed 225 km/h (140 mph)
Temperature
Operational -30º to 55º C (-22º to 131º F)
Survival -40º to 65º C (-40º to 149º F)
Thermal Test per MIL-STD-810F, Method 501.4, High/Low Temperatures Vibration Test per MIL-STD-810F, Annex A, Category 4, Truck/Trailer/Tracked Shock Test per IEC 60068-2-27
Electrical
Rx & Tx Cables 2 RG6 Cables
Control Cables: Standard Optional 10 m (33 ft) Extension Cable Up to 45 m (150 ft) available
RF Interface
Radio Mounting Feed arm/ Inside vehicle
Coaxial RG6U from feedhorn to base plate
Axis Transition Twist-Flex Waveguide
Electrical Interface 9.1m (30 ft) ext. cables w/MIL connectors
VSWR Tx 1.3:1
Ku-Band (Linear Orthogonal)
Transmit Power Frequency (GHz) (1 to 200 watt (2)) 10.70-12.75 (3) 13.75-14.50
Feed Interface WR75 WR75
Efficiency 70% 70%
Midband Gain (± 0.2dBi) 45.30 46.80
Antenna Noise Temp. (K) 10º EL= 43 / 20º EL= 28 / 30º EL=23
Sidelobe Envelope, 1º<Θ<20º 29-25 Log Θ
Co-Pol (dBi) 20º<Θ<26.3º -3.5
26.3º<Θ<48º 32-25 Log Θ
48º<Θ<180º -10 (Average)
Cross-Polarization on Axis -30 dB
Within 0.5 dB Beamwidth -26 dB
Isolation (Port to Port) 35 dB 80 dB
Remote Newsgathering, Video Uplinks and other remote applications where a vehicle mounted satellite internet antenna system is required.
