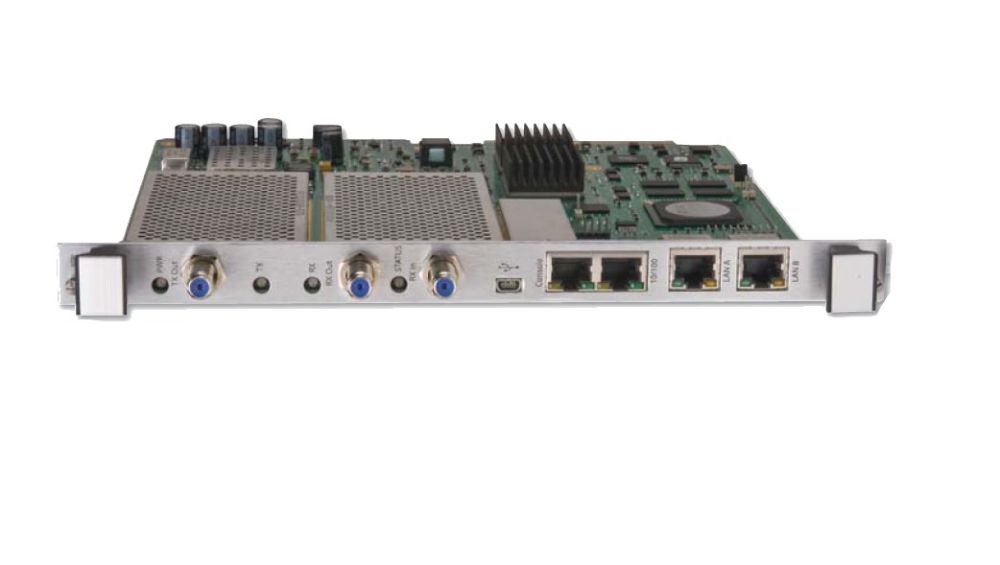

iDirect Evolution eM1D1 & eM1D1-FIPSL2 Hub Line Card
Compatible with Series 12000 Universal Hub (4-slot) and Series 15000 Universal Hub chassis Requires iDX 1.1 software or above
eM1D1 eM1D1-FIPSL2 DVB-S2 Line Card
The iDirect Evolution Series eM1D1 line card is suited for supporting secure voice, data, and video communication links for mission-critical military and COTM broadband applications operating in either DVB-S2/ACM or iNFINITI TDM mode on the outbound. The eM1D1 line card supports TDMA or SCPC Return* with optional Spread Spectrum and extremely efficient FEC with 2D 16-State coding on the inbound. The line card features one modulator and one demodulator and is designed to meet the guidelines of MIL-STD 810F for operation in harsh environments.
Modem
One Modulator (Transmit one downstream carrier)
One Demodulator (Receive one upstream carrier)
Modulation
Downstream
DVB-S2/ACM or (iNFINITI TDM)
QPSK, 8PSK, 16APSK (BPSK, QPSK, 8PSK)
Upstream
D-TDMA or (SCPC Return*)
BPSK, QPSK, 8PSK (BPSK, QPSK, 8PSK)
FEC LDPC, 1/4–8/9; (TPC, 0.495 - 0.879) TPC**, 0.431–0.793
2D 16-State, 1/2-6/7 (2D 16-State 1/3- 6/7)
Maximum Carrier Rates
Symbol Rate Info Rate IP Data Rate
45 Msps1 (15 Msps)
150 Mbps1 (21 Mbps2)
149 Mbps1 (20 Mbps2)
7.5 Msps (15 Msps)
12.8 Mbps3 (24 Mbps4)
11.1 Mbps3 (20 Mbps4)
Notes: 1 16APSK, 8/9 FEC 2QPSK, .793 FEC 3QPSK, 6/7 FEC 4QPSK, 4/5 FEC
Maximum downstream and upstream data rates cannot be achieved simultaneously
Maximum rates are achieved under optimal conditions
Spread Spectrum
Chip Rate
Spreading Factor
(TDM: Up to 15 Mcps)
(TDM: 2, 4, 8)
Up to 7.5 Mcps (SCPC Return: 15 Mcps)
2, 4, 8, and 16 (SCPC Return: 2, 4, and 8)
Interoperability
Compatible with Series 12000 Universal Hub (4-slot) and Series 15000 Universal Hub chassis
Requires iDX 1.1 software or above
Interfaces
SatCom Interfaces
TxIF: Type-F, 950–2000 MHz (WGS), +5dBm/-35dBm
RxIF: Type-F, 950–2000 MHz (WGS), -5dBm composite/ -130+10*log(Fsym)dBm (min) single carrier
Data Interfaces
LAN: RJ-45
Two 100/1000Base-T, one 10/100Base-T
RS-232: RJ-45 (console connection)
Security
TRANSEC with FIPS 140-2 Level 2 Compliant***
Redundancy
Software Controlled, Hot-Swappable, and Auto-Failover
Weight
Model eM1D1: 1.2 lbs (0.6 Kg)
Model eM1D1-FIPSL2: 1.5 lbs (0.7 Kg)
Operating Temperature
-30° to +60°C (-22° to +140°F), tested in accordance with MIL-STD 810F
Radio Standards
EN 301-428 v1.3.1 — Ku-Band System Level Specification
EN 301-443 v1.3.1 — C-Band System Level Specification
Safety Standard
Complies with IEC 60950, EN 60950-1, UL 60950-1, CSA C22.2 No.60950-1-03
Emission Standard
Complies with EN 55022 Class A, FCC Part 15 Class A, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3
EMC/Immunity Standard
Complies with EN 55024, EN 301-489-1, EN 301-489-12, EN 61000-4-2, EN 61000-4-3,
EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
Certification
FCC, CE, and RoHS Compliant
* Linecard operates in Receive Only mode when using SCPC Return
** TPC not supported for use with DVB-S2 outbound in iDX 3.0 and above
*** Certification pending, FIPS-140-2 L2 compliance requires iDX 2.3 and above
DVB-S2/ACM or (iNFINITI TDM)
