International Datacasting TC-5006 Broadcast Video Transcoder is available to buy in increments of 1

SD and HD transcoding, Up to 4x HD and 8x SD transcodes per chassis, Audio transcoding or pass-through up to 8 pairs, Support for Closed Captions

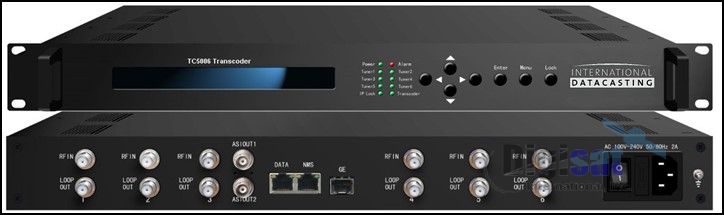

TC-5006 Broadcast Video Transcoder

This product has reached end of life and is no longer available.  Please contact us for a suitable replacement.

International Datacasting TC-5006 is a professional video transcoder for MPEG-2 and H.264 applications. With support for simultaneous SD and HD transcoding for any supported video codec at an industry leading price.

Highly Configurable

The IDC TC-5006 can be purchased with either six DVB-S/S2 or ASI inputs. This transcoder also supports advanced remultiplexing and can re-multiplex the multiple inputs into one single MPTS or output individual SPTS over ASI or IP.

IDC TC-5006 Network Configuration Diagram

Easy to use

There is a complete set of front panel button controls for easy configuration. The large LCD display is illuminated, and provides high contrast for visibility in direct sunlight. Control may be via the simple front panel interface or the integrated web browser controlled simple software interface.

Reliable and affordable

By using the latest integration of MPEG and low-power digital electronics technology, the TC-5006 delivers up to 8x SD or 4x HD transcodes in a single chassis to provide the most cost effective transcoder product on the market.

 STANDARD FEATURES

Transport Inputs

arrow Six (6) DVB-S/S2 inputs (TC-5006-S)

arrow Six (6) ASI inputs (TC-5006-A)

arrow IP input (MPTS or 8 x SPTS)

Transport Output

arrow 1 ASI output (re-multiplexed)

arrow 8xSPTS and 1xMPTS over UDP/RTP/RTSP,1000M Base-T Ethernet Interface  (UDP/RTP unicast / multicast)

BISS Descrambling

arrow Up to 8 services

Video Transcoding

arrow 4 x H.264 HD → 4 x MPEG2/H.264 HD

arrow 4 xH.264 HD → 4 x MPEG2/H.264 SD

arrow 8 x H264 SD → 8 x MPEG2 SD

arrow 4 x MPEG2 HD → 4 x MPEG2/H.264 HD

arrow 4 x MPEG2 HD → 4 x MPEG2/ H.264 SD

arrow 8 x MPEG2 SD → 8 x H.264 SD

STATUS AND CONTROL INTERFACES

7 button front panel control

Backlit LCD Display

Web based control management

POWER REQUIREMENTS

Supply Voltage

100 to 240 VAC, 50 or 60 Hz

Power Consumption

20 Watts maximum

PHYSICAL PARAMETERS

Chassis

1RU rackmount

Dimensions (H, W, D)

4.5 cm x 43.0 cm x 40.5 cm (1.77” x 17” x 15.9”)

Weight

4.8 kg (10.6 lbs)

ENVIRONMENTAL CONDITIONS

Operating Temperature

Storage Temperature

0° to 45° C (32° to 113° F)

-20° to 80° C (-4° to 176° F)

Transcoding between MPEG-2 and H.264 (any-to-any), Six ASI or DVB-S2 inputs for high density
