Foxcom Sat-Light Gold Fiber IFL System is available to buy in increments of 1

3RU & 1RU Chassis, Outdoor Systems, Multiple Card Options and frequency options for a wide variety of IFL applications

Sat-Light Gold Fiber IFL System

Foxcom provides both indoor and outdoor housings for the Gold Series of Fiber Optic Interfacility Links. The indoor 19” 3RU chassis has 8 slots for any combination of transmit and receive cards. All cards are hot swappable and are powered by single or dual switching power supply units.

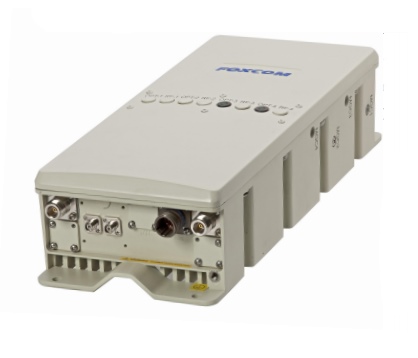

 Focom 4000 Outdoor ODU

Foxcom’s 4000 Series outdoor enclosure (ODU) provides

weatherproof protection for all Gold Series transmitters and receivers.

Up to 4 Sat-Light/Gold cards can be housed in the ODU eliminating

the need for environment controlled shelters.

















Foxcom 4004





The Sat-Light IFLs function as a transparent link between the satellite

antenna, Network Operations Center (NOC), control room, or field

operations centers. System limitations using coaxial cable are

overcome by the superior performance of fiberoptic transport.

When configured with transmitters in a downlink application both

satellite polarities can be accommodated. In an uplink configuration an

ODU mounted near the antenna, holding several receivers, can feed a

standalone up-converter, block converter (BUC), or transceiver. The

series 4003 ODU can also be configured as a transceiver for VSAT

applications. The unit includes an integrated power supply.



Foxcom Gold Series Indoor and Outdoor chassis's house the following hot swappable cards:

GL7430T / GL7430R RF Link Wideband Optical

Foxcom Wideband

 - Optimized for Professional Satellite and Wireless Applications

- Wide Dynamic Range

- 10Km Transmission Distance

- Selectable VAR/AGC/MGC

- Front Panel Test Port

- Powerful Monitoring Features

- Compatible with all 1st Generation Sat-Light Products

Foxcom Sat-Light/Gold Wideband Optical Link Datasheet



GL7220L L-Band Downlink

Foxcom L-Band Downlink CardFoxcom's Sat-Light/Gold L-Band Interfacility Link offers a high performance, cost effective alternative to conventional coaxial-cabled systems. The Gold L-Band IFL covers the range of 950 to 2200MHz. The Gold Series L-Band link is designed for a wide range of satellite power levels. Foxcom’s high dynamic range DFB laser delivers exceptional signal quality for the most demanding applications.

The new Gold series is compatible with first generation Sat-Light 7000 Series platform. The Gold Series support L-Band, 70/140MHz IF, Wide Band (10-2200 MHz), 10MHz Reference, Redundancy, M & C, SNMP, Ethernet, and Serial Data Communication.

The link consists of an optical transmitter, which receives the RF signal from an LNB or LNA, and an optical receiver that connects to the indoor receiver equipment. All satellite modulation schemes are accommodated –digital or analog. Inherently low phase is achieved by direct modulation of the laser diode.   GL7220 Datasheet

GL7230L L-Band Uplink

 Foxcom gold l-band uplink

The Gold Series L-Band link is designed for a wide range of satellite UL (Uplinking) facilities whereby high input power levels are required. Foxcom’s high dynamic range DFB laser delivers exceptional signal quality for the most demanding applications.  GL7230L Datasheet







GL952SD S-Band Link

 Foxcom s-band gl952sd

- High Input Power (-10 to –30dBm)

-10Km Transmission Distance

-Selectable AGC/MGC

-Front Panel Test Port

-Powerful Monitoring Features

-Compatible with all 1st Generation Sat-Light Products

  GL952SD Datasheet


GL7330 IF-Link 10 to 200MHz

 Foxcom 70-140 mhz

Foxcom's Sat-Light/Gold 70/140MHz IF Link offers a high performance, cost effective alternative to conventional coaxialcabled systems. Sat-Light/Gold IF-Band IFL operates in the range of 10 to 200MHz.

GL7330 Datasheet










GL7130 Optical Link for 10MHz Reference Signals

 Foxcom 10 mhz

Foxcom's Sat-Light/Gold 10MHz Reference Signal Link offers a high performance, cost effective alternative to conventional coaxial-cabled systems. The Gold 10MHz Reference Signal optical link is designed for to meet the needs of a wide range of Satellite and professional VSAT applications.

GL7130 Datasheet





CHASSIS KITS:

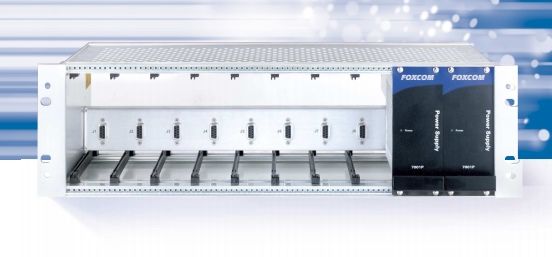

7180M Chassis and Power Supply

 Foxcom 7180m chassis
   - 3 RU 19’’ rack mount chassis with 8 “hot swap”     capacities

  - Chassis includes an integrated power supply         and capacity for a redundant supply

  - Switching power supplies

  - Standalone power supply for applications               without a rack

  - High MTBF (fanless power supply)

 7180M Datasheet

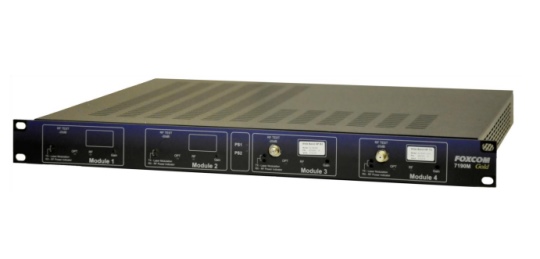

7190M Chassis

Foxcom 7190m chassis



  - 19 Inch 1RU Chassis compatible with all Sat-Light or  Sat-Light Gold modules.

  - Standard Dual, Hot swappable redundant AC Power   Supply.

  - Accommodates up to 4 Optical Transmitters/                 Receivers.

  - Available pre-loaded with Foxcom Passive RF and  Optical Components.





The FOXCOM 7190M Chassis is a standard 19” 1RU enclosure designed to be installed in equipment racks where only limited rack space is available.  The 7190M chassis can be populated with any combination of , up-to four, Sat-Light/Sat-Light Gold transmitters/receivers along with a variety of passive optical and RF components to provide a totally customized solution.

The 7190M Chassis is equipped with a dual hot swappable power supplies sufficient for any combination of transmitters and receivers as specified. Power to the two installed power supplies is via two separate AC connectors allowing the use of a backup power grid.

Power supply LED monitoring for transmitter/receiver control is from the front panel. Discrete monitoring and alarms are accessible using a dedicated M&C connector.  The 7190M chassis is field upgradable allowing the user to add future transmitters and receivers for increased capacity.   7190M Datasheet

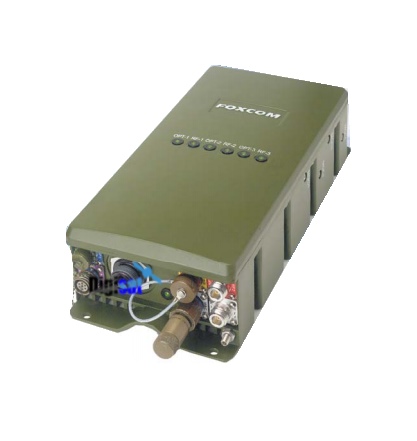

Foxcom Series 4004 Outdoor Unit (ODU)

Foxcom 4004



- IP-67 Enclosure for Extreme Outdoor Mounting Conditions

- Integrated Power Supply and Optional Redundant Power Supply

- Milspec Optical Connecters: TFOCA or Hermaphradidtic

- Suitable for Uplink or Downlink Applications

- 50 Ohm N-type Connecters

- Can include Bi-directional Serial Data or Ethernet Transceiver

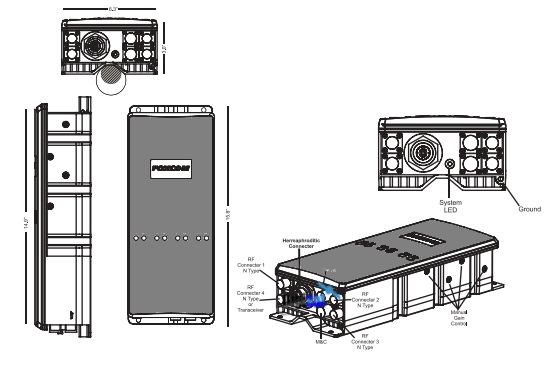

The Foxcom Series 4004 Outdoor Unit (ODU) is an outdoor enclosure providing IP-67weatherproof protection for Foxcom Sat-Light Interfacility Links. The 4004 series is built for extreme environments and rugged tactical use. Milspec TFOCA or hermaphradidtic type optical connecters can be specified offering unsurpassed performance in field conditions. SNMP support offer monitoring capabilities of active components in the ODU. The 4004 ODU can be populated with combinations of L-Band, 70/140 MHz IF, RF (C or X-Band) transmitters and receivers, or serial/Ethernet transceiver.  4004 Datasheet

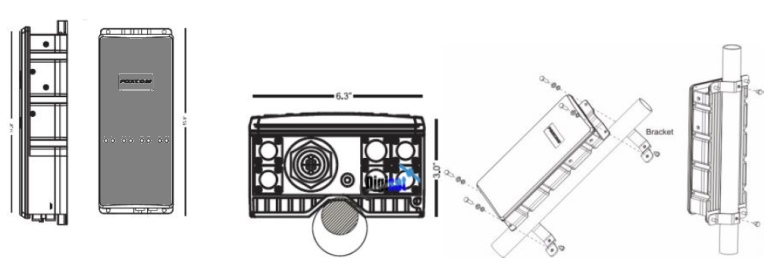

Foxcom 4000 Series Outdoor Unit (ODU)

Foxcom 4000

The Foxcom Series 4000 series Outdoor Unit (ODU) is an outdoor enclosure providing weatherproof protection for Foxcom Sat-Light Interfacility Links. Any Foxcom Interfacility Link component can be installed outdoors, even in extreme weather conditions, eliminating the need for environment-controlled shelters.The 4000 series ODU’s can be populated with any combination of (up to) four (4) transmitters and receivers, RF Switch and a variety of passive optical and RF components in order to provide a customized solution.

The ODU is available as a standard with a single internal power supply sufficient for any combination oftransmitters and receivers chosen. The ODU can also equipped with a backup power supply. Prime power tothe ODU is via a single weather tight connector from an AC power supply. A LED indicator showing operational status is provided on the ODU. Internal LNB power selection, monitoring and alarms are available via a dedicated M&C connector. The molded cast housing provides protection of the internal components from ambient weather conditions.  4000 Series Datasheet



Whether your requirements are for a single pre-engineered fiber optic IFL system or a fully engineered solution, Digisat can deliver a total turnkey solution including installation, integration and testing.


Questions?  US Toll Free: +1-855-DIGISAT   |   International: +1-321-676-5250  |   Contact US

Chassis/Power Supply Specifications

Parameter

7180M

Physical



Dimensions

19” W x 5.25” H x 7” D

Chassis Capacity

8 plug-ins

Operating temperature

-10º to 60º C

Storage temperature

-40º to 85º C

Electrical



Prime power

100 to 240 VAC, 50/60 Hz

90 W (max.)



AVAILABLE OPTIONS



Redundant Power Supply

Model 7001P

Relay Adaptor

Model 2380




Standalone Power Supply (7000S-STD)

The standalone power supplies are available in two primary input voltages; 110 or 220 VAC 50/60Hz. Each is a wall mount design power supply with sufficient power to supply any Foxcom IFL products. Additionally, there is sufficient power available to provide for installed options such as LNB powering.

The standalone power supply is provided with a 9 pin D type/female connector.



Parameter



Physical



Dimensions

2.6" W x 2.2" H x 3.2" D

Operating temperature

-10º to 60º C

Storage temperature

-40º to 85º C

Electrical



Prime Power Input

110 or 220 VAC, 50/60 Hz (user selected)

Output Power

15 VCD @ 800mA (max)

All RF Over Fiber Optic IFL applications including Satellite Earth Stations, Satcom Teleports and VSAT Networks
