Adtec Digital 10-Bit Multi-CODEC SD/HD Encoder - EN-210
Integrated DVBS/S2/S2X modulator supports IF and L-band with 10Mhz insertion and DVB-CID
Adtec EN-210 10-Bit SD/HD Encoder
Adtec Digital's EN-210 video contribution class encoder supports a massive amount of demanding HDTV broadcasting applications and offers multi-codec and transport flexibility, interoperability and feature richness. With support for SD/HD, AVC (H.264) and MPEG 2 video encoding and audio processing for up to sixteen audio channels, the 210 provides ultra-high quality video for your contribution workflows. Designed for concurrent ASI, IP, and RF transport, this 10-bit capable encoder offers robust IP options including: SMPTE 2022 FEC, RTP, UDP, RTMP and Zixi. An on-board L-Band and IF-Band modulator satisfies your DVB-CID requirements with premium DVB-S2X modes up to 256APSK.
SMPTE 2022 FEC
An on-board L-Band and IF-Band modulator satisfies DVB-CID requirements with premium DVB-S2X modes up to 256APSK.
With the ability to encode and concurrently transport services via ASI, IP and RF, the
210 series offers flexibility and reliability. The DVBS/S2/S2X modulator supports IF and L-band with 10Mhz insertion and DVB-CID. Modes range from QPSK up to 256APSK.
The lightweight and nearly silent 210 encoder offers amazing features and specifications:
- 1 RU chassis
- High Demand & Flexible AVC (H.264) 4:2:0 / 4:2:2 10-bit Video Encoding
- MPEG 2 4:2:2 & 4:2:0 video encoding
- 3G-SDI via 3G Copper and Fiber SFP Video Interfaces
- MP1L2, DD, AAC-LC, HE-AAC (2.0 & 5.1)
- Passthrough DD, Dolby E.,& LPCM
- ASI input for External Transport Stream Multiplexing
- Simultaneous ASI, RF (DVB-S2X and DVB-CID) and IP Transport (SMPTE 2022 FEC, UDP, RTP, RTMP, Zixi)
Weighs 10 pounds and offers incredible features and specifications in its ultra compact 1RU chassis.
- MPEG 1 Layer 2, Dolby Digital (AC3) 2.0 / 1.0 / 5.1 modes, AAC-LC, HE-AAC (v1 / v2) & AAC 6.0.
- ASI-Remuxing, RTMP & Zixi IP Streaming.
- 8PSK, 16APSK, 32APSK, 256APSK, DVB-CID, DVB-S2X & 54Mbaud.
The EN series can be purchased with or without the integrated modulator and offers multiple feature keys for flexibility and future-proofing. Please contact your sales representative for more details about these features and how they can be enabled on your device.

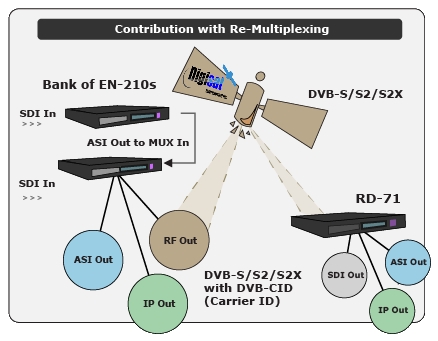

Video Contribution with Re-Multiplexing
- Tier One Sports Contribution
- Live Event Contribution
- At Home Production
- Diverse Applications Demanding Multi-Codec Flexibility
