SKU
CPI-KU-O
CPI Satcom Ku-Band Outdoor Travelling Wave Tube Amplifiers (TWTA) is available to buy in increments of 1

Frequencies from 13.75 to 14.50 GHz, Meets International Safety Standard EN-60215, Electromagnetic Compatibility 2004/108/EC and Harmonic Standard EN-61000-3-2 to satisfy worldwide requirements.

Antenna Mount Ku-Band TWTA

With the broadest spectrum of Ku-Band uplink amplifiers available in the industry, CPI's Satcom Division offers unequalled flexibility to configure your system for optimum performance. CPI Satcom provides Ku-Band outdoor amplifier solutions ranging in power from 200 watts to 750 watts CW. CPI Satcom's Ku-Band family of HPAs reflects the same exacting design standards and innovative technology found in all of its products, as well as more than a decade of experience fielding hundreds of amplifiers in this frequency range. All amplifiers are available as single units or in redundant or combined systems.

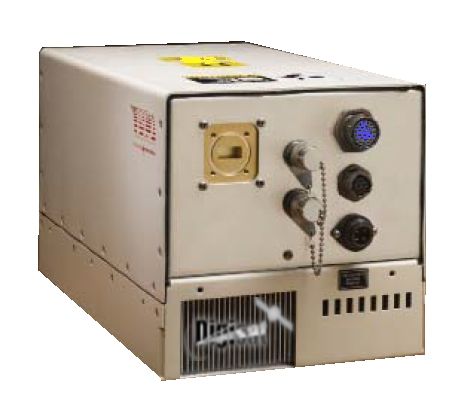

CPI Satcom Outdoor Ku-Band TWTA Front View

CPI Ku-Band TWTA Specifications

Model Number

Description

Frequency Range

Output Power

Peak Power

Average

CPI Ku-Band TWTA product tabs T02UO-2G

Outdoor

13.75 - 14.50

200



CPI Ku-Band TWTA product tabs T02UO-2G

Outdoor

12.75 - 14.50

200



CPI Ku-Band TWTA product tabs T04UO

Outdoor

13.75 - 14.00

400



CPI Ku-Band TWTA product tabs T04UO

Outdoor

12.75 - 14.00

400



CPI Ku-Band TWTA product tabs T07UO

Outdoor

13.75 - 14.50, 12.75 - 14.50

750



CPI Ku-Band TWTA product tabs T07UO Tropo

Outdoor for Tropo Applications

14.50 - 15.35,12.75 - 14.50 optional

600



CPI Ku-Band TWTA product tabs TL04UO

Outdoor SuperLinear TWTA

13.75 - 14.50



400

200

CPI Ku-Band TWTA product tabs TL07UO

Outdoor Peak Power TWTA

13.75 - 14.50



750

300

CPI Ku-Band TWTA product tabs TL12UO

Outdoor SuperLinear TWTA

13.75 - 14.50, 12.75 - 14.50



1250

540

CPI Ku-Band TWTA product tabs TL02UO

Outdoor SuperLinear BUC

13.75 - 14.50



250

up to 100

Amplifier Options:

Touch Panel Controller

CPI Amplifier Touch Panel Controller


Remote Controller

CPI 1RU Amplifier Remote Controller


Integrated Block Upconverter

CPI Satcom Integrated Amplifier Block Upconverter


High Voltage Test Set

CPI Satcom High Voltage Amplifier Test Set


Waveguide Switch Control Panel

CPI Ku-Band TWTA Outdoor Amplifier Specifications

Various Ku frequencies between 13.75 and 14.5 GHz>
