Comtech Radyne DVC240XR DVR240XR DVB Modulator Demodulator Card
DVB-S2 (EN 302 307) to 45 Msps / 190 Mbps
DVC240XR DVR240XR DVB Modulator Demodulator Card
This product has been designated end of life by the manufacturer. Please contact us for info on a suitable replacement.
The Comtech Radyne DVC240XR offers DVB-S2 and up to 32APSK modulation and features a DVC240XR demodulator card which provides support for up to Q/8/16-PSK.

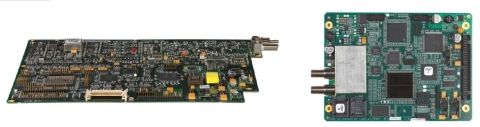

The DVC240XR is a full featured DVB-S2, DVB-DSNG and DVB-S modulator offered as a circuit card assembly (CCA). It runs at data rates from 1 to 238 Mbps and is capable of CCM, VCM and ACM operation. Selections are available for both 70/140 MHz and L-Band operation with a separate monitor port. The unit is intended for integration into a customer provided chassis for DSNG, enterprise and interactive services. The .08” x 10” x 12” (254 x 305 x 20 mm) card easily fits into a 1RU chassis and consumes less than 30 Watts. Integrators and encoder manufacturers find the DVC240XR ideal for applications where a CCA best suits their needs. It permits simple integration of a modulator into a chassis or combining an encoder and modulator into a single unit.
Features
Circuit Card Assembly
DVB-S2 (EN 302 307) to 45 Msps / 190 Mbps
DVB-S (EN 300 421) to 68 Msps / 119 Mbps
DVB-DSNG (EN 301 210) to 68 Msps / 238 Mbps
CCM, VCM & ACM Support in DVB-S2
QPSK, 8PSK,16-QAM, 16APSK, 32APSK Operation
Frequency-Agile 50 to 90, 100 to 180, and 950 to 2050 MHz
Monitor Port Available
WebBrowser, SNMP or terminal management
Upgrades: Compact Flash or FTP Ethernet
FAST Features upgrades available
BUC 10 MHz available
TX IF |
50 to 90 / 100 to 180 MHz (70/140 MHz) 950 to 2050 MHz L-Band |
|
IF Step Size |
100 Hz |
|
Frequency Stability |
3 ppm |
|
Power Output |
0 to -25 dBm, -20 dB at L-Band monitor |
|
Power Step Size |
0.1 dB |
|
Power Output Accuracy: |
± 1.0 dB over temp / frequency |
|
Power Output Stability |
± 0.5 dB over 24 hours |
|
Carrier Mute |
-55 dB |
|
Spurious |
-55 dBc, In-band -45 dBc, Out-of-band |
|
IF Impedance and Connector |
75 Ohm (70/140 MHz), BNC-F 50 Ohm (L-Band), SMA-F Monitor (L-Band), Type F-F |
|
Return Loss |
13 dB (70/140 MHz) 7 dB (L-Band), monitor not specified |
|
|
1 kHz -73 dBc |
|
Phase Noise |
10 kHz 100 kHz |
-83 dBc -100 dBc |
|
1 MHz |
-120 dBc |
External Reference |
1, 2, 5, 10 MHz better than ±1 ppm, 1.5 to 10 Vp-p, 50 Ohms |
|
Rolloff |
20%, 25% or 35% |
Data Rate In 1 bps Steps |
1 to 238, within symbol rate limit |
Symbol Rate |
1 to 68 Msps |
|
QPSK 1/2, 2/3, 3/4, 5/6, 7/8 |
Code Rates |
8PSK 2/3, 5/6, 8/9 |
Typical Users
Government & Military
Common Applications
Communications atthe-Pause
Communications onthe-Move
Flyaway Communications
Integrated Satellite
Terminal Communications
