SKU
CDM-600L
Comtech EF Data CDM-600L Variable Rate Open Network Satellite Modem is available to buy in increments of 1

Open Network Topology, Variable Data rate from 2.4 Kbps to 20 Mbps

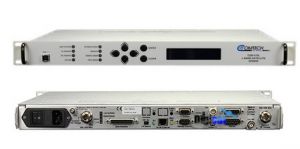

CDM-600L Open Network Satellite Modem

The Comtech CDM-600L is an open network satellite modem, which is fully compliant with IESS-308, -309, -310, -314, and -315.  The 600L series VSAT modem provides variable data rate operation from 64 kbps through T2 and E2.

This modem is available in the following data rate ranges:

  • Low-Rate variable: 2.4 kbps to 5.0 Mbps
  • Mid-Rate variable: 2.4 kbps to 10.0 Mbps
  • High-Rate variable: 2.4 kbps to 20.0 Mbps

Closed Network Configuration

In addition, the 600L series modem operates in closed network from 2.4 kbps to 20 Mbps. The modem includes T1, E1, T2, and E2 G.703 interfaces, in addition to EIA-422, V.35, EIA-232, and serial LVDS. HSSI is provided by adding the CIC-20 interface converter. The architecture is firmware and FPGA-based, and the internal Flash memory allows easy updating via the serial port. This satellite modem offers exceptional flexibility and performance in 1RU enclosures.

Features

  • 950 to 2000 MHz IF range
  • Fast acquisition demodulator (± 32 kHz acquisition range, 64 kbps, Rate 1/2 QPSK: 1 sec average)
  • BPSK, QPSK, OQPSK, 8PSK, 16-QAM modulation types
  • Patented 8-QAM for LDPC
  • Data rate range from 2.4 kbps to 20 Mbps
  • Forward Error Correction choices include Turbo Product Coding (IESS-315 compliant), Viterbi, Sequential, Reed-Solomon, LDPC and TCM
  • Intermediate Data Rate (IDR)
  • Intelsat Business Services
  • D&I++
  • ESC++
  • Automatic Uplink Power Control (AUPC)
  • Embedded Distant-end Monitor and Control (EDMAC)
  • Asymmetric loop timing
  • CDM-600L: transmit 50 ohm, receive 50 or 75 ohm, female Type N connector
  • Open network compatible and backwards compatible with the CDM-500/CDM-550, and CDM-550T
  • Interoperable with SDM-300A, SDM-300L3 (CDM-600L only)
  • 1:1 and 1:10 redundancy switch available

Feature Enhancements

Enhancing the modem’s performance is easy. Additional features are added quickly on site, using FAST access codes purchased from Comtech EF Data. To enable these features, simply enter the code at the front panel.

Turbo Product Coding

The modems offer all traditional FEC methods and incorporate an optional Turbo Product Codec (TPC). TPC is a FEC technique that delivers significant performance improvement when compared to Viterbi with concatenated Reed-Solomon. TPC simultaneously offers increased coding gain, lower decoding delay and significant bandwidth savings.

CDM-600L Outline Dimensions

Dual TPC codecs are offered as hardware options

The Low-Rate TPC codec operates up to 5 Mbps with limited code rates.  The High-Rate TPC codec operates up to 20 Mbps, and offers a full range of code rates (5/16 through 7/8, and 0.95) with all modulation types from BPSK to 16-QAM.

Special features of the modems are their ability to monitor and control the distant end of a satellite link using a Comtech EF Data proprietary overhead channel. This framed mode is called EDMAC. User data is framed and extra bits are added to pass control, status, and Automatic Uplink Power Control information. This process is completely transparent to the user. An RF transceiver (C-Band and Ku-Band) or Block Up Converter at the distant end of a satellite link may be controlled and monitored from the front panel of the modem using a low data rate FSK signal on the RX IF cable via the EDMAC channel.

CDM-600L Specifications

Typical Users

  • • Enterprise
  • • Internet Service Providers
  • • Satellite Service Providers
  • • Offshore & Maritime
  • • Mobile Operators


Common Applications

  • • Mobile Backhaul
  • • Communications on-the-Move
  • • Disaster Recovery & Emergency Communications
  • • Enterprise
  • • Offshore & Maritime Communications
  • • Satellite News Gathering
