CPI SAT C180FM SF Manual Acquisition Flyaway Antenna
Manual assisted satellite acquisition, Compact size enables easy transportation via a single checked bag on an airline or in a backpack for remote field operations

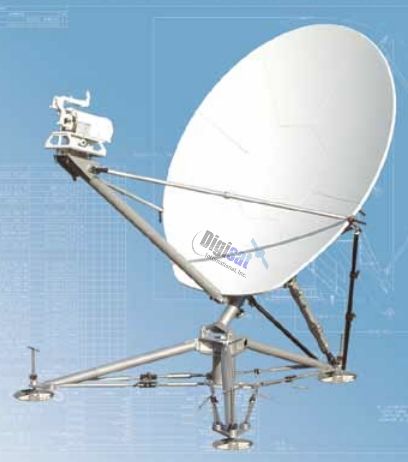

C180FM Manual Point Flyaway Antenna
TheĀ CPI SAT (formerly GD Satcom Technologies & Prodelin) C180FM SF is a super lightweight 1.8-meter antenna that features a rugged design for worldwide transmit and receive operation in C-, Ka-, Ku- and X-band satellite frequencies. This portable terminal consists of a composite reflector and aluminum tripod base mount. This results in a low-weight antenna with superior stiffness and high performance under wind loading conditions.
The unique shape and the accurate reflector surface provide good sidelobe and cross-polarization performance. Repeatability is maintained with precision registration of the nine-piece reflector segments and the feed support structure.
The complete 1.8 meter flyaway antenna, including a single feed, is packaged in multiple portable cases depending on options ordered.
Features
- Carbon fiber composite reflector
- Tripod base mount
- Less than 30-minute setup
- Captive hardware/fasteners
- No tools required
- Quick adjust positioner
- Intelsat/Eutelsat sidelobe compliant (C and Ku-band)
- Feed boom supports up to 40 lbs. for BUC amplifier mounting
- Lightweight transport cases
Military communications, SNG, Remote Internet Access
