TSAT-IBUC2G-X40
Terrasat IBUC 2G X-Band GaN Intelligent Block Upconverter (7.9 - 8.4 GHz) 100W is available to buy in increments of 1

Freq. range 7.90 to 8.40 GHz, IF 950 to 1450 Mhz, Input Connector Type-N female (50 Ohm), RF Output Interface CPR-112G

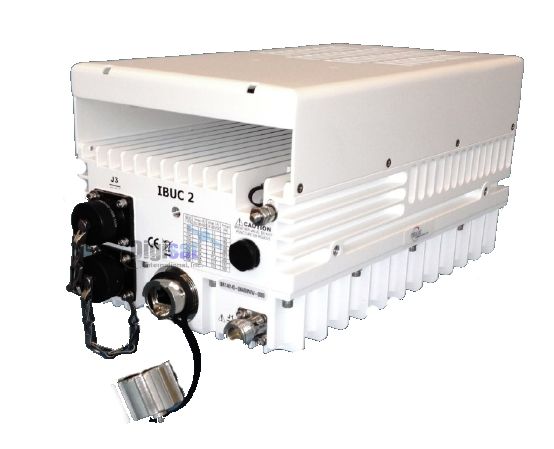

IBUC 2G 100W X-Band Intelligent Block Upconverter

The Terrasat IBUC 2G 100W X-Band GaN is a revolutionary Block Upconverter with advanced features such as a Gallium Nitride amplifier for increased efficiency. Integrated fully automatic gain control and ALC comes standard on all BUCs with all second generation GaN BUCs

The X-Band 100W IBUC 2G Series also provides new interfaces for connecting you to extensive M&C facilities for network management or local access. This powerful M&C enables trouble‐free commissioning with easy, point‐and‐click installation/configuration, continuous verification of performance with time‐stamped alarm history and simplified monitoring of terminal status

IBUC-2G comes with a complete set of diagnostic tools including:

X-Band IBUC 2 Features 10 MHz input detector
X-Band IBUC 2 Features Input voltage and current monitoring
X-Band IBUC 2 Features Transmit L‐band input level detector
X-Band IBUC 2 Features Transmit RF output level detector
X-Band IBUC 2 Features User configurable thresholds and alarms

Unique to the IBUC-2G are internal AGC and ALC functions that satisfy demanding applications with stringent specifications.

Frequency range

RF

IF

 X-Band

7900 to 8400 MHz

 950 to 1450 MHz





Input



VSWR / Impedance

1.5:1 max / 50 Ohm

Input Connector

Type N female (50 Ohm)

Input Connector options

Type F (75 Ohm), TNC (50 Ohm)

Input power detector

-55 to –20 dBm







Gain





Small Signal Gain (L-band to RF) with attenuator set to 0 dB

 100W

81 dB min







Attenuator range

30 dB variable in 0.1 dB steps







Gain flatness





 Full band



3 dB p-p max

 36 MHz



1 dB p-p max

 1 MHz



0.25 dB p-p





Gain variation over temperature



 Open loop



3 dB p-p max

 With AGC



1 dB p-p max







RF Output





Interface

CPR-112G



VSWR

1.3:1 max









Output power 100W





Psat (typ)

+50 dBm



Plin (min)

+47 dBm



 Plin is the maximum linear power as defined by MIL STD 188-164B



Level stability with ALC ±0.5 dB

Output power detector range Rated power to –20 dB

Power reading accuracy ± 1.0 dB max.







Spurious @ Plin





In Band

-65 dBc



Out of Band

 Complies with MIL-STD 188-164B





Harmonics @ Plin

 -60 dBc max.



Output Noise Power Density

 TX

< -77 dBm/Hz



 RX

< -77 dBm/Hz without receive reject filter

All military and government satellite communications systems such as secure gateways, MET Terminals, DKETs, and ARSTRAT certified VSAT terminals
