SKU
TSAT-IBUCG-Ku200
Terrasat IBUC G Series Ku-Band GaN Intelligent Block Upconverter (13.75 - 14.50 GHz) 150W - 200W is available to buy in increments of 1

Freq. range 13.75 to 14.50 GHz, IF 950 to 1700 Mhz, Input Connector Type-N, RF Output Interface WR75

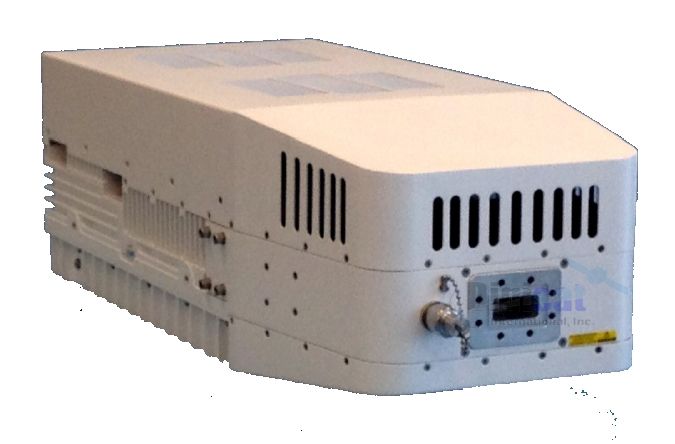

IBUC G Series 150W / 200W Ku-Band Intelligent Block Upconverter

The Terrasat IBUC G Series Ku-Band GaN is a revolutionary Block Upconverter with advanced features such as a Gallium Nitride amplifier for increased efficiency. Integrated fully automatic gain control and ALC comes standard on all BUCs with all second generation GaN BUCs.

The Ku-Band 150W / 200W IBUC G Series also provides new interfaces for connecting you to extensive M&C facilities for network management or local access. This powerful M&C enables trouble‐free commissioning with easy, point‐and‐click installation/configuration, continuous verification of performance with time‐stamped alarm history and simplified monitoring of terminal status.

IBUC-G comes with a complete set of diagnostic tools including:

X-Band IBUC 2 Features 10 MHz input detector
X-Band IBUC 2 Features Input voltage and current monitoring
X-Band IBUC 2 Features Transmit L‐band input level detector
X-Band IBUC 2 Features Transmit RF output level detector
X-Band IBUC 2 Features User configurable thresholds and alarms

Unique to the IBUC-G are internal AGC and ALC functions that satisfy demanding applications with stringent specifications.

Frequency range

RF

IF

 Band 1 Std Ku-Band

14.00 to 14.50 GHz

950 to 1450 MHz

 Band 2 Full Ku-Band

13.75 to 14.50 GHz

950 to 1700 MHz





Input



VSWR / Impedance

1.5:1 max / 50 Ohm

Input Connector

Type N female (50 Ohm)

Input Connector options

Type F (75 Ohm), TNC (50 Ohm)

Input power detector

-55 to –20 dBm







Gain





Small Signal Gain (L-band to RF) with attenuator set to 0 dB

 150W / 200W

83 dB min







Attenuator range

30 dB variable in 0.1 dB steps







Gain flatness





 Full band



4 dB p-p max

 36 MHz



1.5 dB p-p max

 1 MHz



0.25 dB p-p





Gain variation over temperature



 Open loop



3 dB p-p max

 With AGC



1 dB p-p max







RF Output





Interface

WR75 cover with groove

VSWR

1.3:1 max



Output power

150W

200W

Psat (typ)

+51.8 dBm

+53 dBm

Plin (min)

+50 dBm

+51 dBm

 Plin is the maximum linear power as defined by MIL STD 188-164B



Level stability with ALC ±0.5 dB

Output power detector range Rated power to –20 dB

Power reading accuracy ±1.0 dB max.

Spurious @ Plin





In Band

-65 dBc



Out of Band

Complies with EN 301 428/430 and MIL-STD 188-164B

Harmonics @ Plin

 -60 dBc max.

Output Noise Power Density

 TX

< -73 dBm/Hz



 RX

< -145 dBm/Hz




IBUC G Manual

Excellent for mobile applications such as DSNG, Video broadcasting, and mid to large size fixed earth station antennas
