SKU
2410-K
AVL Technologies 2410K 2.4M Motorized Vehicle Mounted SNG Antenna System is available to buy in increments of 1

2.4m, Ka-Band, C-Band, X-Band, Ku-band all in one antenna

2410K Uplink Truck VSAT Antenna

The AVL Technologies 2410K 2.4M Motorized Vehicle Mounted SNG Antenna System is the flagship of the AVL Technologies SNG line of vehicle mounted VSAT antennas. The AVL Technologies 2410K 2.4M Motorized Vehicle Mounted SNG Antenna System is equipped with a highly technical automatic Drive system which enables this antenna to drive to the calculated position based on auto GPS and Flux-Gate Compass data and satellite peaking with LNB signal.

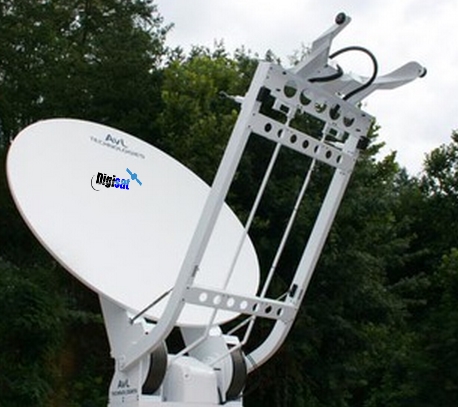

avl 2410k 2.4m vehicle sng antenna

Key Features

 Reflector - 2.4 Meter Carbon Fiber

 Feed - Precision

 Feed Optics - Offset, Prime Focus, .8 F/D

 Az/El Drive System - Patented Roto-Lok Positioner

 Mount Geometry - Elevation over Azimuth

 Polarization Adjustment - Rotation of Feed

Lightweight & Rugged

The ultra-lightweight but rugged, rigid and easily deployed AvL range of motorized auto acquisition flyaway antennas are designed for worldwide operation in C, Ku, X and Ka-band for military and commercial applications. The antennas comprise segmented carbon fiber reflector, AvL AvL Cable Drive cable drive motorized positioner and antenna controller. AvL antennas provide extremely light weight rugged flight case packaged systems with unrivaled stiffness for optimum performance even under high wind load conditions. The prime focus offset optics with global mode matched feed coupled with the excellent profile accuracy and surface accuracy achieved with the unique carbon fiber reflectors result in unrivaled sidelobe and cross polar performance.

Highly Versatile

The palletized C, X, Ku and Ka feed configurations allow quick, easy and precise interchange between frequency bands in the field. The unmatched performance and reliability of the AvL fully motorized positioners employing the zero backlash AvL Cable Drive cable drive system guarantee optimum pointing accuracy and pointing stability. No maintenance is required. These antenna can be deployed by one person in less than 15 minutes and the one button auto acquisition controller locates and precisely aligns the antenna in all three axis (azimuth, elevation AND polarization) to the required satellite.

Multiple Control Systems

2410K Automatic Antenna Controller

Controller options are also available for tracking requirements. The rugged flight cases are designed to provide protection even in the most demanding environments. AvL’s experience with antennas providing reliable operation throughout the world and in the climatic extremes with military, broadcast and disaster relief organizations is second to none.

AVL 2410K Vehicular Mount SNG Antenna System

Reflector

2.4 meter AvL Carbon-Fiber

Feed

Precision Feed

Optics

Offset, Prime Focus, .8 f/d

Az/El Drive System

Patented Roto-Lok Positioner

Mount Geometry

Elevation over Azimuth

Polarization Adjustment

Rotation of Feed


Electrical RF

Frequency
    Receive
    Transmit


10.95-12.75 GHz
13.75-14.5 GHz

Gain (Midband)
    2-port
      Receive
      Transmit
    4-port
      Receive
      Transmit



47.7 dBi
49.3 dBi

47.4 dBi
49.0 dBi

VSWR
    Receive
    Transmit


1.30:1
1.30:1

Beamwidth (degrees)
    -3 dB (Optional Insat)
      Receive
      Transmit
    -15 dB
      Receive
      Transmit



0.73°
0.61°

1.34°
1.41°

First Sidelobe Level (Typical)
    Receive
    Transmit


-22 dB
-25 dB

Radiation Pattern Compliance

FCC §25.209, ITU-R S.528.5

Antenna Noise Temperature

45° K at 10° Elevation

Polarization

Orthogonal std., Optional Co-pol (3-port) & 4-port

Power Handling Capacity

1KW per port

Cross-Pol Isolation
    On-Axis (minimum
      Receive
      Transmit
    Off-Axis (within 1 dB BW)
      Receive
      Transmit



35 dB
35 dB

25 dB
27 dB

Feed Port Isolation - TX to RX

75 dB

Satellite System Compliance

FCC, Intelsat, PanAmSat, SES Americom, etc.


Controllers

Standard

Three-axis Jog Control & Display with Auto-stow


Optional Upgrades



Semi-automatic Operation

Drive to calculated position based on operator entered
vehicle location, heading, plus satellite (longitude or listed)

Automatic Operation

Drive to calculated position based on auto GPS and Flux- Gate Compass data and satellite peaking with LNB signal

Size

Two Rack Units for Semi-automatic & Automatic Controllers Single Rack Unit for Auto-acquisition

Input Power

110/240 VAC, 1 ph, 50/60 Hz, 10/5 A peak, 1A Continous


Mechanical

Az/El Drive System

Patented Roto-Lok® Cable Drive System

Polarization Drive System

Non back-driving Worm Gear

Travel
    Azimuth

    Elevation
      Mechanical
      Electrical
    Polarization



400° with all 2-port and 4-port with HPA(s) on antenna,
270° Standard with 4-port and HPA(s) in Vehicle
True elevation readout from calibrated inclinometer
0° to 90° of Reflector Boresight
Standard limits at 5° to 65° (CE Approval) or 5° to 90°
±95° for 2-port and 3-port Feeds
±50° for 2-port Wideband and 4-port feeds

Speed
    Slewing/Deploying
    Peaking


1°/second
0.1°/second

Motors

24V DC Variable Speed, Constant Torque

RF Interface
    HPA Mounting
    Axis Transition
    Waveguide
    Coax


Feed Boom or Rear of Reflector, or inside Truck
Twist-Flex or Rotary Joints
WR 75 Cover Flange at Interface Point
RG59 run from feed to base plus 25 ft. (8 m)

Electrical Interface

25 ft. (8 m) Cable with Connectors for Controller

Manual Drive

Handcrank on Az and El Axii, Leads from 12VDC Pol Motor

Weight

640 lbs. (290 kg)

Stowed Dimensions

137½ L x 96 W x 23 H inches (349 L x 244 W x 58 H cm)


Environmental

Wind
    Survival
      Deployed
      Stowed
    Operational



70 mph (113 kmph)
100 mph (161 kmph)
45 mph (72 kmph), Gusts to 60 mph (97 kmph)

Pointing Loss in Wind
    20 mph (32 kmph)
    30 Gusting to 45 mph


0.1 dB Typical
0.6 dB Typical

Temperature
    Operational
    Survival


+5° to 125°F (-15° to 52°C)
-40° to 140°F (-40° to 60°C)

News Uplink Trucks, Portable Global Communications, Satellite Broadband Access, Emergency Management Communications
