1660-2020 SNG Global Quad Band VSAT System

AVL Technologies 1660/2020 is a Quad-Band, carbon fiber, portable flyaway satellite communications antenna system that offers operators and broadcasters a wide array of capabilities. The motorized mounting system includes a 2-axis cable drive positioner assembly that's adjustable up to 400 degrees in azimuth, precision segmented reflector and a multiple feed options. Ultra Portability and rugged construction are several of the outstanding features that the 1660/2020 offers.

Key Features

Light Weight FlyAway Antenna

Packs in 3 Cases

Controller Options range from Jog Control to Fully-Automatic Satellite Acquisition

HPA Mounting Options: Back-of-Reflector Mount for Redundant Configurations & Feed-Mounted HPA

Segmented or Solid Carbon: Fiber Reflector

High EIRP: High-Performance and Light-weight

Fully-Compliant for FCC, Intelsat, Panamsat, Eutelsat, Asiasat

Upgradeable to X Band - Ka Band and C Band

Reliable Zero-Backlash AvL Cable Drive Cable Drive Durability in Extreme and Harsh Conditions

Unrivaled Az Range of 400°

Elevation 0-90°, Pol ±95°

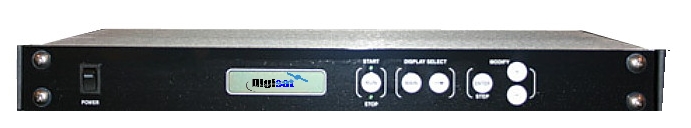

avl flyaway antenna power supply controller

Technical Specifications

Model 1660 / 2020 Flyaway Specifications
Reflector Type	1.60M Four Segment Carbon Fiber
Optics	Offset, Prime Focus, 0.8 F/D
Interchangeable Feeds	C-LP, C-CP, X-CP, Ku-LP, Ka-CP, Ka-LP
Positioner	Case-based Pack-in-the-Box
Az/El Drive System	Patented Roto-Lok Positioner
Mount Geometry	Elevation over Azimuth
Polarization Adjustment	Motorized Rotation of Linear Feeds
Mechanical Specs
Travel Azimuth Elevation (Operational) Polarization (LP Feeds)	±200° 0° to 90° of reflector boresight from calibrated inclinometer ±95°
Speed Slewing/Deploying Peaking	2°/second Az; 1°/second El 0.20°/second
Motors	24V DC variable speed, constant torque
Emergency Axes Drives	Handcranks on Az and El; Knob on Pol
Stowed Configuration	3 rugged, weather-resistant plastic cases, total weight: 450 lbs.
Positioner	26" x 24" x 30", 170 lbs.
Outriggers/Feed Boom/Ku or Ka feed	71" x 18" x 19", 105 lbs. (includes Ku or Ka feed)
Reflector	38" x 38" x 22", 120 lbs.
Additional Feeds	43" x 27" x 20", 70 lbs. typical, dependent on feed options selected

Set-up Time	Typically Less than 15 minutes
RF Interface BUC Mounting Coax	Feed boom or behind reflector (additional case required) Two connectors at positioner base
Environmental
Wind Operational Without Anchoring With Anchoring Survival (Anchored)	30.0 mph 30.0 mph gusting to 45 mph 80.0 mph (With anchoring in zenith stowed position)
Pointing Loss in Wind Ku-Band Rx Ka-Band Rx	0.1 dB typical, 0.5 dB max in operational wind 0.3 dB typical, 1 dB max in operational wind
Temperature Operational Survival	-22° to 125° F (-30° to 52° C) -40° to 140°F (-40° to 60°C)
C-Band (Standard)
Frequency Receive Transmit	3.625-4.20 Ghz 5.85 -6.425 Ghz
Polarization	Linear or circular options
Gain (Midband) Receive Transmit	34.20 dBi 38.10 dBi
VSWR Receive Transmit	1.30:1 1.30:1
Beamwidth (-3 dB) Receive Transmit	3.4° 2.1°
Radiation Pattern Compliance	FCC 25.209, ITU-R S.580-6 IESS 207
Ant. Noise Temp @ 20° El	49° K
G/T with 20°K LNB, Midband, clear horizon	15.8 dB/° K
Circular Axial Ratio (within Pointing Cone) Receive Transmit	2.3 dB 1.3 dB
Linear Cross Pol Isolation (in Ptg. Cone) Receive Transmit	35 dB/30 dB 35 dB/30 dB
Feed Port Isolation - Tx to Rx Receive Transmit	65 dB 105 dB (includes filter)
Power Handling Capability	1000 watts per port
X-Band
Frequency Receive Transmit	7.250 - 7.750 Ghz 7.900 - 8.400 Ghz
Polarization	RHCP or LHCP
Gain (Midband) Receive Transmit	39.75 dBi 40.50 dBi
VSWR Receive Transmit	1.30:1 1.30:1
Beamwidth (-3 dB) Receive Transmit	1.8° 1.6°
Radiation Pattern Compliance	MIL-STD-188-164A
Antenna Noise Temp @ 20° El	45° K
G/T with 55°K LNB, Midband, clear horizon	19.7 dB/° K
Circular Axial Ratio (within Pointing Cone) Receive Transmit	1.21 dB 2 dB
Feed Port Isolation - Tx to Rx Receive Transmit	115 dB (includes optional filter) 115 dB (includes optional filter)
Power Handling Capability	1000 watts per port
Ku-Band
Frequency Receive Transmit	10.950-12.750 Ghz 13.75-14.5 Ghz
Polarization	Orthogonal Linear, Optional Co-pol Linear
Gain (Midband) Receive Transmit	43.7 dBi 45.3 dBi
Antenna Noise Temperature @ 20° El	54° K
G/T with 50°K LNB, Midband	23.5 dB/° K
Radiation Pattern Compliance	FCC 25.209, ITU-R S.580-6, IESS 208
Cross Pol Isolation on-axis Receive Transmit within pointing cone Receive Transmit within pointing cone Receive Transmit	35 dB 35 dB 28 dB standard 30 dB standard 25 dB MM option 35 dB MM option
Power Handling Capability	500 watts per port
Ka-Band
Frequency Range (GHz) Receive Transmit	20.2 - 21.2 (military) or 17.7 - 20.2 (commercial) 30.0 - 31.0 (military) or 27.5 - 30.0 (commercial)
Polarization	Circular or Linear
Gain (Midband military) Receive Transmit	48.9 dBi 52.3 dBi
Ant Noise Temperature @ 20°	107° K
G/T with 100°K LNB, 20.7 GHz	25.3 dB/° K
Radiation Pattern Compliance	FCC 25.209, MIL-STD-188-164A
Axial Ratio (CP only, within pointing cone) Receive Transmit	1.5 dB 1.0 dB
Power Handling Capability	250 watts per port
Control Unit
Auto-Acquisition	Fully Automatic Satellite Acquisition, Peaking, and Cross-Pol Adjustment with GPS, Compass, Level Inputs and auto compensation with Entry of Desired Satellite. Select 10"x9"x2.5" power supply/handheld controller or 1 RU P.S. controller or 2 RU controller option. With 2 RU additional options include inclined orbit tracking, resolvers, hand-held remote, remote GUI, waveguide switch control. A 2 RU jog controller is also offered.
Input Power	95-250VAC auto-ranging or 2 RU option 110/240 VAC, 1 phase, 50/60 Hz, 6/3 A peak, 1 A continuous
Positioning Accuracy	± 0.2°
Input Power	Single phase 110/240 60/50 Hz 10 A peak, 2 A continuous

Applications

Homeland Defense and security, Mobile Satellite News Gathering, Remote Internet Access, Military and Government Communications, Disaster Recovery, Remote Telemedicine
