1260/1050 Multi-Band Portable VSAT Antenna

AVL Technologies 1260-1050 Ultra Portable Tri-Band Flyaway VSAT Antenna System provides easy set up in less than 15 minutes and also offer auto satellite acquisition at the touch of a button. The AVL 1260-1050 Ultra Portable Tri-Band Flyaway VSAT Antenna System is excellent for remote operations that require internet and/or network connectivity. AvL Technologies 1260-1050 PIB F/A

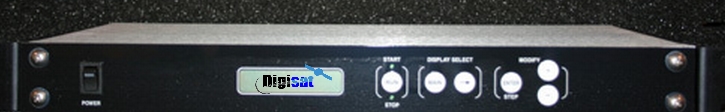

AVL Autopointing 1260/1050 Control Unit

Features

 1.2M Tri-Band Portable Auto-Acquisition Antenna

 Reflector: 1.2 Meter 4 piece Carbon Fiber

 Optics: Offset, Prime Focus, 0.8 f/D

 Interchangeable Feeds: X-CP, Ku-LP, Ka-CP, Ka-LP

 Positioner: Case-based Pack-in-the-Box

 Drive System: Patented Roto-Lok Positioner

 Mount Geometry: Elevation over Azimuth

 Polarization: Rotation of Feed

 Typical broadband satellite internet download speeds of 4 Mbps or higher can be achieved with the 1260-1050.

Model 1260 / 1050 PIB F/A

Reflector Type

1.2 Meter, 4 piece Carbon Fiber

Optics

Offset, Prime Focus, 0.8 F/D

Interchangeable Feeds

X-CP, Ku-LP, Ka-CP, Ka-LP

Positioner

Case-based Pack-in-the-Box

Az/El Drive System

Patented Roto-Lok® Positioner

Mount Geometry

Elevation over Azimuth

Polarization Adjustment

Rotation of Feed


Mechanical

Travel
    Azimuth
    Elevation (Operational)
    Polarization (LP Feeds)


±200°
0°-90° of reflector boresight from calibrated inclinometer
±95°

Speed
    Slewing/Deploying
    Peaking


2°/second Az; 1°/second El
0.2°/second

Motors

24V DC variable speed, constant torque

Emergency Axes Drive

Handcranks on Az and El; Knob on Pol

Stowed Configuration
    Positioner
    Outriggers/Feed Boom/Reflector
    Additional Feeds

Two rugged, weather-resistant plastic cases, total weight: 200 lbs.
23" x 19" x 19", 100 lbs.
30" x 30" X 16", 100 lbs. (includes Ku or Ka feed)
43" x 27" x 20", 70 lbs. typical, dependent on feed options selected

RF Interface
    BUC Mounting
    Coax


Feed boom or behind reflector (additional case required)
Two connectors at positioner base

Electrical

Connector at positioner base

Set-up Time

Less than 15 minutes

Wind
    Operational
      Without anchoring
      With anchoring
    Survival (anchored)



30 mph
30 mph gusting to 45 mph
80 mph in zenith (90° elevation) position

Pointing Loss in wind
    Ku-Band Rx
    Ka-Band Rx


0.1 dB typical, 0.5 dB max
0.3 dB typical, 1.0 dB max

Temperature
    Operational
    Survival


-22° to 125° F (-30° to 52° C)
-40° to 140°F (-40° to 60°C)


X-Band RF

Frequency
    Receive
    Transmit


7.25 - 7.75 Ghz
7.9 - 8.4 Ghz

Polarization

Circular RHCP or LHCP

Gain (Midband)
    Receive
    Transmit


37.6 dBi
38.1 dBi

Antenna Noise Temperature @ 20° El

52° K

G/T with 55°K LNB, Midband clear horizon

17.3 dB/° K

Radiation Pattern Compliance

MIL - STD - 188-164A

Axial Ratio (CP only, within pointing cone)
    Receive
    Transmit


1.21 dB
2.0 dB

Feed Port Isolation - Tx to Rx (dB)
    Receive
    Transmit


115 (includes optional filter)
115 (includes optional filter)

Power Handling Capability

1000 watts per port


Ku-Band RF

Frequency
    Receive
    Transmit


10.95-12.75 Ghz
13.75-14.5 Ghz

Polarization

Orthogonal Linear, Optional Co-pol Linear

Gain (Midband)
    Receive
    Transmit


41.6 dBi
43.1 dBi

Antenna Noise Temperature @ 20° El

54° K

G/T with 50°K LNB, Midband

21.3 dB/° K

Radiation Pattern Compliance

FCC 25.209, ITU-R S.580-6, IESS 208

Cross Pol Isolation
    on-axis
      Receive
      Transmit
    within pointing cone
      Receive
      Transmit
    within pointing cone
      Receive
      Transmit



35 dB
35 dB

28 dB standard
30 dB standard

25 dB MM option
35 dB MM option

Power Handling Capability

500 watts per port

Ka-Band RF

Frequency Range (GHz)
    Receive
    Transmit


20.2 - 21.2 (military) or 17.7 - 20.2 (commercial)
30.0 - 31.0 (military) or 27.5 - 30.0 (commercial)

Polarization

Circular or Linear

Gain (Midband military) (dBi)
    Receive
    Transmit


46.2
49.5

Ant Noise Temperature @ 20° El, midband

107° K

VSWR

1.30:1

Beamwidth (-3 dB)br>     Receive
    Transmit


0.8°
0.6°

G/T with 100° LNB, midband, clear horizon

23.0 dB/° K

Radiation Pattern Compliance

FCC 25.209, MIL-STD-188-164A

Axial Ratio
(CP only, within pointing cone)
    Receive
    Transmit



1.5 dB
1.0 dB

Feed Port Isolation - Tx to Rx (dB)
    Receive
    Transmit


30
80 (includes filter)

Power Handling Capability

250 watts per port


Control Unit

Fully Automatic Satellite Acquisition, Peaking, and Cross-Pol Adjustment with GPS, Compass, Level Inputs and auto compensation with Entry of Desired Satellite. Select 10”x9”x2.5” power supply/handheld controller or 1 RU P.S. controller or 2 RU controller option. With 2 RU additional options include inclined orbit tracking, resolvers, hand-held remote, remote GUI, waveguide switch control. A 2 RU jog controller is also offered. Contact Digisat for a list of options.

Positioning Accuracy

± 0.2°

Input Power

95-250VAC auto-ranging or 2 RU option 110/240 VAC, 1 phase, 50/60 Hz, 6/3 A peak, 1 A continuous

Mobile Satellite News Gathering, Remote Internet Access, Military and Government Communications, Disaster Recovery
