AVL 2060/1220 Motorized Tri-Band Auto Acquisition Flyaway VSAT Antenna System
Intelsat, Panamsat, Eutelsat and Asiasat approved, Ideal for SNG applications
2060-1220 2.0 Meter Multi-Band VSAT Flyaway
The ultra-lightweight but rugged, rigid and easily deployed AvL 2060 / 1220 motorized auto acquisition flyaway antennas are designed for worldwide operation in C, Ku, X and Ka-band for military and commercial applications. The antennas comprise segmented carbon fiber reflector, AvL Cable Drive cable drive motorized positioner and antenna controller.
Rugged Reliability
AvL antennas provide extremely light weight rugged flight case packaged systems with unrivaled stiffness for optimum performance even under high wind load conditions. The prime focus offset optics with global mode matched feed coupled with the excellent profile accuracy and surface accuracy achieved with the unique carbon fiber reflectors result in unrivaled sidelobe and cross polar performance.
Quick Configuration
The palletized C, X, Ka-Band and Ku feed configurations allow quick, easy and precise interchange between frequency bands in the field. The unmatched performance and reliability of the AvL fully motorized positioners employing the zero backlash AvL Cable Drive cable drive system guarantee optimum pointing accuracy and pointing stability. No maintenance is required. These antennas can be deployed by one person in less than 15 minutes and the one button auto acquisition controller locates and precisely aligns the antenna in all three axis (azimuth, elevation AND polarization) to the required satellite.
ACU Tracking
Controller options are also available for tracking requirements. The rugged flight cases are designed to provide protection even in the most demanding environments. AvL’s experience with antennas providing reliable operation throughout the world and in the climatic extremes with military, broadcast and disaster relief organizations is second to none.
AVL 2060/1220 Features
2.0 Meter reflector
Autopointing at the touch of a button
Interchangeable feeds: C-Band, X-Band and KU-Band
Segmented precision carbon fiber reflector
AVL Model 2060 / 2020 Fly-Away Antenna |
|
|
Reflector Type |
2.0M 9 segment AvL carbon fiber |
|
Optics |
Offset, Prime Focus, 0.8 F/D |
|
Interchangeable Feeds |
C LP or CP, X CP, Ku LP, Ka LP or CP |
|
Positioner |
Case-based Pack-in-the-Box |
|
Az/El Drive System |
Patented Roto-Lok® Positioner |
|
Mount Geometry |
Elevation over Azimuth |
|
Polarization Adjustment |
Motorized Rotation of Linear Feeds |
Mechanical |
|
|
Travel |
|
|
Speed |
|
|
Emergency Drive |
Hand crank on Az, El; hand knob on Pol |
|
Interfaces |
|
|
Set-up Time |
Less than 30 minutes |
Environmental |
|
|
Wind |
|
|
Pointing Loss |
1 dB typical, 2 dB max in operational wind (Ku-band) |
|
Temperature |
|

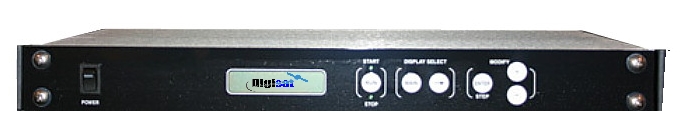

Antenna Controller |
|
|
Auto-Acquisition |
One-button deploy with auto acquisition, peaking, and cross-pol adjustment using GPS, compass, and level-sensor inputs; certified for auto-commission on certain satellite systems |
|
Tracking |
Inclined orbit step-tracking with CFE or optional beacon receiver |
|
Operator Interface |
Front panel or Hand Held Remote or Remote PC options |
|
Positioning Accuracy |
± 0.2° |
|
Input Power |
Single phase 110/240 60/50 Hz 10 A peak, 2 A continuous |
C-Band |
|
|
Frequency |
|
|
Polarization |
Linear or circular options |
|
Gain (Midband) |
|
|
Antenna Noise Temperature @ 20° El |
49° K |
|
G/T with 20°K LNB, Midband |
17.9 dB/° K |
|
Radiation Pattern Compliance |
IESS-601 and FCC 47CFR25.209 |
|
Circular Axial Ratio |
|
|
Linear Cross Pol Isolation |
|
|
Power Handling Capability |
1000 watts per port |
X-Band Milsatcom Feeds |
|
|
Frequency |
|
|
Polarization |
Circular RHCP or LHCP |
|
Gain (Midband) |
|
|
Antenna Noise Temperature @ 20° El |
50° K |
|
G/T with 55°K LNB, Midband |
21.7 dB/° K |
|
Radiation Pattern Compliance |
MIL - STD - 188-164A |
|
Axial Ratio within Tracking Cone |
|
|
Power Handling Capability |
1000 watts per port |
Ku-Band SNG |
|
|
Frequency |
|
|
Polarization |
Orthogonal Linear, Optional Co-pol Linear |
|
Gain (Midband) |
|
|
Antenna Noise Temperature @ 20° El |
57° K |
|
G/T with 50°K LNB, Midband |
25.7 dB/° K |
|
Radiation Pattern Compliance |
IESS-601 Std. G and FCC 47CFR25.209 |
|
Power Handling Capability |
500 watts per port |
Ka-Band Broadband |
|
|
Polarization |
Circular or Linear |
|
Frequency Range (GHz) |
|
|
Gain (Midband military) (dBi) |
|
|
VSWR |
1.30:1 |
|
Beamwidth (-3 dB) |
|
|
Radiation Pattern Compliance |
FCC 25.209, MIL-STD-188-164A |
|
Ant Noise Temperature @ 20° El, midband |
106° K |
|
G/T with 100° LNB, midband, clear horizon |
27.5 dB/° K |
|
Axial Ratio |
|
|
Feed Port Isolation - TX to RX (dB) |
|
|
Power Handling Capability |
250 watts per port |
Remote Telecommunications, Video Content Delivery, Data Communications, Law Enforcement Comms
