AVL 2010C C-Band Vehicular Mounted SNG VSAT Antenna System
Intelsat, Panamsat, Eutelsat and Asiasat approved, Ideal for Ku-Band uplink trucks, VSAT trailers and remote internet access applications
2010 C-Band Uplink Truck VSAT
AVL 2010C Motorized C-Band Vehicular Mounted SNG VSAT Antenna is built using a state of the art and rugged one piece light weight carbon fiber reflector. The 2010C Vehicle mount antenna is also available with custom option such as a standard or wideband feed.
Main Features
Reflector- 2.0 meter AvL Carbon Fiber
Feed- Standard or Wideband Optics Offset, Prime Focus, .6 f/d
Az/El Drive System- Patented Roto-Lok Positioner
Mount Geometry- Elevation over Azimuth
Polarization Adjustment- Rotation of Feed
Auto-Pointing Control
Electrical RF |
Receive |
Transmit |
|
|
Frequency |
3.625 - 4.2 GHz |
5.850 - 6.425 GHz |
|
|
Optional Insat |
4.5 - 4.8 GHz |
6.725 – 7.025 GHz |
|
|
Gain (Midband) 2-port |
36.3 dBi |
40.1 dBi |
|
|
VSWR |
1.30:1 |
1.30:1 |
|
|
Beamwidth (degrees) -3 dB |
2.5 |
1.7 |
|
|
-10 dB |
4.8 |
3.2 |
|
|
First Sidelobe Level (Typical) |
-20 dB |
-23 dB |
|
|
Radiation Pattern Transmit – 1.8°to 30° |
|
29-25 Log Ø |
|
|
Receive – 2.7° to 30° |
32-25 Log Ø |
|
|
|
Antenna Noise Temperature |
48° K at 10° Elevation |
||
|
Polarization |
Linear standard, Optional Circular |
||
|
Power Handling Capability |
0.5KW per port |
||
|
Cross-Pol Isolation – On-axis Linear |
35 dB |
35 dB |
|
|
Circular |
19 dB |
25 dB |
|
|
Feed Port Isolation – TX to RX |
70 dB |
||
|
Satellite System Compliance |
Compatible for 2º Spacing |
||

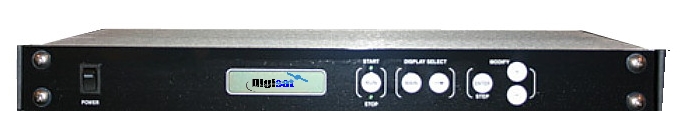

Controllers |
|
||
|
Standard |
Three-axis Jog Control & Display with Auto-stow |
||
|
Optional Upgrades Semi-automatic Operation |
Drive to calculated position based on operator entered vehicle |
||
|
|
location, heading, plus satellite (longitude or listed) |
||
|
Automatic Operation |
Drive to calculated position based on auto GPS and Flux-Gate |
||
|
|
Compass data and satellite peaking with LNB signal |
||
|
Auto-acquisition |
One-button acquisition of selected satellite including peaking |
||
|
|
and optimization of cross-pol (certified for auto- |
||
|
|
commissioning on select services) |
||
|
Size |
Two Rack Units for Semi-automatic & Automatic Controllers |
||
|
Input Power |
110/240 VAC, 1 ph, 50/60 Hz, 9/5 amps peak, 1A cont. |
||
Mechanical |
|
|
|
Az/El Drive System |
Patented Roto-Lok® Cable Drive System |
|
|
Polarization Drive System |
Non back-driving Worm Gear |
|
|
Travel Azimuth |
270° Standard, |
|
|
|
400° Optional for 2-port or Feed Boom Mounted HPA |
|
|
Elevation |
True elevation readout from calibrated inclinometer |
|
|
Mechanical |
0° to 90° of Reflector Boresight |
|
|
Electrical |
Standard limits at 5° to 65° (CE Approval) or 5° to 90° |
|
|
Polarization |
±95° for 2-port and 3-port Feeds |
|
|
Speed Slewing/Deploying |
2°/second |
|
|
Peaking |
0.2°/second |
|
|
Motors |
24V DC Variable Speed, Constant Torque |
|
|
RF Interface HPA Mounting |
Feed Boom, Rear of Reflector or Inside Truck |
|
|
Axis Transition |
Rotary Joints in Az and El, Flex in Pol |
|
|
Waveguide |
WR 137 Cover Flange at Interface Point |
|
|
Coax |
RG59 run from feed to base plus 25 ft. (8 m) |
|
|
Electrical Interface |
25 ft. (8 m) Cable with Connectors for Controller |
|
|
Manual Drive |
Handcrank on Az and El Axii, Leads from 12VDC Pol Motor |
|
|
Weight |
300 lbs. (136 kg) |
|
|
Stowed Dimensions |
103½ L x 80 W x 20 H inches (263 L x 203 W x 51 H cm) |
|
Environmental |
|
|
|
Wind |
|
|
|
Survival |
|
|
|
Deployed |
60 mph (121 kmph) |
|
|
Stowed |
100 mph (161 kmph) |
|
|
Operational |
45 mph (72 kmph), Gusts to 60 mph (97 kmph) |
|
|
Pointing Loss in Wind 20 mph (32 kmph) |
0.05 dB max |
|
|
30 Gusting to 45 mph (48 to 72 kmph) |
0.2 dB max |
|
|
Temperature Operational |
+5° to 125°F (-15° to 52° C) |
|
|
Survival |
-40° to 140°F (-40° to 60° C) |
|
Satellite News Gathering, Internet Access, Government Satcom, Disaster Restoral Services, Tele-medicine
