Login To See Price
SKU
ASC-5.6m
ASC Signal 5.6 Meter Ka-band Tx/Rx Earth Station Antenna is available to buy in increments of 1

Rugged aluminum and steel construction provides high winds survival in any stationary position, 3 year warranty on all structural components

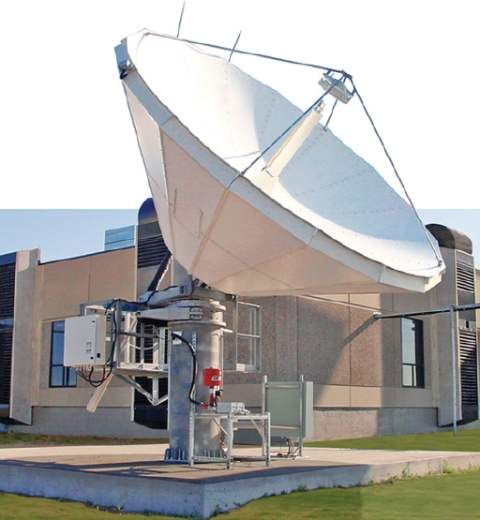

5.6 Meter Ka-Band Antenna

The ASC Signal 5.6 Ka-band earth station antenna features Gregorian ptics and a fully shaped main reflector. This configuration provides excellent pattern characteristics, high gain and superior pointing accuracy. The unique design of the 5.6 meter Ka-band pedestal eliminates the need for critical foundation orientation.

Precision Pedestal

Each pedestal is engineered with self aligning bearings of the elevation pivots. In addition, azimuth/elevation anti-backlash ball jacks are incorporated to provide smooth positioning of the antenna. A large equipment enclosure with door is located on the pedestal and allows hub mounting of electronic systems. The ASC Signal 5.6 meter Ka-band antenna is backed by a three year warranty on all structural components.

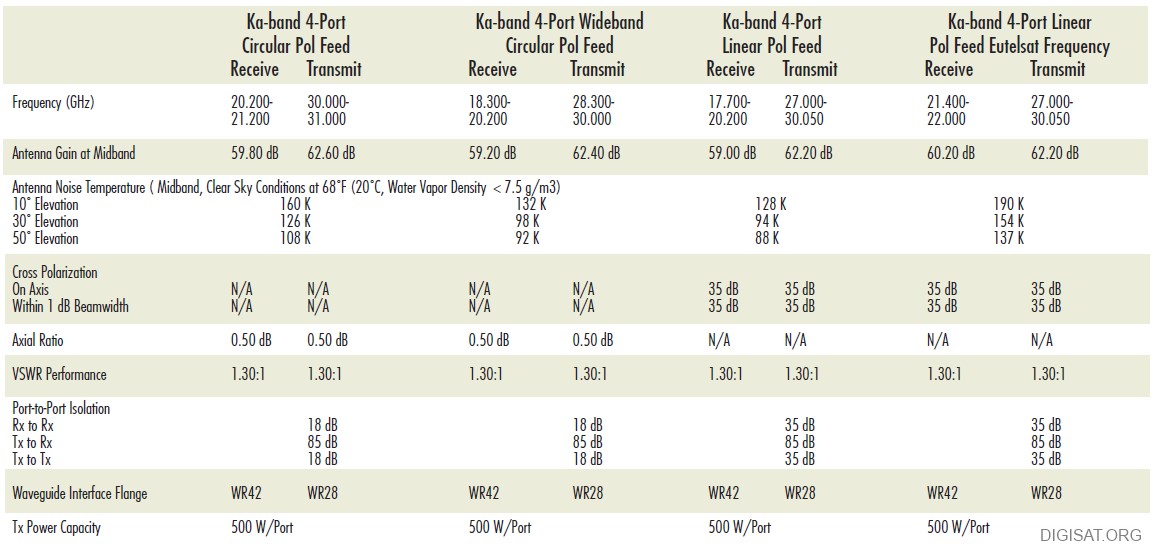

5.6M Ka-Band Antenna Specifications

All Ka-Band transmit and receive applications, Ka Broadband Gateways
