Agilis Satcom ALB110 5 Watt Compact Ka-Band Block Upconverter
Frequencies from 29.00 to 30.00 GHz, 950 to 1950 MHz L-Band Input

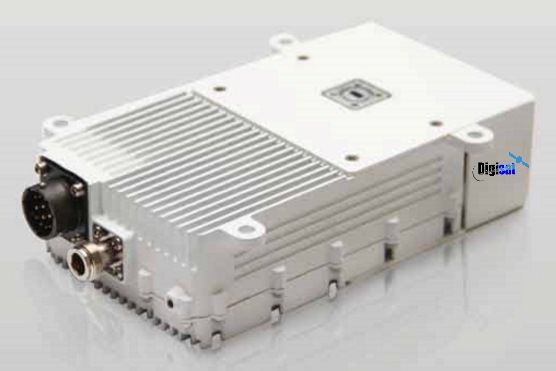

ALB110 5W Ka-Band BUC
Agilis Satcom ALB110 5 Watt Compact Ka-Band Block Upconverter (BUC) provides amplification of Ka-Band frequencies from 29.00 to 30.00 Ghz for satellite uplink applications.
RF Input
The ALB110 Ka-Band 5W BUC supports IF frequencies from 950 to 1950 MHz with a local oscillator frequency of 28.05 Ghz, and power output of 33 dBm.
Features
Excellent Linearity
Extremely Reliable
High power efficiency
Excellent phase noise characteristics
Low spurious
Forward power detection function
Remote monitor & control through RS232/RS485 and Ethernet (SNMP & HTTP)
Wide input DC Voltage range
Automatic fault identification & alarm generation
Automatic Temperature compensation feature
Redundancy option
Wide operating temperature range -40 to +60 deg C
RoHS compliant
Waterproof
LED indicator for BUC status
Ka-band Broadband Internet Access, O3B Network operation, Inmarsat Global Express Systems and more
