Adtec Digital Soloist HD Pro MPEG-2 1080i Decoder

SKU
SLT-HD-P
Adtec Digital Soloist HD Pro MPEG-2 1080i Decoder is available to buy in increments of 1

MPEG-2 Broadcast Quality 1080i Decoding

Soloist-HD Pro MPEG-2 Video Decoder

This product has reached end of life and is no longer available. Please contact us for a suitable replacement.

The sophisticated Soloist-HD Pro is a broadcast quality, performance grade High Definition MPEG 2 and AVC decoding system. Multi-CODEC decoder operation has never been easier or more reliable. The Soloist-HD Pro supports GIGE and Hard Drive Transport Stream decoding. Video outputs include D1(composite) with HD-SDI with embedded audio.

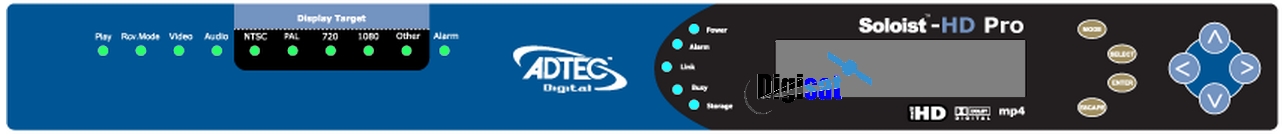

Adtec Soloist HD Pro Decoder Front Panel Diagram

Decoding Flexibility

Decode MPEG 2 SD 422, HD 420, AVC SD and HD video. Audio decoding includes a single stereo channel of Dolby Digital, Dolby 5.1*, MPEG 1 Layer 2 and AAC-LC audio. Output broadcast quality video with embedded stereo audio on the HD-SDI interface.

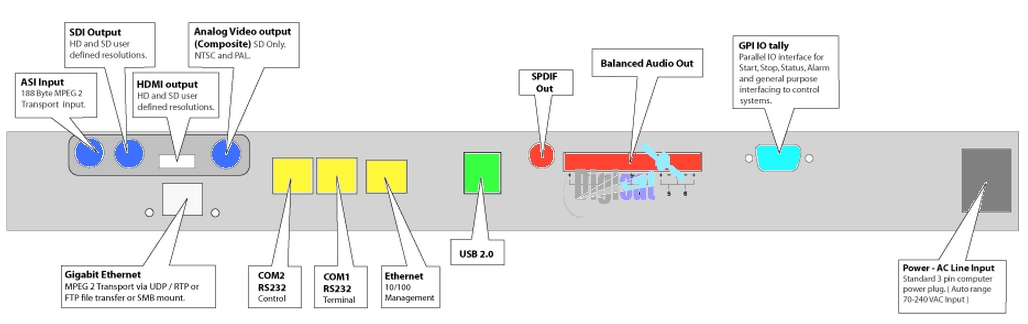

Adtec Soloist HD Video Signal Interface

Legacy Support

Composite D1 video and balanced analog audio are also supported for legacy NTSC or PAL environments. The decoder can down convert HD 1080i or 720 P to Composite or SDI.

Transport

ISO13818-1 188 Byte Transport Stream Sources ASI, GIGE, Hard Drive


Resolutions

Standard Definition (SD)NTSC, PALHigh Definition (HD)720P 60/50, 1080i 60/50Decode Up and Down conversion SD to and from HD Video Aspect Format Auto, 4x3 or 16x9


Video Interfaces

SDI, SMPTE 259M (SD) HDSDI, SMPTE 292M (HD)HDMI with HDCP


Standard Definition (SD) Decode

MPEG 2 SDMP@ML up to 15 Mbs MPEG 2 SD422P@ML up to 50 Mbs AVC/H.264MP@L3.1 up to 10 Mbs


High Definition (HD) Decode

MPEG 2 HDMP@HL up to 60 Mbs AVC/H.264 HDMP@L4.1 and HP@L4.1 up to 20 Mbs


Audio Interfaces

SDI Embedded stereo audio pair per SMPTE 272M (SD) or SMPTE 299M (HD) based on target video resolution, Analog audio on balanced stereo 5 Pin RST HDMI Audio Outputs, simultaneous embedding on HDSDI, HDMI and Analog balanced output


Audio Decode

Dolby Digital AC-3Bit rates up to 640kbps. Sample rates of 32, 44.1 and 48KHz. Multi-channel 5.1 downmix.MPEG 1 and MPEG 2 Layer I, II and III (MP3) 2.0Bit rates up to 448kbps (Layer I), 384kbps (Layer II) or 320kbps (Layer III).
Sample rates of 16, 22.05, 24, 32, 44.1 and 48KHz.
Single channel, dual channel, joint stereo and stereo modes.

AAC-LC MPEG-2 and MPEG-4Bit rates up to 384kbps.
Sample rates of 7.35, 8, 11.025, 12, 16, 22.05, 24, 32, 44.1 and 48KHz.


Host Platform

Storage160GB hard drive Embedded Linux real time operating systemPower70-240 VAC 50-60Hz and 65 Watts (20 Watts typical)Size1RU rack mount chassis. 19in. wide, 1.75in. high, 10in. deepWeight8 lbs (3.6 Kg)Environmental Active cooling (Fans)
0 to 90 Degrees Fahrenheit
Less than 70% RH
Non-Condensing


Communications and Control

Ethernet 10/100GIGEEthernet Protocols HTTP, Telnet, FTP, UDP/RTP, NTP Serial Communications2-RS232 (38400-115,200K, 8, 1 N)


Front Panel

Keypad Mode, Select, Enter, Escape, Up, Down, Left, Right Blue Translucent LCD(20 characters by 2 rows)Host Status LEDs Power, Alarm, Link, Busy, Storage. Status LEDs Play, Mulitcast, Video, Audio, Resolution, Alarm

MPEG-2 and 1080i Video Signal Decoding
